HDMI OVER CAT5/CAT6 EXTENDER WALLPLATE KIT TRANSMITTER/RECIEVER

SKU: U06543VPN: P167-000

In Stock

$89.54

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends a 1080p (24Hz) or 1080i (60Hz) signal up to 150 ft. using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N222-Series, or N224-Series )
Extends a 3D signal up to 100 ft. using 24Awg, Solid Wire Cat6 cabling
Supports 24-bit True Color (8-bits per channel)
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
No external power required
*When using Cat5 cable, the maximum extension distance is reduced by 50 ft.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

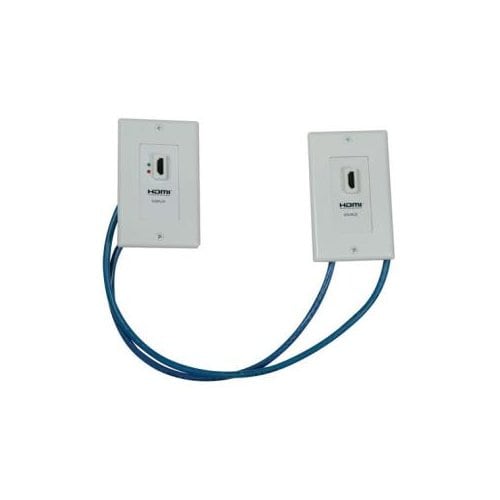

With Tripp Lites HDMI Over Cat5/Cat6 Wallplate Extender Kit, you can locate a HDMI enabled display up to 230 ft. away from the HDMI source, using readily available Cat5 or Cat6 UTP cable (for best performance, use Solid wire Cat6). The kit consists of a Passive wallplate at the source side, and an Active wallplate (with built-in signal regenerator) at the display side. Simply run two Cat5/6 UTP cables between the two wallplates, and plug in standard Tripp Lite HDMI patch cables to the HDMI source and the display. The Green LED on the Display wallplate lets you know that power and a signal are coming from a connected source. The Red LED indicates only a signal is being received. The kit is functioning properly when the unit is connected to a display and the Green LED is lit.

Tech Specs

HDMI OVER CAT5/CAT6 EXTENDER WALLPLATE KIT TRANSMITTER/RECIEVER specifications
Features	<ul><li>Locate your HDMI display screen up to 230 ft. away from the HDMI source</li><li>Uses ordinary Cat5 or Cat6 cable</li><li>HDMI v1.3 and HDCP compliant</li></ul>
Brand Name	Tripp Lite series
Mount Type	Wall Mount
Manufacturer	Eaton Corporation
Product Name	Cat5 Digital Audio/Video Faceplate
Product Type	Faceplate
Product Model	P167-000
TAA Compliant	Yes
Package Contents	<ul><li>Cat5 Digital Audio/Video Faceplate</li><li>HDMI Passive Wallplate (video source side)</li><li>HDMI Active Wallplate with Signal Regenerator (display side)</li><li>UTP Stripper/Punch Down Tool</li></ul>
Country of Origin	Taiwan
Packaged Quantity	2
Manufacturer Part Number	P167-000
