ATEN TECHNOLOGIES

HDMI HDBASET LITE EXTENDER UP TO 230FT RECEIVER

SKU: ZM2000VPN: VE801R

HDMI HDBASET LITE EXTENDER UP TO 230FT RECEIVER

Key Features

  • Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
  • Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • Plug-and-play
  • Rack-mountable
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

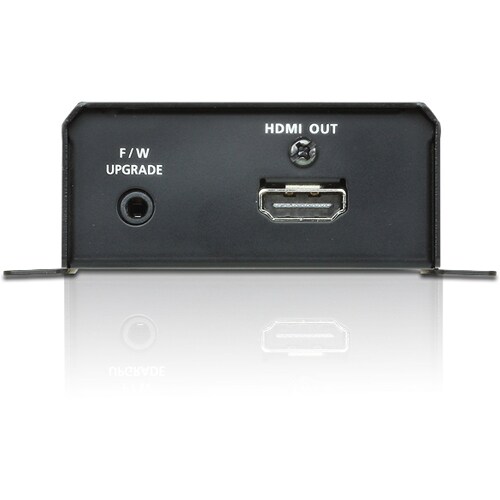

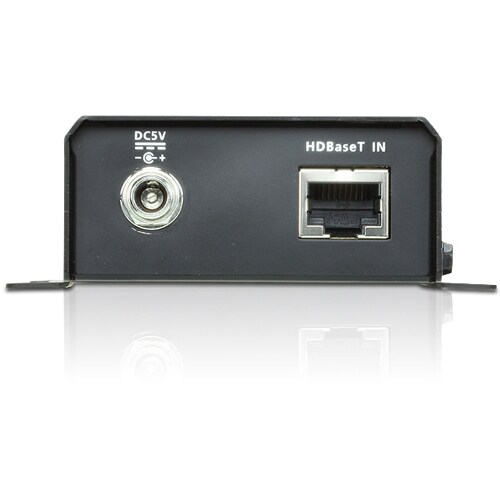

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

Tech Specs

HDMI HDBASET LITE EXTENDER UP TO 230FT RECEIVER specifications
HDMI OutYes
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology, Inc
Product LineVanCryst
Product NameHDMI HDBaseT-Lite Receiver (HDBaseT Class B)
Product TypeVideo Extender Receiver
Input Voltage5 V DC
Product ModelVE801R
Graphics Modes4K
Product FamilyVanCryst
Receiver Depth3.88"
Show all 30 specs
Receiver Width3.43"
Network (RJ-45)Yes
Receiver Height1.18"
Package Contents<ul><li>VE801R HDMI HDBaseT-Lite Extender</li><li>1 x Power Adapters</li><li>1 x User Instructions</li></ul>
Product MaterialMetal
Country of OriginTaiwan
Media Type SupportedTwisted Pair
Number of HDMI Outputs1
Connectivity TechnologyWired
Environmentally FriendlyYes
Manufacturer Part NumberVE801R
Maximum Video Resolution4096 x 2160
Maximum Operating Distance70.87"
Twisted Pair Cable StandardCategory 6a
Manufacturer Website Addresshttp://www.aten.com/us/en/
Receiver Weight (Approximate)8.47 oz
Number of Network (RJ-45) Ports2
Number of Output Devices Supported1
