STARTECH.COM

HARD DRIVE BAY MOBILE RACK 3.5 SATA SAS HDD TRAYLESS HOT SWAP

SKU: UN5092VPN: HSB3SATSASBA

HARD DRIVE BAY MOBILE RACK 3.5 SATA SAS HDD TRAYLESS HOT SWAP

Key Features

  • Solid aluminum construction
  • Key lock design
  • Built-in fan
  • 3 drive bay design
  • Installs in two 5.25" drive bays
  • Trayless design for hot swap support
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Support for SAS revision I/II (3.0/6.0 Gbps)
  • UL VO flammability rating
  • Power and Activity LEDs for each drive
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

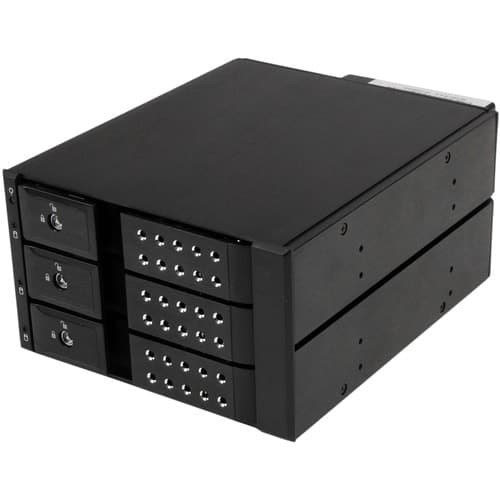

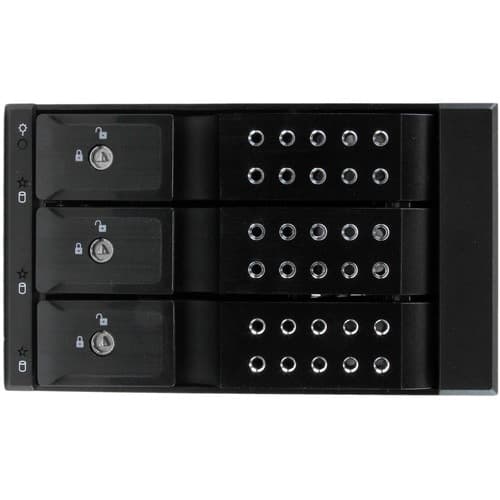

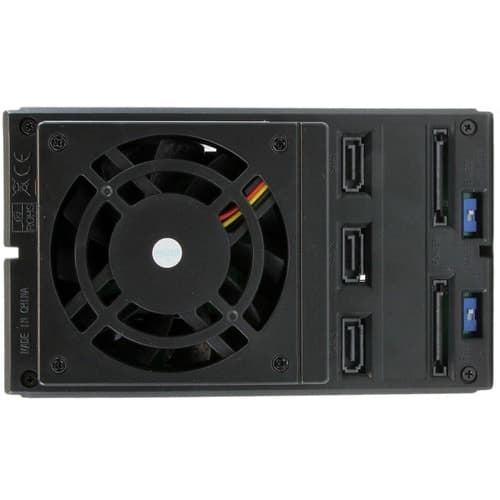

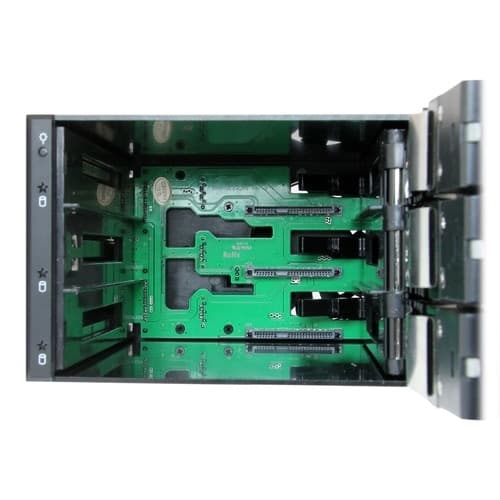

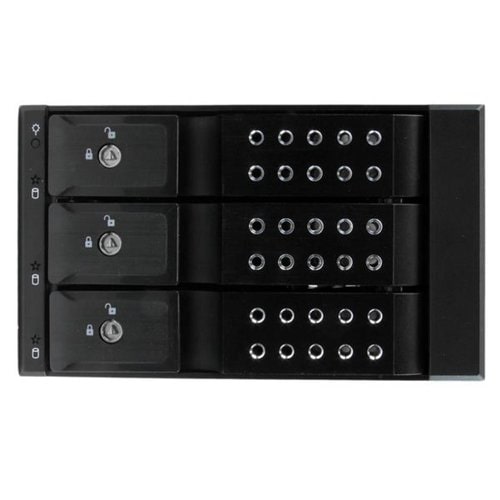

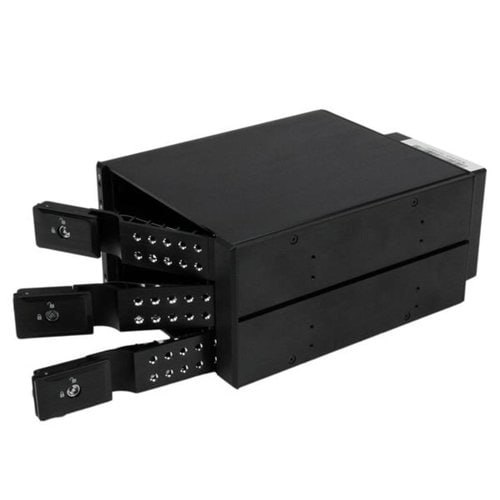

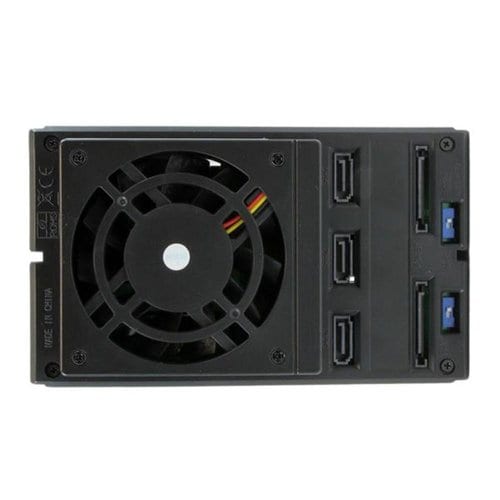

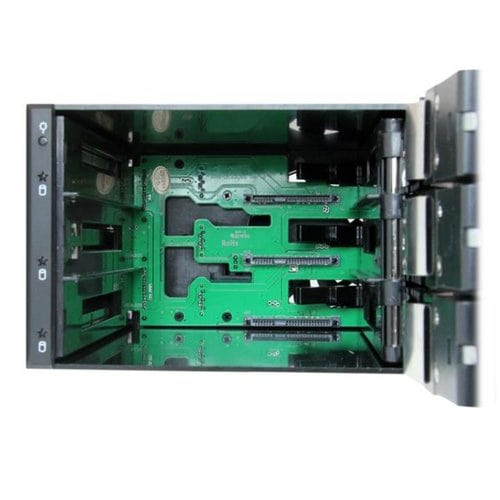

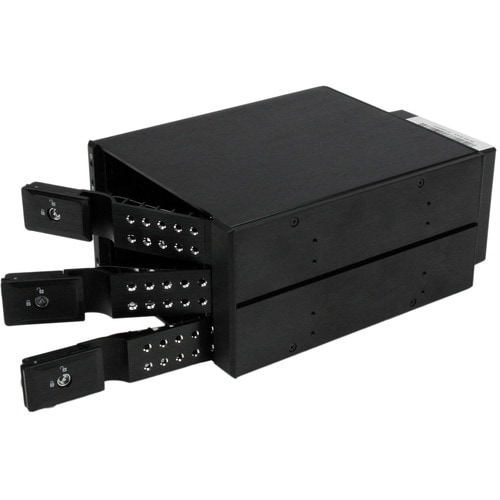

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

HARD DRIVE BAY MOBILE RACK 3.5 SATA SAS HDD TRAYLESS HOT SWAP specifications
Depth7.6"
Width5.7"
Height4.3"
Brand NameStarTech.com
Cooling FanYes
Form FactorInternal
Color FamilyBlack
ManufacturerStarTech.com
Product Name3 SATA HDD Backplane
Product TypeDrive Enclosure
Wireless LANNo
Product ColorBlack
Show all 30 specs
Host InterfaceSerial ATA/600
Drive InterfaceSerial Attached SCSI (SAS)
Network (RJ-45)No
Package Contents<ul> <li>3 SATA HDD Backplane</li> <li>1 x Installation Screw Kit </li> <li>1 x Instruction Manual </li> <li>2 x Bay Key s</li> <li>3 x 18" SATA Cables</li> </ul>
Product MaterialAluminum
Country of OriginChina
Packaged Quantity1 Each
Number of 3.5" Bays3
Weight (Approximate)2.70 lb
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberHSB3SATSASBA
Compatible Drive Bay Width5.25"
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Total Expansion Bays3
Number of Hard Drives InstalledNo
Number of Hard Drives Supported3
