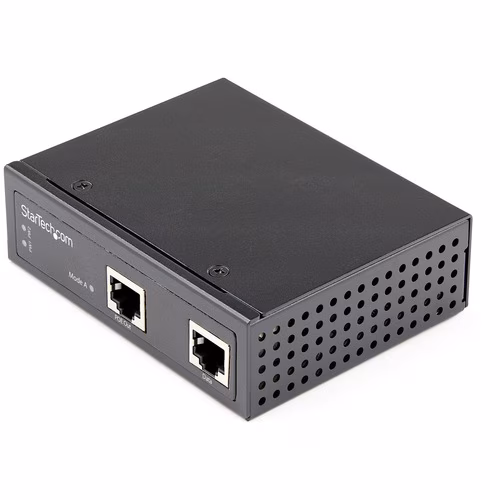

GIGABIT ETHERNET POE INJECTOR INDUSTRIAL POWER OVER ETHERNET

SKU: 8NT074VPN: POEINJ30W

In Stock

$46.40

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
TECH SPECS: 1 Gbps
48V-56VDC input
IEEE 802.3af / IEEE 802.3at (30W)
10/100/1000 Mbps auto negotiation
Link fault passthrough (LFP)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

GIGABIT ETHERNET POE INJECTOR INDUSTRIAL POWER OVER ETHERNET specifications
Brand Name	StarTech.com
Form Factor	DIN Rail/Wall Mountable
Input Ports	1 x Fast Ethernet
Color Family	Black
Manufacturer	StarTech.com
Output Ports	1 x PoE+
Product Name	POEINJ30W PoE Injector
Product Type	PoE Injector
Input Voltage	56 V DC
Product Color	Black
Product Model	POEINJ30W
Protection Type	Overload Protection

Show all 20 specs

Package Contents	<ul> <li>POEINJ30W PoE Injector</li> <li>Mounting Hardware Kit</li> <li>Quick-Start Guide</li> <li>Terminal Block to Barrel Power Connector Adapter</li> <li>Terminal Block</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	POEINJ30W
Certifications & Standards	<ul> <li>IEEE 802.3</li> <li>IEEE 802.3u</li> <li>IEEE 802.3ab</li> <li>IEEE 802.3af</li> <li>IEEE 802.3at</li> <li>IEC 61000-4-2</li> <li>IEC 61000-4-4</li> <li>IEC 61000-4-5</li> <li>EN 60068-2-6</li> <li>EN 60068-2-32</li> <li>MET (UL) 60950-1</li> <li>EN60950-1</li> </ul>
Manufacturer Website Address	http://www.startech.com
