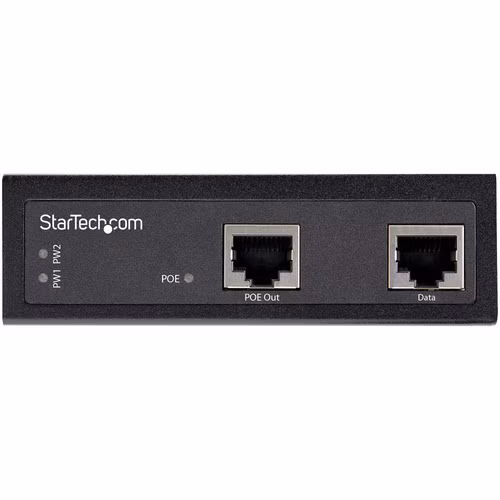

GIGABIT ETHERNET POE INJECTOR INDUSTRIAL POWER OVER ETHERNET

SKU: 8NT073VPN: POEINJ1G90W

In Stock

$234.71$215.30

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input
ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.Flexible Configurations for a Variety of ApplicationsCompatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.90 Watt Power BudgetAs many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.Vibration: EN 60068-2-6Shock: EN 60068-2-27Free-fall: EN 60068-2-32500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Tech Specs

GIGABIT ETHERNET POE INJECTOR INDUSTRIAL POWER OVER ETHERNET specifications
Width	1.3"
Height	4.1"
Length	3.2"
Brand Name	StarTech.com
Form Factor	DIN Rail/Wall Mountable
Input Ports	1 x Gigabit Ethernet
Color Family	Black
Manufacturer	StarTech.com
Output Ports	1 x PoE+
Product Name	POEINJ1G90W PoE Injector
Product Type	PoE Injector
Input Voltage	56 V DC

Show all 30 specs

Product Color	Black
Product Model	POEINJ1G90W
WEEE Statement	https://media.startech.com/cms/pdfs/poeinj1g90w_weee.pdf
Protection Type	Surge Protection
Package Contents	<ul> <li>POEINJ1G90W PoE Injector</li> <li>Mounting Hardware Kit</li> <li>Quick-Start Guide</li> <li>Terminal Block</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
REACH free of SVHC	Yes
Weight (Approximate)	6.14 oz
REACH Declaration URL	https://media.startech.com/cms/pdfs/poeinj1g90w_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/poeinj1g90w_rohs.pdf
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly	Yes
Manufacturer Part Number	POEINJ1G90W
Certifications & Standards	<ul> <li>IEEE 802.3</li> <li>IEEE 802.3u</li> <li>IEEE 802.3ab</li> <li>IEEE 802.3at</li> <li>IEEE 802.3af</li> <li>IEEE 802.3bt</li> <li>IEC 61000-4-2</li> <li>IEC 61000-4-4</li> <li>IEC 61000-4-5</li> <li>EN60950-1</li> <li>IP-30</li> <li>EN 60068-2-6</li> <li>EN 60068-2-27</li> <li>EN 60068-2-32</li> </ul>
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
End of Life Manual Availability	Yes
