STARTECH.COM

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER

SKU: 3V5297VPN: ET91000SM20

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER

Key Features

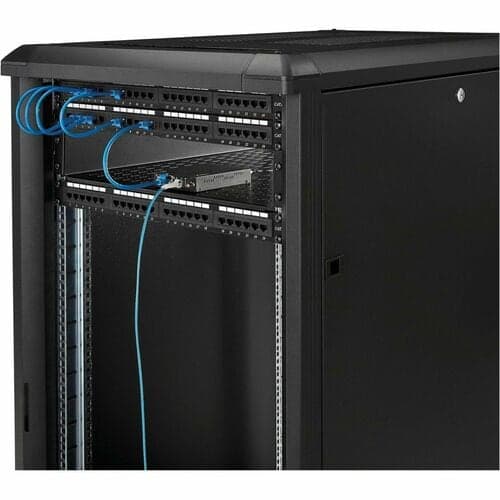

  • Flexible network integration, with support for standalone operation, or installation into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately)
  • Converts copper to fiber and extends your network up to 20 km (12.4 mi.) using single-mode LC fiber-optic cable (1310 nm)

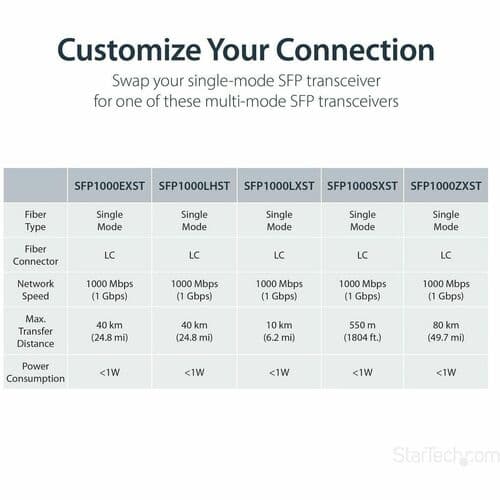

  • Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change
  • Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX
  • Up to 9.6K Jumbo Frame support
  • Supports full or half-duplex operation, as well as autonegotiation or forced mode
  • Media converter's card module is compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately)
  • Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
  • Fast, hassle-free setup
  • Rugged steel enclosure
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

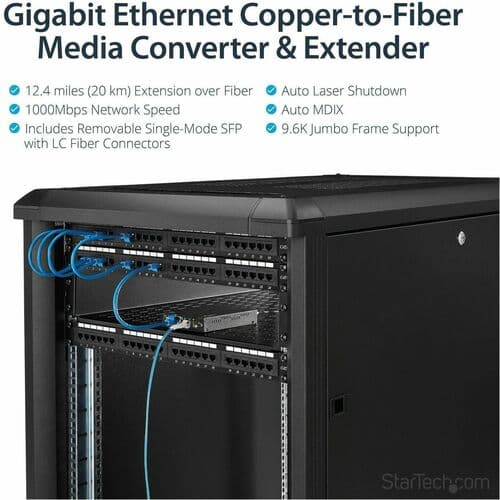

This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 20 km (12.4 mi.). Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications. Flexible integration into mixed network environments This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it's compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately). The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements. With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable. Rugged and reliable This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses. Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses. Diagnose and correct issues easily This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily. Prepare your network for the future If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together. The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

Tech Specs

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER specifications
DVINo
USBNo
Depth6.4"
Width3.5"
Height0.9"
Brand NameStarTech.com
Form FactorStandalone
LC Port TypeDuplex
ManufacturerStarTech.com
Power SourceAC Adapter
Product NameGigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 20 km
Product TypeTransceiver/Media Converter
Show all 35 specs
TAA CompliantYes
Management PortNo
Network (RJ-45)Yes

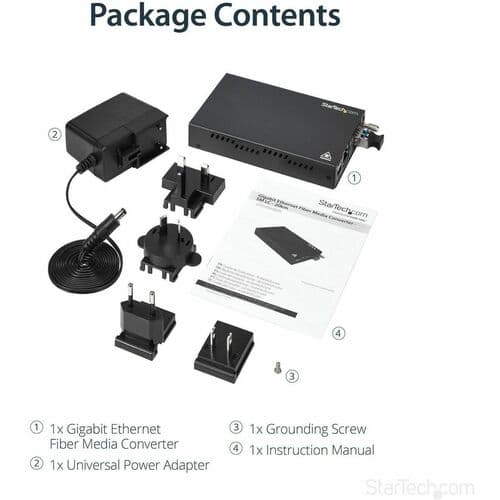

Package Contents<ul> <li>Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 20 km</li> <li>1 x Universal Power Adapter (NA/EU/UK/AU)</li> <li>1 x Grounding Screw</li> <li>1 x Instruction Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Power Consumption19.20 W
Network Technology1000Base-T
Number of LC Ports1
Ethernet TechnologyGigabit Ethernet
Plug/Connector TypeType M
Fiber Mode SupportedSingle-mode
Media Type SupportedOptical Fiber
Weight (Approximate)14.50 oz
Total Number of Ports2
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberET91000SM20
Maximum Distance Supported20 km
Environmental CertificationEU RoHS
Fiber Optic Cable Wavelength1310 nm
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports1
