STARTECH.COM

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER

SKU: 2NZ534VPN: MCMGBSCSM10

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER

Key Features

  • Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function

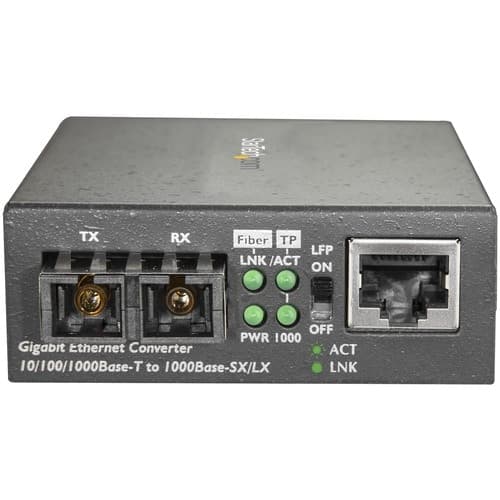

  • LED Indicators for simple Ethernet/fiber network link monitoring
  • 1310 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass through
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. Extend your GbE network cost-effectively The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

GIGABIT ETHERNET FIBER MEDIA CONVERTER GBE COPPER TO SM FIBER specifications
Depth2.8"
Width4.1"
Height1"
Brand NameStarTech.com
Form FactorWall Mountable
ManufacturerStarTech.com

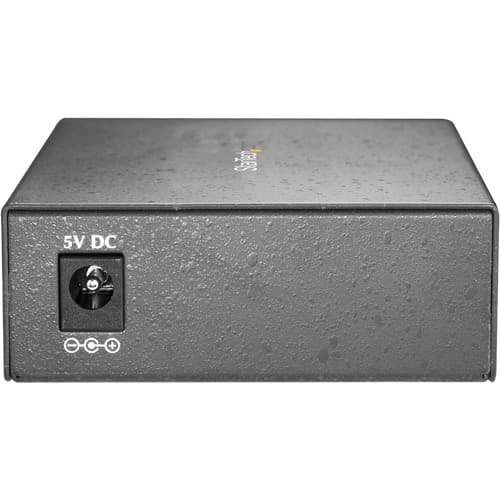

Power SourceAC Adapter
Product NameGigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Product TypeTransceiver/Media Converter
SC Port TypeDuplex
TAA CompliantYes
Network (RJ-45)Yes
Show all 32 specs

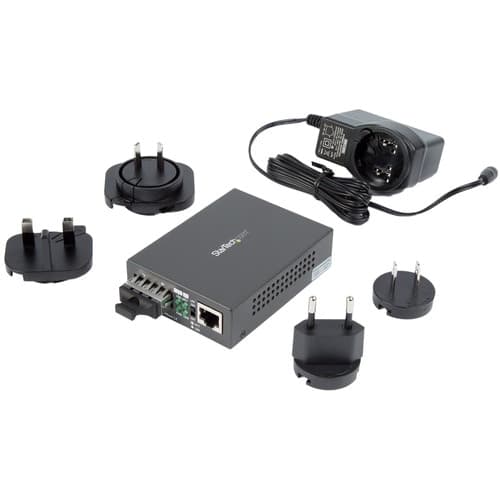

Package Contents<ul> <li>Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km </li> <li>1 x Universal Power Adapter (NA/JP, UK, EU, ANZ) </li> <li>1 x Quick-start Guide</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Power Consumption10 W
Network Technology1000Base-LX
Number of SC Ports1
Ethernet TechnologyGigabit Ethernet
Plug/Connector TypeType N
Fiber Mode SupportedSingle-mode
Media Type SupportedOptical Fiber
Weight (Approximate)6.90 oz
Total Number of Ports2
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberMCMGBSCSM10
Maximum Distance Supported10 km
Environmental CertificationEU RoHS
Fiber Optic Cable Wavelength1310 nm
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports1
