FLEXIDOCK MB021VP-B U.2 NVMESSD TRAYLESS DOCKING ENCL 3.5 DRIVE BAY
SKU: 9VV830VPN: MB021VP-B
FLEXIDOCK MB021VP-B U.2 NVMESSD TRAYLESS DOCKING ENCL 3.5 DRIVE BAY
Key Features

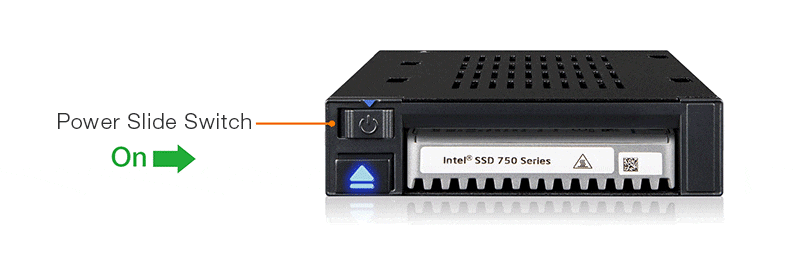

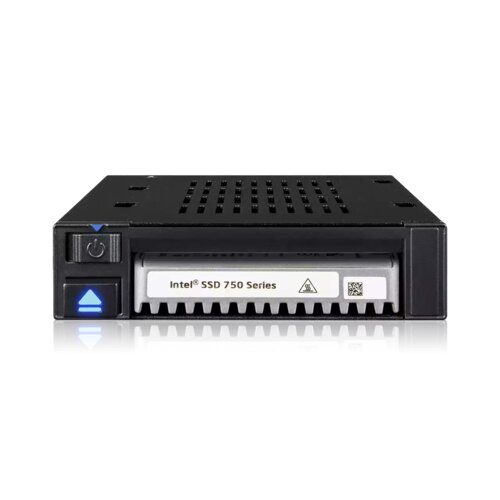

- The open front tray-less design lets users swap their bare U.2 NVMe SSDs within seconds.The LED drive activity light is built into the ejection button, indicating the drive's status.
- When a drive is inserted into MB021VP-B, the drive ejection button extends out. To remove the drive, press the ejection button back in and the drive will pop out.

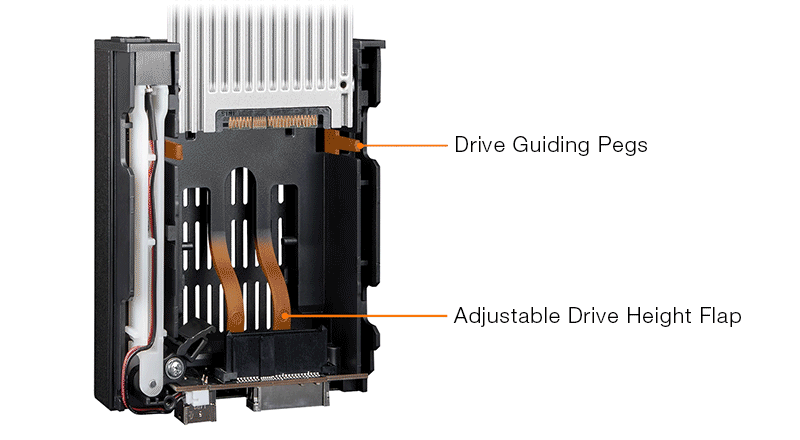

- We designed an intelligent drive guiding mechanism for a smooth and steady drive insertion/removal whether you are using a 7mm or 15mm height U.2 SSD.

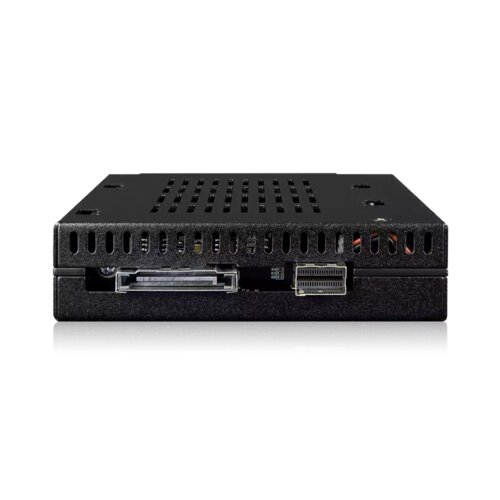

- To unlock the full performance of U.2 NVMe PCIe 4.0x4 SSD, the MB021VP-B uses Slimline SAS (SFF-8654) connector to supports up to 64Gbps transfer rates.
- The drive slot is covered by a spring-loaded dust cover to prevent dust and debris from entering the device and system.
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

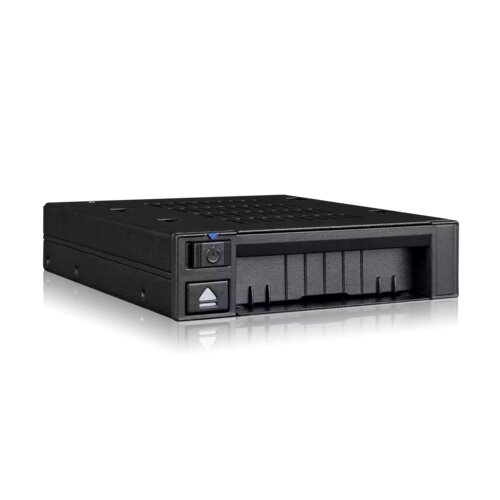

The flexiDOCK MB021VP-B is a compact U.2 NVMe PCIe 3.0/4.0 SSD mobile rack enclosure supporting up to 64Gbps data transfer speeds through a Slimline SAS (SFF-8654) connection.
Tech Specs
| Depth | 4" |
|---|---|
| Width | 4.9" |
| Height | 1" |
| Brand Name | Icy Dock |
| Form Factor | Internal |
| Color Family | Black |
| Manufacturer | Icy Dock |
| Product Line | FlexiDOCK |
| Product Name | FlexiDOCK MB021VP-B Drive Enclosure |
| Product Type | Drive Enclosure |
| Wireless LAN | No |
| Product Color | Black |
Show all 27 specsShow fewer
| Product Model | MB021VP-B |
|---|---|
| Host Interface | SFF-8654 SlimSAS |
| Drive Interface | PCI Express NVMe |

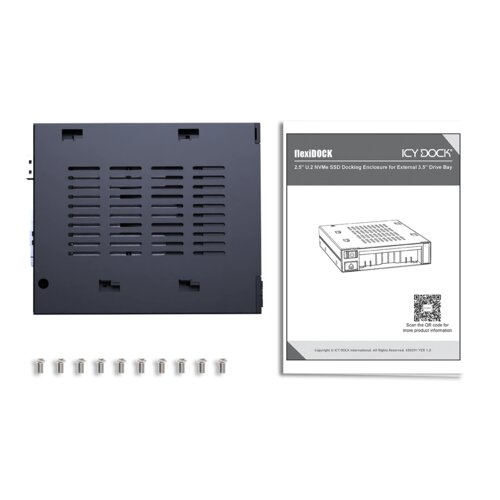

| Package Contents | <ul> <li>FlexiDOCK MB021VP-B Drive Enclosure</li> <li>User Manual</li> <li>Screw</li> </ul> |
| Product Material | Plastic |
| Number of 2.5" Bays | 1 |
| Weight (Approximate) | 8.40 oz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MB021VP-B |
| Compatible Drive Bay Width | 3.5" |
| Manufacturer Website Address | http://www.icydock.com |
| Number of Total Expansion Bays | 1 |
| Number of Solid State Drive Installed | 0 |
| Number of Solid State Drive Supported | 1 |
