EXTERNAL BATTERY MODULE FOR UPS 12X12V/9AH BATTERIES 3YR WARR

SKU: 9GM124VPN: BP144VL2U01

In Stock

$1,814.00$1,510.94

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Typical recharge time (0-90%): 4 hours
Battery type & quantity: 12V/9AH (12)
Form factor: Rack/Tower
Hot swappable: Yes
Battery Equalization Technology: Yes
Smart Battery Management: Yes
Fast Charge Technology: Yes
Warranty: 3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The CyberPower BP144VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL5KRTHD and OL6KRTHD.

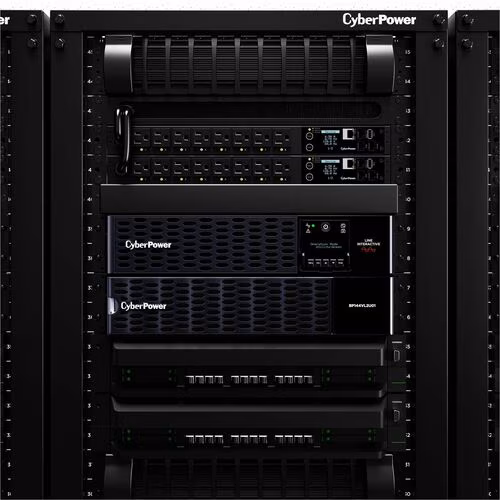

The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.

Tech Specs

EXTERNAL BATTERY MODULE FOR UPS 12X12V/9AH BATTERIES 3YR WARR specifications
Depth	28.3"
Width	17"
Height	3.4"
Brand Name	CyberPower
Form Factor	Tower/Rack Mountable
Battery Size	12V
Color Family	Black
Manufacturer	CyberPower Systems, Inc
Product Name	BP144VL2U01 Extended Battery Modules
Product Type	UPS Battery Pack
Compatibility	<p><b>CyberPower UPS Systems:<br /></b></p> <ul> <li>OL5KRTHD </li> <li>OL6KRTHD</li> </ul> <p></p>
Hot Swappable	Yes

Show all 31 specs

Product Color	Black
Product Model	BP144VL2U01
Output Voltage	144 V DC
Product Series	Extended Battery Modules
Battery Capacity	9000 mAh
Package Contents	<ul> <li>BP144VL2U01 UPS Battery Pack</li> <li>Mounting Hardware</li> </ul>
Battery Chemistry	Lead Acid
Country of Origin	Taiwan
Product Condition	New
Weight (Approximate)	96.80 lb
Additional Information	<li>Amperage : 55 A</li><li>DC Voltage : 144 VDC</li><li>Battery Quantity : 12</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Built-in Charger : Yes</li><li>Expansion Ready (Daisy-Chain) : Yes</li><li>Field-serviceable Battery : Replaceable by qualified technician</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X6D</li><li>Replacement Battery Cartridge Quantity : 2</li><li>Typical Recharge Time : 4 Hours (0% to 90% charged)</li><li>User Replaceable Battery : No</li><li>Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 71.88 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 28.3 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 719 (mm)</li><li>Weight (kg) : 43.91</li><li>Weight (lb) : 96.8</li><li>Shipping Dimensions - (WxHxD) (cm) : 59.06 x 20.32 x 109.86 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 23.25 x 8.0 x 43.25 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 590.55 x 203.2 x 1098.55 (mm)</li><li>Shipping - Weight (kg) : 54.11</li><li>Shipping - Weight (lb) : 119.3</li><li>USB Charge Port : No</li><li>Chassis Color : Unpainted</li><li>Form Factor : Rack / Tower</li><li>Front Panel Color : Black</li><li>Material of Construction : Metal</li><li>Mounting Hardware : Yes</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : -4 - 113 °F (-20 - 45 °C)</li><li>Models : OL5KRTHD, OL6KRTHD</li><li>UPS Models : OL5KRTHD</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>Extended Warranty Option : WEXT5YR-BP5</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery Characteristics	Sealed
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	BP144VL2U01
Certifications & Standards	UL1778 5th Ed.
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Battery Recharge Time	4 Hour
Maximum Operating Temperature	104°F (40°C)
