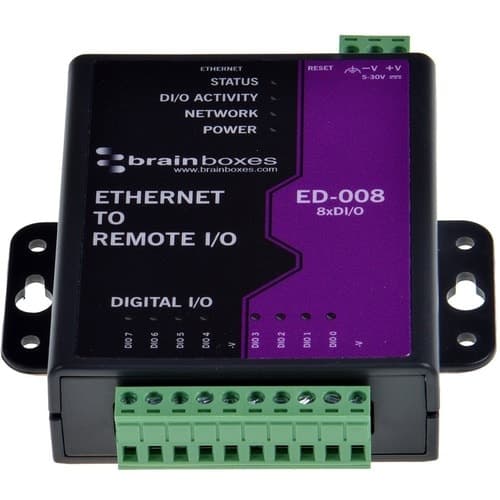

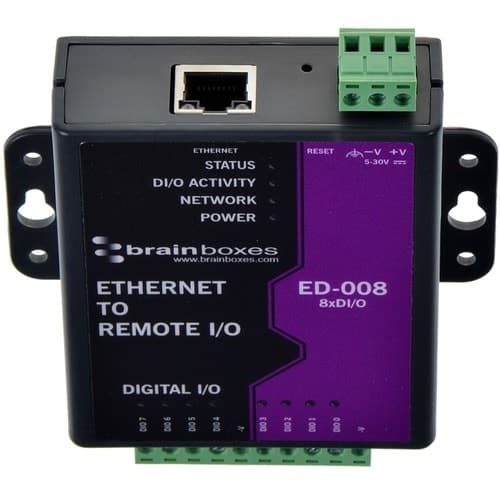

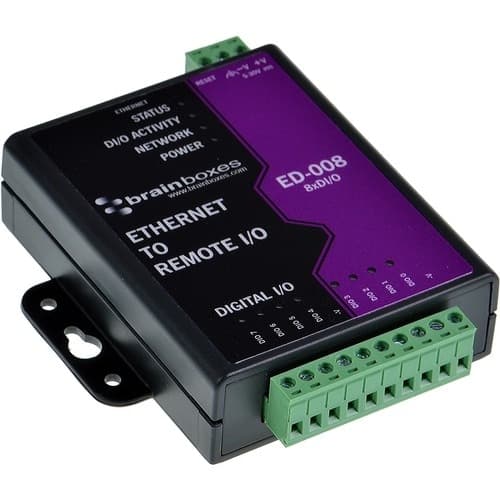

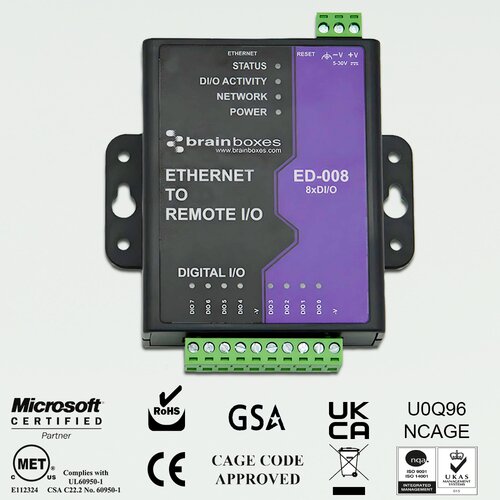

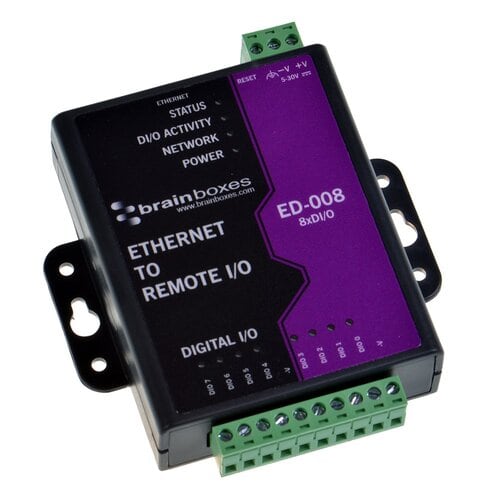

ETHERNET TO 8 DIGITAL IO PORTS 8 DIGITAL INPUT/OUTPUT CHANNELS

SKU: UK1961VPN: ED-008

Limited Stock

$145.00

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

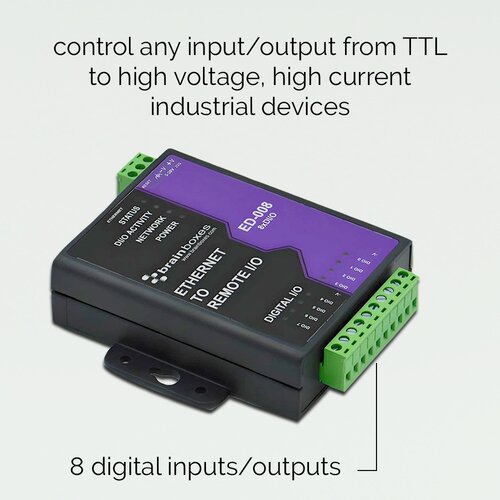

8 Digital Inputs/Outputs
Control any input or output from TTL to high voltage high current industrial devices
Factory floor process control and automation
User friendly software interface, Legacy compatible
Wide Industrial operating temperature range

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory.

Tech Specs

ETHERNET TO 8 DIGITAL IO PORTS 8 DIGITAL INPUT/OUTPUT CHANNELS specifications

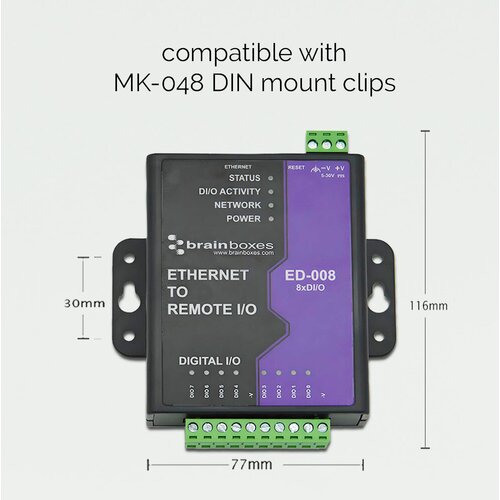

Depth	3.9"
Width	4.6"
Height	1"
Brand Name	Brainboxes
Manufacturer	Brainboxes Limited
Product Name	Ethernet to 8 Digital IO Lines
Product Type	Ethernet To Digital IO Module
Product Model	ED-008
Package Contents	<ul> <li>Ethernet to 8 Digital IO Lines</li> <li>Installation CD Including Manual, Microsoft Signed Drivers & Utilities</li> <li>Quick Start Guide</li> </ul>
Country of Origin	United Kingdom
Weight (Approximate)	4.48 oz
Additional Information	<p><b>IO Channels </b></p> <ul> <li>IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) </li> <li>Description 8 Digital Inputs/Outputs </li> <li>Digital Inputs 8 </li> <li>Digital Outputs 8 </li> <li>Analog Inputs 0 </li> <li>Analog Outputs 0 </li> <li>Watchdog When device comms is lost, outputs can be set to predetermined state </li> <li>Power On Values Outputs can be set to predetermined values on power on </li> <li>Safe Values When Input triggered, outputs can be automatically set to predetermined value </li> </ul> <b>Digital IO </b><br /> <ul> <li>Input Logic Level 0 -30.0V to +1.0V </li> <li>Input Logic Level 1 +2.0V to +30V </li> <li>Input Latches Triggered by user programmable positive or negative edges, stays true until acknowledged </li> <li>Input Counter User progammable- counts positive or negative transitions up to 200Hz </li> <li>Digital Output Type Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min </li> <li>Maximum Output Load Voltage 30 VDC </li> <li>Maximum Output Current Sink 0.85A per channel </li> </ul> <p><b>Serial Port </b></p> <ul> <li>Serial Gateway No </li> <li>Protocol RS232 </li> </ul> <p><b>Network </b></p> <ul> <li>Number of Ports 1 </li> <li>Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) </li> <li>Network Protocols ICMP, IP, TCP, DHCP, HTTP </li> <li>Protection 1500V Magnetic Isolation between ports and network </li> </ul> <p><b>Power </b></p> <ul> <li>Power Input 5V - 30V DC input, reverse polarity protected </li> <li>Power Supply 1 Description Global Power Supply - PW-600 </li> <li>Power Supply 2 Description Power supply PW-650 </li> <li>Max Input 35 Volts </li> </ul> <p><b>General </b></p> <ul> <li>Operating Temperature Range 0 °C to +60 °C / 32 °F to +140 °F </li> <li>Industrial Standard No </li> <li>Storage Temperature 0 °C to +70 °C / +32 °F to +158 °F </li> <li>Galvanic Isolation No</li> </ul> <p><b>Operating Systems</b></p> <ul> <li>Microsoft Windows 10</li> <li>Suitable for any device with a Web Browser</li> <li>Microsoft Windows 8 32 bit & 64 bit Editions</li> <li>Raspberry Pi</li> <li>Android</li> <li>Microsoft Windows 7 32 bit & 64 bit Editions</li> <li>iOS</li> <li>Windows Server 2008 32 bit & 64 bit Editions</li> <li>Windows Vista 32 bit & 64 bit Editions</li> <li>Mac OS X</li> <li>Windows XP 32 bit & 64 bit Editions</li> <li>Linux</li> </ul>

Show all 16 specs

Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	ED-008
Manufacturer Website Address	http://www.brainboxes.com
