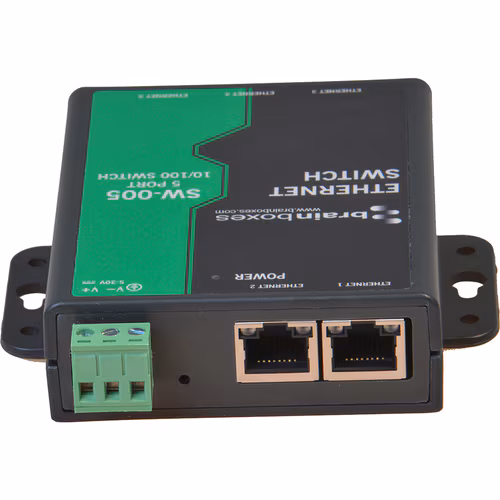

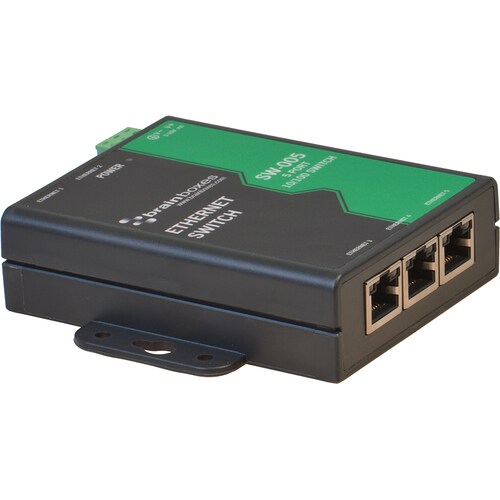

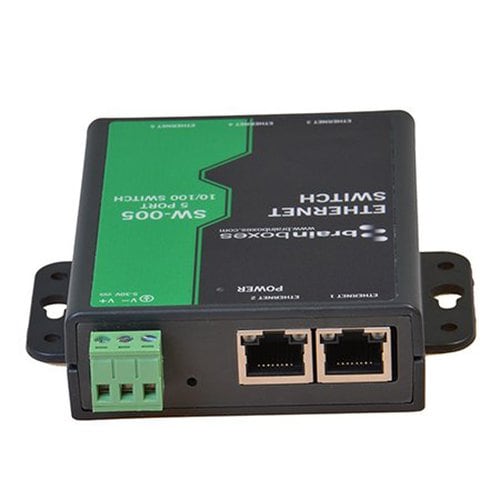

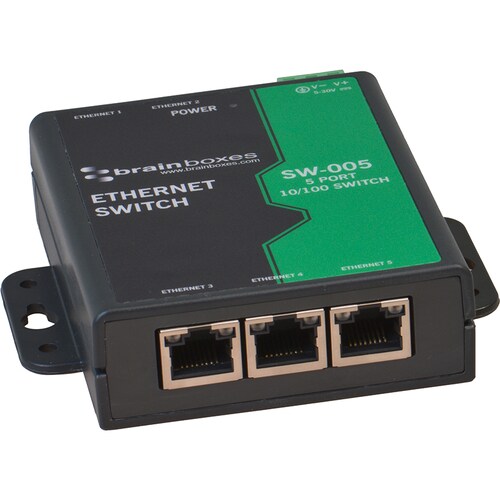

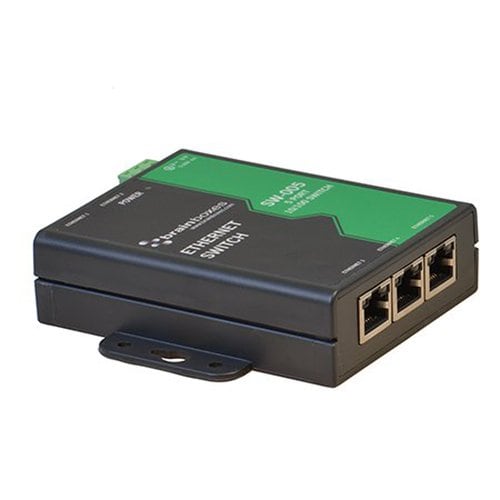

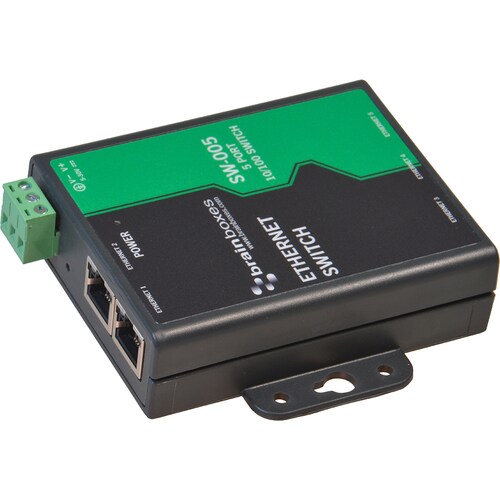

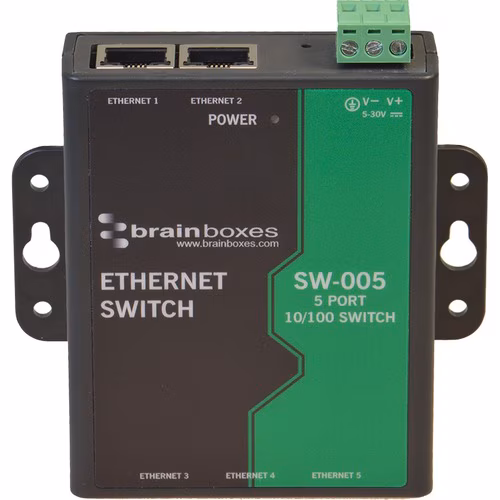

ETHERNET 5PORT SWITCH UNMANAGED ETHERNET SWITCH

SKU: TE5920VPN: SW-005

Limited Stock

$53.97

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

5 Port Ethernet Switch, Wide Power Input: +5V to +30V DC
Wall Mountable, or DIN rail mountable with included mounting kit (MK-048)
-14°F to +140°F operating temperature
No software required
Lifetime Support and Lifetime Warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor.

Tech Specs

ETHERNET 5PORT SWITCH UNMANAGED ETHERNET SWITCH specifications
USB	No
Depth	4"
Width	4.2"
Bypass	No
Height	1.1"
Modular	No
LRE Port	No
Brand Name	Brainboxes
Manageable	No
Stack Port	No
Form Factor	Wall Mountable
Uplink Port	No

Show all 34 specs

Manufacturer	Brainboxes Limited
Power Source	Power Adapter
Product Name	5 Port Unmanaged Ethernet Switch Wall Mountable
Product Type	Ethernet Switch
Product Model	SW-005
TAA Compliant	Yes
Layer Supported	2
Token Ring Port	No
Package Contents	<ul> <li>5 Port Unmanaged Ethernet Switch Wall Mountable</li> <li>Quick Start Guide</li> </ul>
PoE (RJ-45) Port	No
Country of Origin	United Kingdom
Network Technology	10/100Base-TX
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair
Weight (Approximate)	4.73 oz
Environmentally Friendly	Yes
Manufacturer Part Number	SW-005
Certifications & Standards	<ul><li>CE</li></ul><b>IEEE Standards:</b><br><ul><li>802.3</li><li>802.3u</li></ul>
Port/Expansion Slot Details	5 x Fast Ethernet Network
Manufacturer Website Address	http://www.brainboxes.com
Total Number of Network Ports	5
Number of Network (RJ-45) Ports	5
