EMERGENCY FALLBACK VENTILATION SYSTEM SRCOOL3KTP AIR CONDITIONER

SKU: 08VL68VPN: SRCOOLTMVENT

In Stock

$619.07

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Performs in conjunction with the SRCOOL3KTP top-of-rack air conditioner
Keeps rack equipment safely functioning in case of temporary cooling loss
Integrates with SRCOOL3KTP's remote management with no special configurations
Easy to install with included hardware and external power supply
5-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

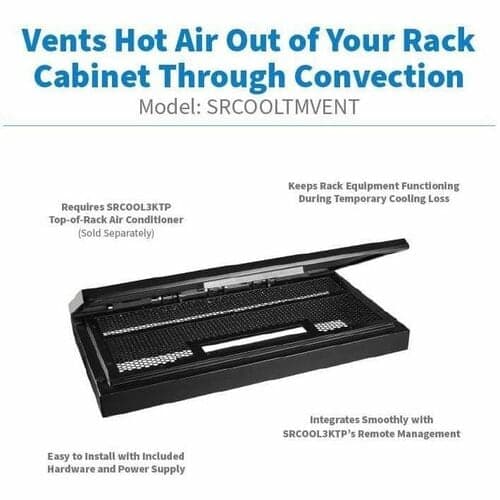

Allows Hot Air Trapped Inside a Rack Enclosure to Vent Out During Power Emergencies
This SmartRack® emergency fallback ventilation system works in conjunction with the SRCOOL3KTP Top-of-Rack Precision Cooling Air Conditioner (sold separately) to help prevent rack equipment from overheating in case of a cooling system failure. If the SRCOOL3KTP malfunctions due to power failure, the SRCOOLTMVENT's embedded thermal sensor triggers a lid release, allowing the hot air within the rack to dissipate. An SNMP alert via the SRCOOL3KTP's remote management will notify you that the vent has opened.

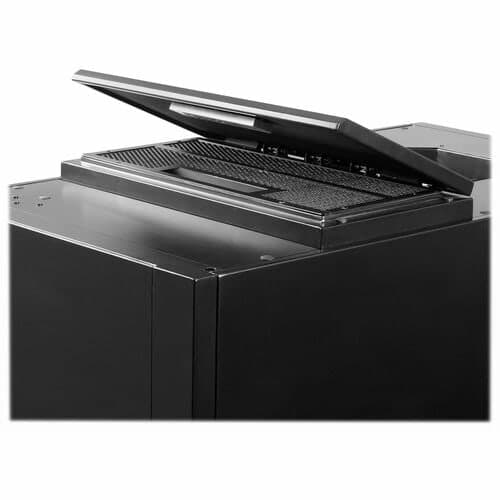

Easy to Install with Included Hardware
The SRCOOLTMVENT inserts easily into the SRCOOL3KTP's reserved slot using the included mounting screws and can be retrofitted into existing installations. A 12V DC power supply is also included.

Tech Specs

EMERGENCY FALLBACK VENTILATION SYSTEM SRCOOL3KTP AIR CONDITIONER specifications
Depth	30.1"
Width	56.6"
Height	8.7"
Brand Name	Eaton
Form Factor	Rack-mountable
Color Family	Black
Manufacturer	Eaton Corporation
Power Source	AC Adapter
Product Line	SmartRack
Product Name	Emergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner
Product Type	Emergency Fallback Ventilation System
Input Current	1 A

Show all 25 specs

Input Voltage	100 V AC
Product Color	Black
Product Model	SRCOOLTMVENT
Product Family	SmartRack
Package Contents	<ul><li> Emergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner</li><li> Emergency Vent assembly</li><li> 6 x Mounting Screws</li><li> External Power Supply (Input: 100-240V, 50/60 Hz, 1A; Output: 12V 2.5A)</li><li> Installation Instructions</li></ul>
Product Material	Steel
Application/Usage	Monitor
Country of Origin	China
Weight (Approximate)	17.20 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	SRCOOLTMVENT
Manufacturer Website Address	http://www.eaton.com
