ELECTRICIANS TRUE RMS MULTIMETER 0

SKU: 02NM66VPN: FLUKE-117

In Stock

$268.44

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Compact, true-rms digital multimeter for electricians

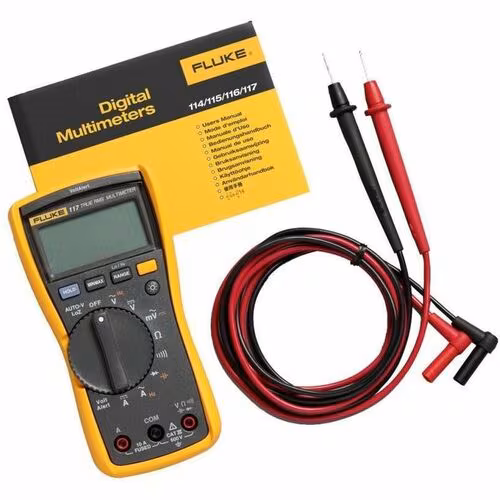

Includes multimeter, 4mm silicone test leads, holster and manual
Integrated non-contact voltage detection keeps you safe
Prevent false readings from ghost voltage with selectable low-impedance mode

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Fluke 117: Compact digital multimeter designed for electricians

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for:

Resistance
Continuity
Frequency
Capacitance
Min/Max/Average

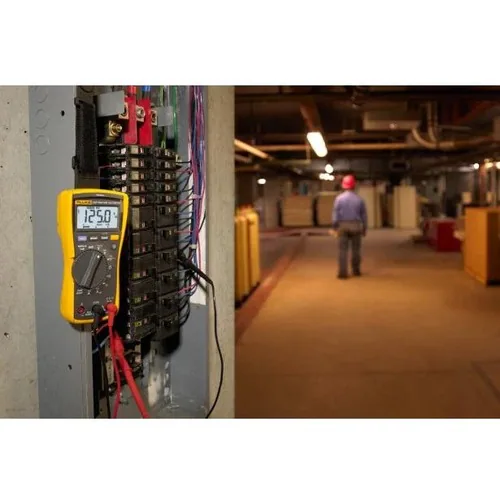

For the everyday

A digital multimeter designed to be hauled everywhere with you, part of your everyday tools. The 117 is built for demanding applications like:

Commercial buildings
Hospitals
Schools

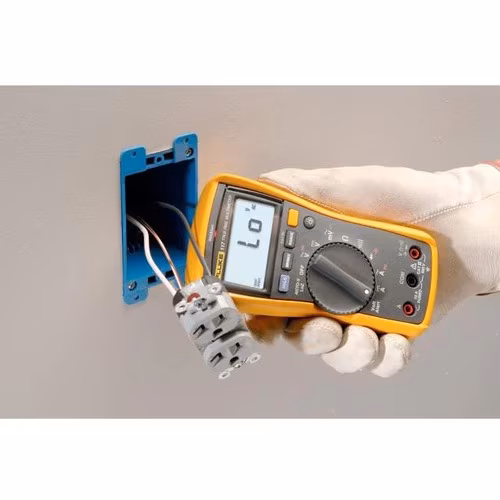

Non-contact voltage detection

Keep yourself safer with integrated VoltAlert™ technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.

Automatic AC/DC selection

Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.

Tech Specs

ELECTRICIANS TRUE RMS MULTIMETER 0 specifications
True RMS	Yes
Brand Name	Fluke
Meter Type	Digital
Manufacturer	Fluke Corporation
Product Name	117 Digital Multimeter
Product Type	Multimeter
Product Model	117
Display Counts	6000
Measurement Type	Resistance
Package Contents	<ul> <li>117 Digital Multimeter</li> <li>1 x Pair 4 mm Silicone Test Lead Set</li> <li>Holster</li> <li>Quick Reference Guide</li> </ul>
Battery Chemistry	Alkaline
Weight (Approximate)	1.21 lb

Show all 29 specs

Manufacturer Part Number	FLUKE117
Certifications & Standards	CE
Manufacturer Website Address	http://www.fluke.com
Maximum Frequency Measurement	50 kHz
Minimum Frequency Measurement	0.01 Hz
Maximum AC Current Measurement	10 A
Maximum AC Voltage Measurement	600 V
Maximum DC Current Measurement	10 A
Maximum DC Voltage Measurement	600 V
Maximum Resistance Measurement	6 Mega Ohm
Minimum AC Current Measurement	1 mA
Minimum AC Voltage Measurement	0.10 V
Minimum DC Current Measurement	1 mA
Minimum DC Voltage Measurement	0.10 V
Minimum Resistance Measurement	100000 Micro Ohm
AC Voltage Measurement Accuracy	4.0%
Maximum Capacitance Measurement	0.001F
