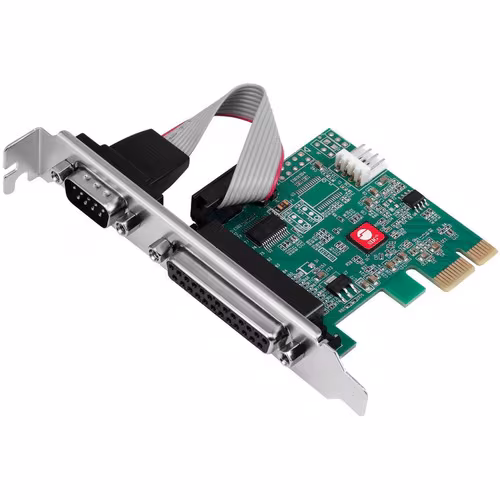

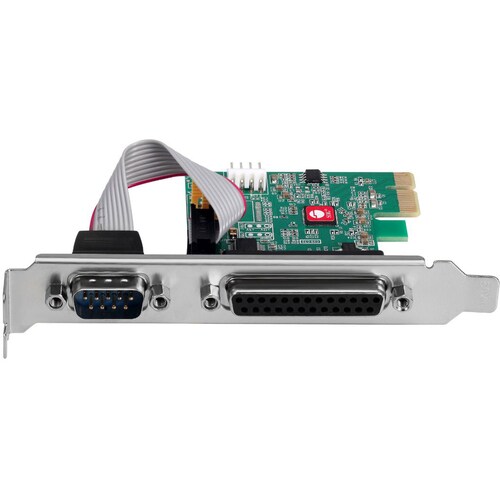

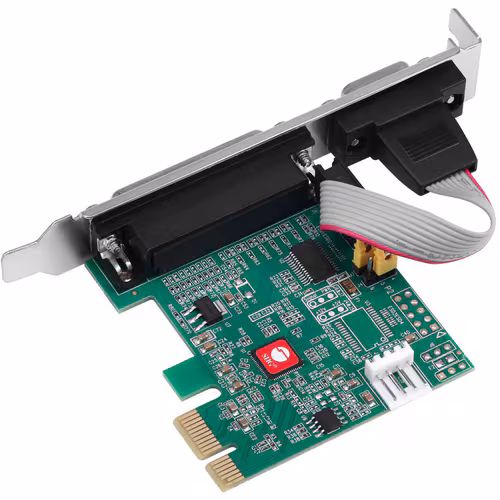

DP CYBER 1S1P PCIE CARD RS-232 SERIAL PORT TO PCIE ENABLED

SKU: 9CY643VPN: JJ-E20311-S1

In Stock

$31.19

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Easily adds one serial port and one parallel port through an available PCI Express slot
16C650 UART serial port with data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
Single-lane (X1) PCI Express end-point controller with PHY integrated
Full serial modem control
Hardware and software flow control
5, 6, 7, 8 and 9-bit serial format
Even, odd, none, space and mark parity
On chip 256 byte FIFO buffers in transmit, receive path

Adding to inquiry lets you bundle multiple products into a single quote request.

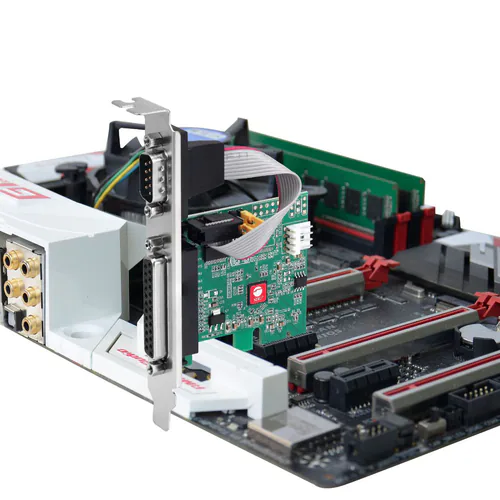

Adds one RS-232 serial port and one parallel port to a PCI Express enabled system

DP CYBER 1S1P PCIE CARD RS-232 SERIAL PORT TO PCIE ENABLED specifications
Depth	0.7"
Width	4.7"
Height	2.9"
Brand Name	SIIG
Card Height	Full-height
Form Factor	Plug-in Card
Manufacturer	SIIG, Inc
Product Name	DP Cyber 1S1P PCIe Card
Product Type	Serial/Parallel Combo Adapter
Host Interface	PCI Express 2.0 x1

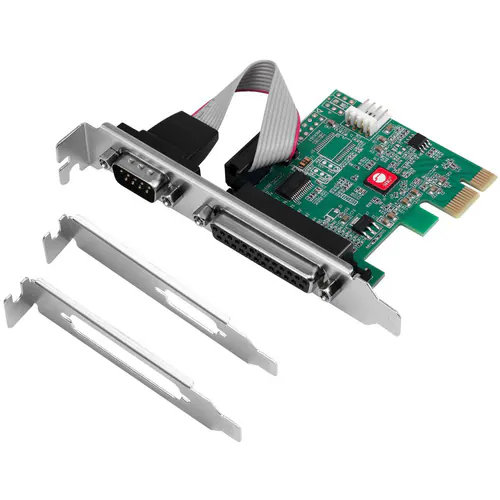

Package Contents	<ul> <li>DP Cyber 1S1P PCIe Card</li> <li>2 x Low-Profile Bracket</li> <li>Y-Split Power Cable</li> <li>2 x Voltage Jumper</li> <li>Software CD</li> <li>User Manual</li> </ul>
Country of Origin	China

Show all 20 specs

Platform Supported	PC
Weight (Approximate)	1.60 oz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	JJ-E20311-S1
Manufacturer Website Address	http://www.siig.com
Number of Serial Ports (External)	1
Number of Parallel Ports (External)	1
