DP CYBER 1S PCIE CARD

SKU: 8UL694VPN: JJ-E20611-S1

In Stock

$26.40

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
One 16C650 UART serial port supports data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
Supports 5, 6, 7, 8 and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
Supports on chip 256-byte FIFO buffers in transmit and receive path
Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
Supports PCI Bus Power Management Interface Specification Revision 1.2

Adding to inquiry lets you bundle multiple products into a single quote request.

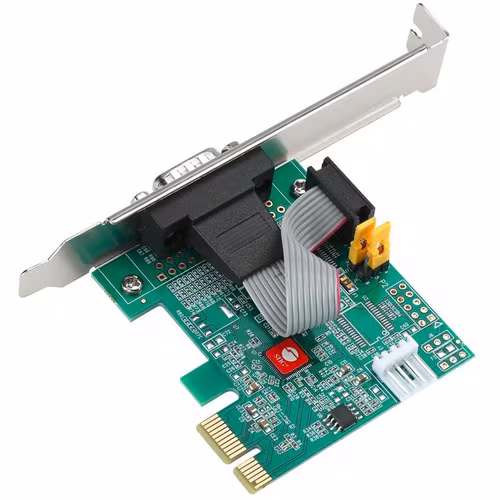

Add one 16650 RS232 port to your PCI Express system

Features

Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
One 16C650 UART serial port supports data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
Supports 5, 6, 7, 8 and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
Supports on chip 256-byte FIFO buffers in transmit and receive path
Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
Supports PCI Bus Power Management Interface Specification Revision 1.2

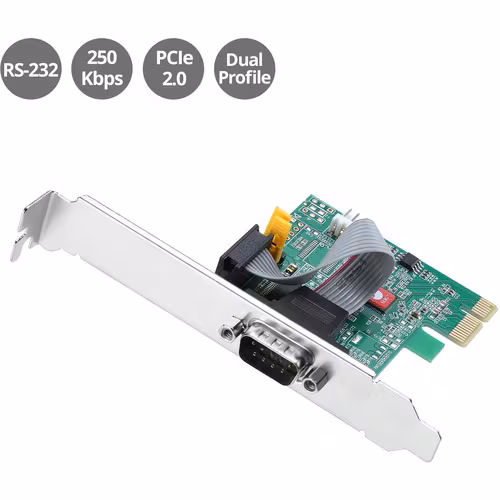

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

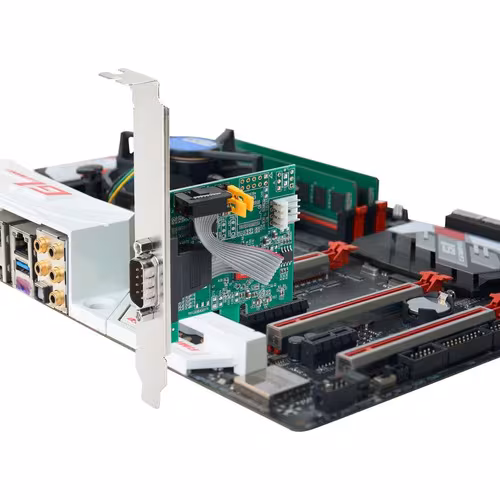

Installs into any PCI Express slot of any lane width
Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

DP CYBER 1S PCIE CARD specifications
Depth	4.7"
Width	2.9"
Height	0.7"
Brand Name	SIIG
Card Height	Full-height/Low-profile
Form Factor	Plug-in Card
Manufacturer	SIIG, Inc
Product Name	DP Cyber 1S PCIe Card
Product Type	Serial Adapter
Host Interface	PCI Express 2.0 x1

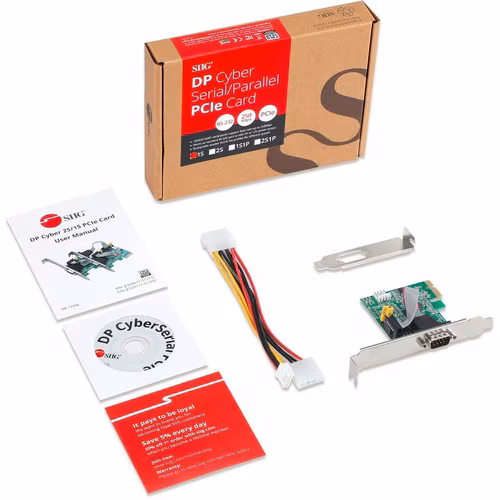

Package Contents	<ul> <li>DP Cyber 1S PCIe Card</li> <li>Full Height Bracket</li> <li>1 x Low Profile Bracket</li> <li>1 x Y-Split Power Cable</li> <li>2 x Voltage Jumper</li> <li>Software CD</li> <li>User Manual</li> </ul>
Country of Origin	China

Show all 19 specs

Platform Supported	PC
Weight (Approximate)	1.60 oz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	JJ-E20611-S1
Manufacturer Website Address	http://www.siig.com
Number of Serial Ports (External)	1
