CYBERPOWER OL1K5RTHD UPS 100-125V OL RT HD 3 YEAR WARRANTY

SKU: 550E89VPN: OL1K5RTHD

In Stock

$2,400.00$1,621.52

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Capacity: 1500 VA / 1350 W
High Density: 2U Size
Power Factor (PF): 0.9
Topology: Double-Conversion
Waveform: Sine Wave
Output: 100, 110, 115, 120, 125 Vac User Configurable ±2%
Runtime (half/full): 12.5 minutes / 4 minutes

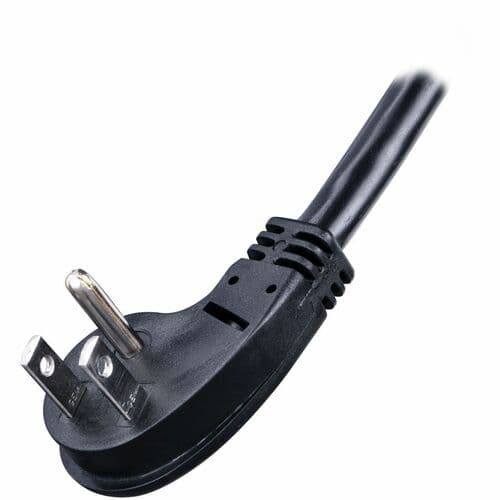

Plug type & cord: NEMA 5-15P

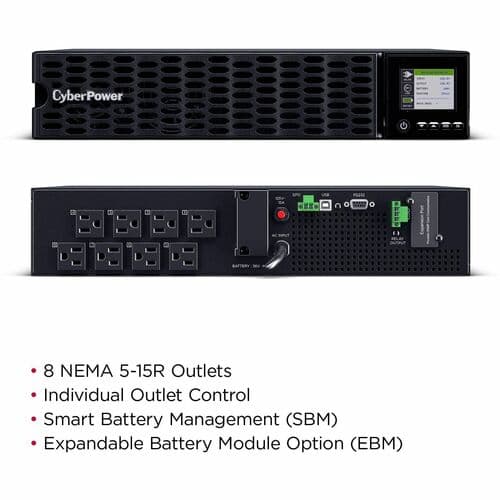

Outlet types: 8 × NEMA 5-15R, Switchable
Communication ports: USB, Serial, SNMP, EPO
Management software: PowerPanel® Business Edition
Remote management: Yes, RMCARD205 Optional
Warranty: 3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The OL1K5RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

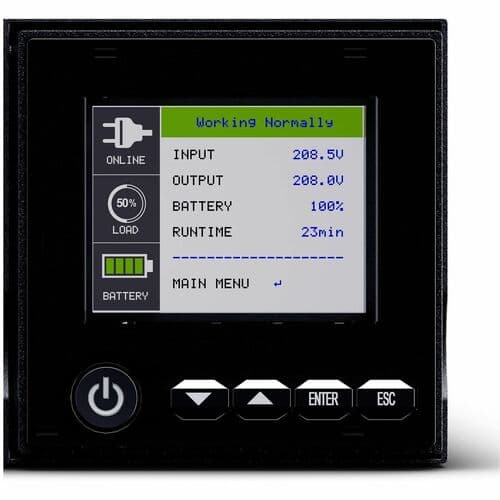

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL1K5RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.

The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year limited warranty (including batteries) and a $400,000 Connected Equipment Guarantee.

Tech Specs

CYBERPOWER OL1K5RTHD UPS 100-125V OL RT HD 3 YEAR WARRANTY specifications
USB	Yes
Alarm	Battery Mode
Depth	15"
Width	17"
Height	3.4"
Display	LCD
EPO Port	Yes
Features	Cold Start Function
Brand Name	CyberPower
Cord Length	10 ft
Energy Star	Yes
Form Factor	Rack/Tower

Show all 67 specs

Rack Height	2U
Serial Port	Yes
Battery Size	12V
Color Family	Black
Manufacturer	CyberPower Systems, Inc
Product Name	Smart App Online UPS OL1K5RTHD 1500VA Rack/Tower UPS
Product Type	Double Conversion Online UPS
Energy Saving	ECO Mode Efficiency >96%
Hot Swappable	Yes
Input Voltage	120 V AC
Product Color	Black
Product Model	OL1K5RTHD
Transfer Time	0 ns
Waveform Type	Sine Wave
Output Voltage	100 V AC
Product Family	Smart App Online UPS
Product Series	Smart App Online UPS
Circuit Breaker	Yes
Input Frequency	70 Hz
Receptacle Type	NEMA 5-15R
Battery Capacity	9000 mAh
Output Frequency	50 Hz
Battery Chemistry	Lead Acid
Receptacle Detail	8 x NEMA 5-15R
Status Indicators	<p><strong>LED Indicators:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Power On (White)</li></ul>
Surge Suppression	Yes
Input Power Factor	0.99
Load Capacity (VA)	1500 VA
Network Management	SNMP/HTTP Remote Monitoring
Input Voltage Range	100 V AC - 125 V AC
Number of Batteries	3
Output Power Factor	0.9
Overload Protection	Yes
Plug/Connector Type	NEMA 5-15P
Replaceable Battery	Yes
Surge Energy Rating	710 J
Thermal Dissipation	115.76 W
EMI/RFI Noise Filter	Yes
Load Capacity (Watt)	1350 W
Weight (Approximate)	37.26 lb
Battery Characteristics	Sealed
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	OL1K5RTHD
USB (HID Compliant) Port	Yes
Maximum Storage Elevation	49213 ft
Certifications & Standards	<p>UL1778</p>
Backup/Run Time (Full Load)	4 Minute
Backup/Run Time (Half Load)	12.50 Minute
Maximum Operating Elevation	9843 ft
Sound Emission (A-Weighted)	47.6 dB(A)
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Typical Battery Recharge Time	4 Hour
Additional Warranty Information	<p>Three-year warranty (including batteries)</p>
