STARTECH.COM

CEILING TV MOUNT FULL MOTION TV HANGING SCREEN VESA BRACKET MOUNT

SKU: 8H0111VPN: FLATPNLCEIL

CEILING TV MOUNT FULL MOTION TV HANGING SCREEN VESA BRACKET MOUNT

Key Features

  • Save space by suspending your 32 to 75" flat-screen TV from the ceiling; Supports TVs up to 110 lb. (50 kg)

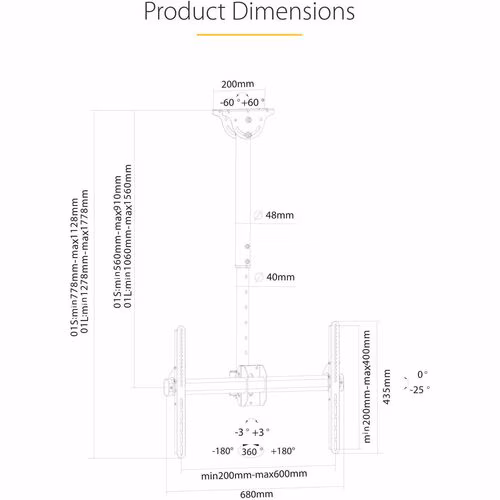

  • Min-max pole length extension of 42" to 61" (1060 to 1560 mm)

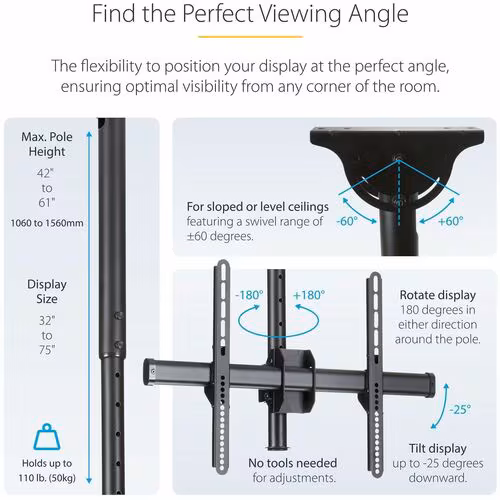

  • Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings
  • Full-motion mount lets you swivel the display +180 /-180 degrees around the pole and tilt downwards -25 degrees, without using tools

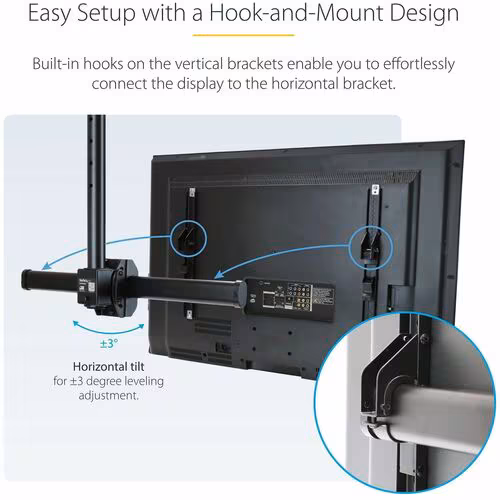

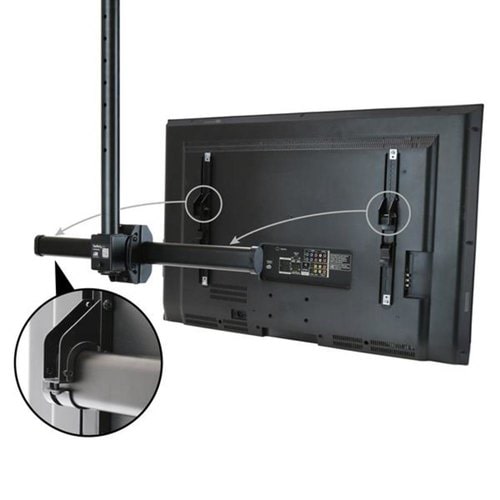

  • Easy setup, with a hook-and-mount design

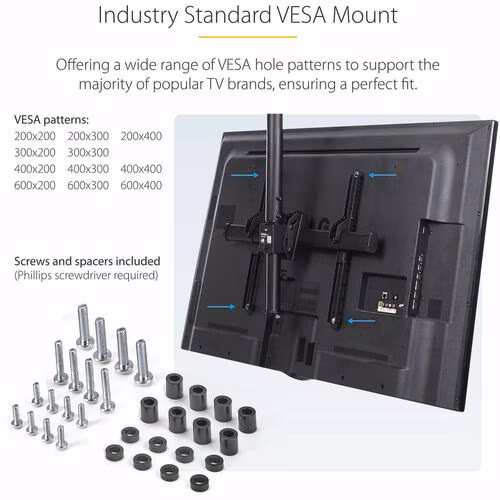

  • Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area. The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places. Adjustable Height With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm). Swivels to Suit Your Ceiling The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings. Viewable from Any Direction You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools. Hook-and-Mount Design Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging. FLATPNLCEIL is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Tech Specs

CEILING TV MOUNT FULL MOTION TV HANGING SCREEN VESA BRACKET MOUNT specifications
Width5.50"
Height70"
Length26.80"
FeaturesTilt
Brand NameStarTech.com
Color FamilyBlack
ManufacturerStarTech.com
Product NameCeiling TV Mount - 3.5' to 5' Pole
Product TypeCeiling Mount
Product ColorBlack
Device SupportedLED Display
Mounting Pattern200 x 300
Show all 31 specs

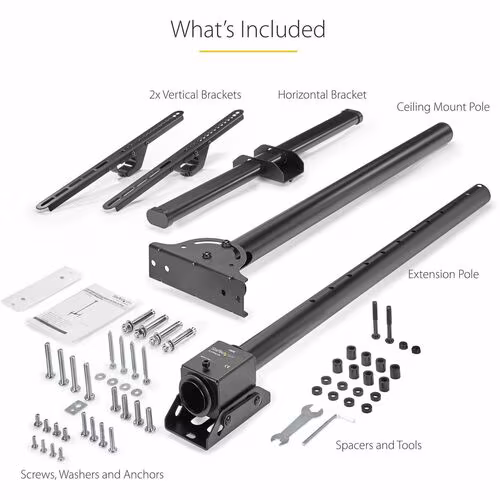

Package Contents<ul> <li>1 x Ceiling Mount and Pole</li> <li>1 x Extension Pole</li> <li>2 x Vertical Brackets</li> <li>1 x Horizontal Bracket</li> <li>2 x Bolts</li> <li>2 x Nuts</li> <li>1 x M13 Wrench</li> <li>1 x M5 Allen Key</li> <li>1 x Mounting Template</li> <li>4 x M5x14 mm Screws</li> <li>4 x M6x14 mm Screws</li> <li>4 x M8x30 mm Screws</li> <li>4 x M6x30 mm Screws</li> <li>4 x M8x50 mm Screws</li> <li>4 x Washers</li> <li>8 x Short Spacers</li> <li>8 x Long Spacers</li> <li>4 x 6.3x55 mm Screws</li> <li>4 x Concrete Anchors</li> <li>4 x Flat Washers</li> <li>1 x Instruction Manual</li> </ul>
Product MaterialSteel
Country of OriginChina
Height AdjustableYes
Packaged Quantity1 Each
REACH free of SVHCYes
Weight (Approximate)13.20 lb
Maximum Load Capacity110.50 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/flatpnlceil_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/flatpnlceil_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberFLATPNLCEIL
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Displays Supported1
Maximum Screen Size Supported75"
Minimum Screen Size Supported32"
End of Life Manual AvailabilityYes
