TP-LINK SYSTEMS INC.

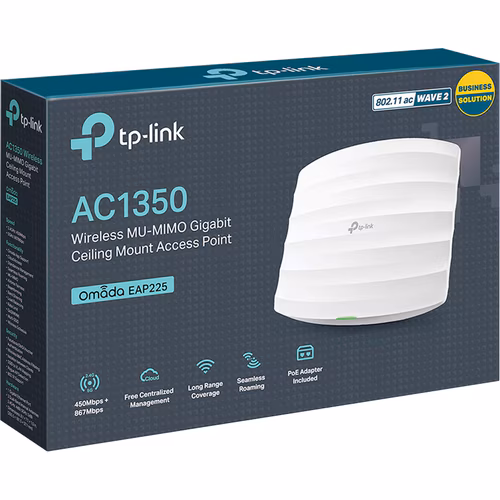

CEILING MOUNT ACCESS POINT AC1350 WL DUAL BAND AP

SKU: 2LW599VPN: EAP225

CEILING MOUNT ACCESS POINT AC1350 WL DUAL BAND AP

Key Features

  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Supports management VLAN for an enhanced network management
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

EAP Controller Software

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment

The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Tech Specs

CEILING MOUNT ACCESS POINT AC1350 WL DUAL BAND AP specifications
USBNo
VGANo
HDMINo
Depth7.1"
Width8.1"
Height1.5"
PowerlineNo
Brand NameTP-Link
Form FactorWall Mountable
PoE PD PortYes
ManufacturerTP-LINK Technologies Co., Ltd
Network BandDual Band
Show all 33 specs
Product NameAC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Product TypeWireless Access Point
Product ModelEAP225
Frequency Band5 GHz
Indoor/OutdoorIndoor
MIMO TechnologyYes
Management PortYes
Package Contents<ul> <li>AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point</li> <li>Passive PoE Adapter</li> <li>Power Cord</li> <li>Mounting Kits</li> <li>Installation Guide</li> </ul>
Power Consumption12.60 W
Antenna Form FactorInternal
Ethernet TechnologyGigabit Ethernet
Wireless LAN StandardIEEE 802.11ac
Additional Information<p><b>Legal Disclaimer:</b></p><p>Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.</p>
Beamforming TechnologyYes
Environmentally FriendlyYes
Manufacturer Part NumberEAP225
Total Number of Antennas3
Number of Internal Antennas3
Wireless Transmission Speed1.32 Gbit/s
Manufacturer Website Addresshttp://www.tp-link.com/us
Number of Network (RJ-45) Ports1
