TRIPLE 4K DISPLAYLINK DOCK 135W PSU
$33.99$19.30
California Proposition 65 Warning
WARNING: CANCER AND REPRODUCTIVE HARM www.p65warning.ca.gov
C2G USB C TRIPLE 4K DOCKING STATION HDMI DISPLAYPORT ETHERNET
SKU: 11PN42VPN: C2G54538
C2G USB C TRIPLE 4K DOCKING STATION HDMI DISPLAYPORT ETHERNET
Key Features
- Wired connectivity technology provides a high-powered and dependable connection
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Hard Drive device supported for better reliance and optimal performance
- Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
- Power Adapter power source type for your docking station provides maximum energy feasibility and added surveillance productivity
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- 6 USB ports allows powerful and efficient transfer of data with maximum productivity
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

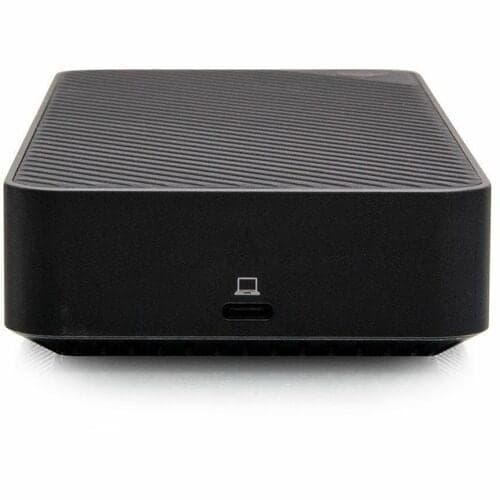

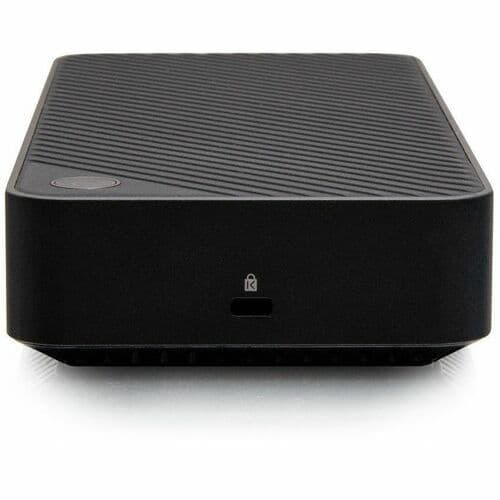

The USB-C Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection - allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go.
This docking station supports crisp, high definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled "DP Alt Mode" , be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

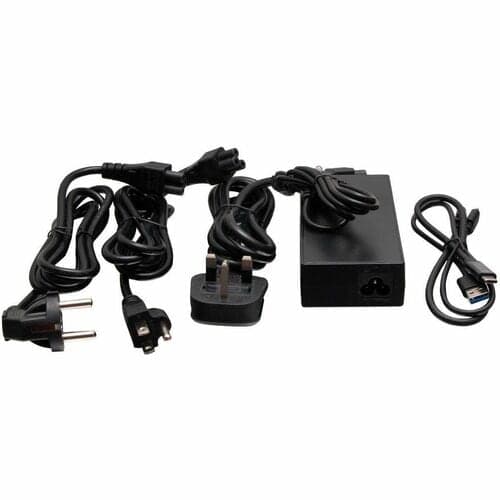

The included 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds.
The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS.
PORTS
2x HDMI (DisplayLink) Ports:Connect to HDMI port 1 or port 2 for a single 4K display or dual 4K displays, supporting audio and video.
2x DisplayPort (DisplayLink) Ports:Connect to DisplayPort port 1 or port 2 for a single 4K display or dual 4K displays, supporting audio and video.
1x HDMI (DP Alt Mode) Port:Connect to the HDMI port labeled "DP Alt Mode" when using a triple display setup with a connected laptop that supports DP alt mode.
3x USB-C:The left side USB-C port delivers up to 100W of power to the connected laptop, the front battery labeled USB-C Gen 2 port supports 10Gbps and BC 1.2 for quick mobile device charging, and the front USB-C Gen 1 port supports data transferring up to 5Gbps.
3x USB-A:Connect storage devices and transfer data up to 5Gbps through the two rear USB-A Gen 1 ports, with the front USB-A Gen 2 port supporting 10Gbps and BC 1.2 for quick mobile device charging.
Gigabit Ethernet:Connect to a local network for network and internet access.
Audio Combo Jack:Connect a headset microphone or speakers for audio output.
Tech Specs
| HDMI | Yes |
|---|---|
| Depth | 3.35" |
| Height | 1.25" |
| Length | 7.5" |
| Brand Name | C2G |
| USB Type-A | Yes |
| USB Type-C | Yes |
| DisplayPort | Yes |
| Color Family | Black |
| Manufacturer | Legrand Group |
| Product Name | C2G USB-C® 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station |
| Product Type | Docking Station |
Show all 39 specsShow fewer
| Compatibility | Mac OS Devices (including M1 and M1X) |
|---|---|
| Product Color | Black |
| Host Interface | USB Type C |
| Network (RJ-45) | Yes |
| Device Supported | Hard Drive |
| Limited Warranty | 5 Year |
| Package Contents | <ul> <li>Docking Station</li> <li>1 x 1.5ft (0.5m) Male USB-C to Male USB-C Cable</li> <li>1 x 1.5ft (0.5m) Male USB-C to Male USB-A Cable</li> <li>1 x 130W Power Supply with US, EU, & UK Plugs</li> <li>1 x Manual</li> </ul> |
| Country of Origin | China |
| Packaged Quantity | 1 |
| Power Source Type | Power Adapter |
| Ethernet Technology | Gigabit Ethernet |
| Number of HDMI Ports | 3 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 |
| Additional Information | Material: Housing: Plastic (ABS+PC), black, covered by soft silicone sheet |
| Number of DisplayPorts | 2 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | C2G54538 |
| Total Number of USB Ports | 6 |
| Number of USB Type-A Ports | 3 |
| Number of USB Type-C Ports | 3 |
| Operating System Supported | macOS |
| Manufacturer Website Address | http://www.legrand.us |
| Number of Displays Supported | 3 |
| Headphone/Microphone Combo Port | Yes |
