8PORT GIGABIT POE SWITCH DESKTOP POE SWITCH STEEL CASE

SKU: QZ6370VPN: TL-SG1008P

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Flexible Full Gigabit 8-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 64W, together w/ 4x Gigabit Non-PoE Port for high-speed connections.
Plug and Play: Easy setup with no software installation or configuration needed.
Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

What This Product Does

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works

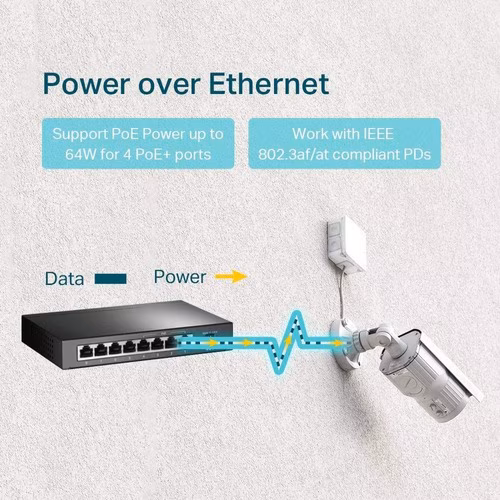

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

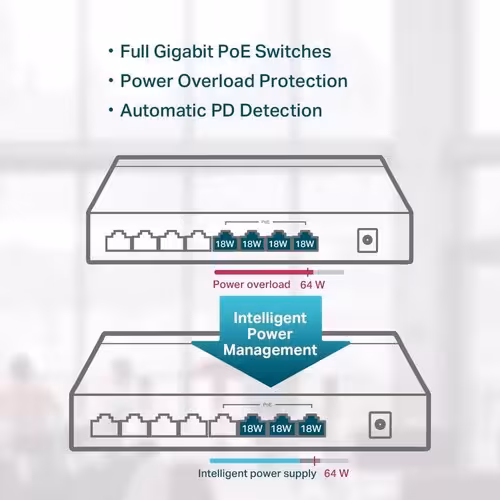

Overload Arrangement

TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Tech Specs

8PORT GIGABIT POE SWITCH DESKTOP POE SWITCH STEEL CASE specifications
USB	No
Depth	3.9"
Width	6.7"
Bypass	No
Height	1.1"
Modular	No
LRE Port	No
Brand Name	TP-Link
PoE Budget	64 W
Stack Port	No
Form Factor	Desktop
Uplink Port	No

Show all 41 specs

Manufacturer	TP-LINK Technologies Co., Ltd
Power Source	Power Adapter
Product Name	TL-SG1008P Ethernet Switch
Product Type	Ethernet Switch
Product Color	Black
Product Model	TL-SG1008P
Layer Supported	2
Management Port	No
Network (RJ-45)	Yes
Token Ring Port	No
Package Contents	<ul><li>TL-SG1008P Ethernet Switch</li><li>Power Adapter</li><li>User Guide</li></ul>
PoE (RJ-45) Port	Yes
Product Material	Metal
Power Consumption	5.40 W
Network Technology	10/100/1000Base-T
Ethernet Technology	Gigabit Ethernet
Media Type Supported	Twisted Pair
Networking Standards	IEEE 802.3x
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	TL-SG1008P
Certifications & Standards	<ul><li>CE</li><li>FCC</li></ul>
Number of PoE (RJ-45) Ports	4
Port/Expansion Slot Details	4 x Gigabit Ethernet PoE+
Twisted Pair Cable Standard	Category 6
Manufacturer Website Address	http://www.tp-link.com/us
Total Number of Network Ports	8
Number of Network (RJ-45) Ports	4
Redundant Power Supply Supported	No
