8PORT 1U RACKMOUNT DVI/USB KVM SWITCH W AUDIO AND 2PORT USB HUB

SKU: 2DD349VPN: B024-DUA8-SL

In Stock

$1,122.97$645.85

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
Supports 2.1-channel surround sound with full bass response
Also supports VGA display when connected to a DVI to VGA adapter
Expand the number of controlled computers by cascading up 3 levels of KVM switches
Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors
2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers
OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
Text-based interface offers direct access to every connected computer

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The B024-DUA8-SL DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.

Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite's P556-Series).

The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.

The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.

Tech Specs

8PORT 1U RACKMOUNT DVI/USB KVM SWITCH W AUDIO AND 2PORT USB HUB specifications
DVI	Yes
USB	Yes
VGA	Yes
Depth	6.3"
Width	17.2"
Height	1.7"
Brand Name	Tripp Lite series
Form Factor	Rack-mountable
Rack Height	1U
Manufacturer	Eaton Corporation
Product Name	B024-DUA8-SL DVI/USB 8-Port KVM Switch
Product Type	KVM Switchbox

Show all 29 specs

Input Voltage	230 V AC
Product Model	B024-DUA8-SL
TAA Compliant	Yes

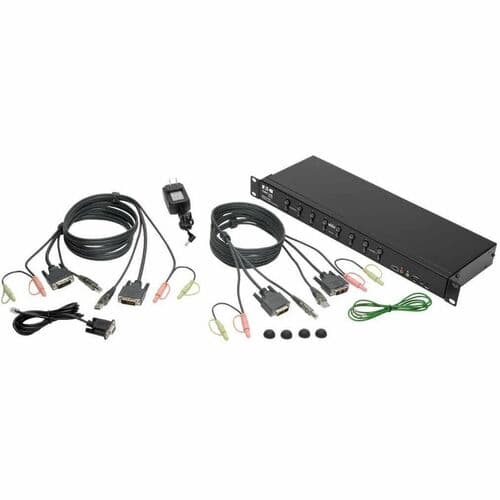

Package Contents	<ul> <li>B024-DUA8-SL DVI/USB 8-Port KVM Switch</li> <li>2 x DVI/USB KVM Cable Kits, 6 ft.</li> <li>External Power Supply w/NEMA 1-15P Plug and 5 ft. Cord (Input:100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)</li> <li>RJ11 to DB9 Firmware Upgrade Cable, 6 ft.</li> <li>Grounding Wire</li> <li>Rack-Mounting Hardware</li> <li>Rubber Feet</li> <li>Owner's Manual</li> </ul>
Country of Origin	Taiwan
Input Voltage Range	120V AC to 230V AC
Number of DVI Ports	9
Number of USB Ports	11
Number of VGA Ports	1
Weight (Approximate)	6.20 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	B024-DUA8-SL
Maximum Video Resolution	2048 x 1536
Manufacturer Website Address	http://www.eaton.com
Number of Computers Supported	8
Number of Local Users Supported	1
