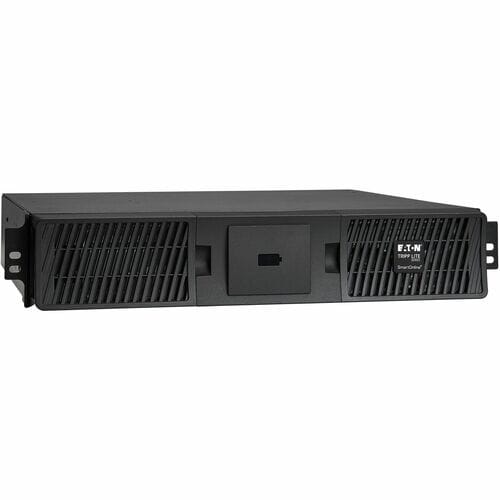

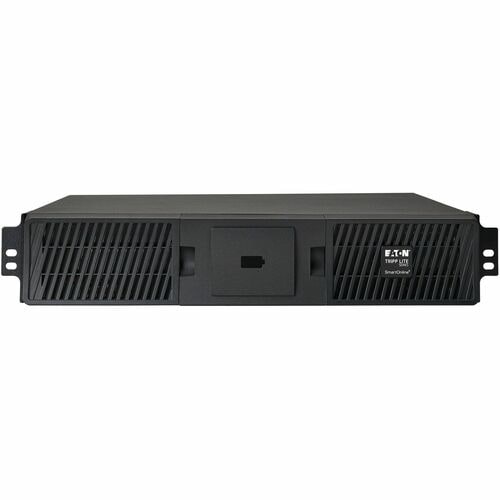

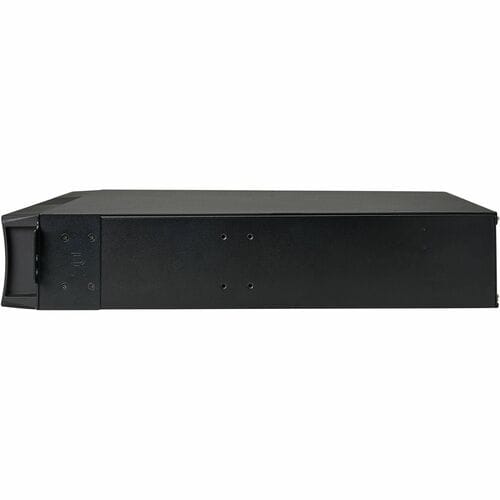

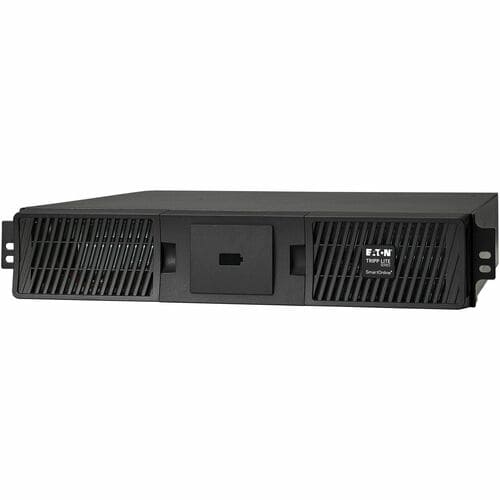

72V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 2URM TAA

SKU: S44473VPN: BP72RT2UTAA

In Stock

$916.84

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Connects to select SmartOnline® UPS systems to add critical runtime

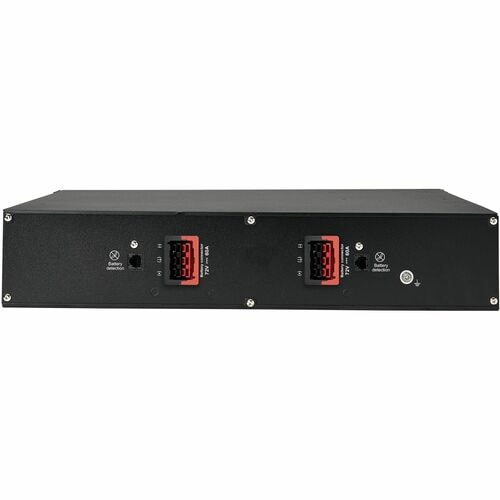

Includes heavy-gauge battery cabling with high-current 72V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime
Supports 2U rack mounting or upright tower installation with UPS system's accessories
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other network applications requiring TAA compliance.

Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime

The valve-regulated lead-acid (VRLA) BP72RT2UTAA offers extended battery runtime when used in conjunction with SU2200RTXLCD2UTAA or SU3000RTXLCD2UTAA SmartOnline UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Versatile Installation Options

You can mount the BP72RT2UTAA in 2U of space in an EIA-standard 19-inch rack using the included 4- post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands.

TAA-Compliant for GSA Schedule Purchases

The BP72RT2UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Tech Specs

72V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 2URM TAA specifications
Depth	23.8"
Width	17.3"
Height	3.4"
Brand Name	Tripp Lite series
Battery Size	Proprietary Battery Size
Manufacturer	Eaton Corporation
Product Name	BP72RT2UTAA Battery Unit
Product Type	Battery Unit
Compatibility	<p><strong>Tripp Lite SmartOnline UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SU2200RTXLCD2UTAA</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>SU3000RTXLCD2UTAA</li></ul>
Hot Swappable	Yes
Product Model	BP72RT2UTAA
TAA Compliant	Yes

Show all 24 specs

Output Voltage	72 V DC
Package Contents	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>BP72RT2UTAA Battery Unit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>External Battery Cable</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Quick Start Guide</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	Taiwan
Weight (Approximate)	86.40 lb
Battery Characteristics	Valve-regulated/User Replaceable
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Manufacturer Part Number	BP72RT2UTAA
Certifications & Standards	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>UL 1778</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cTUVus</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC</li></ul>
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	219.2°F (104°C)
Minimum Operating Temperature	89.6°F (32°C)
