6FT USB C TO DISPLAYPORT 4K ADAP CABLE USB TYPE C TO DP M/M
6FT USB C TO DISPLAYPORT 4K ADAP CABLE USB TYPE C TO DP M/M
Key Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Easy installation with plug-and-play operation-no software required
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

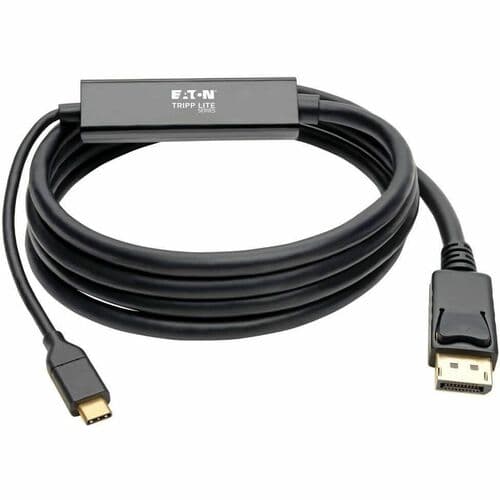

Connects a DisplayPort Display to Your USB-C or Thunderbolt 3 Device
This USB-C to DisplayPort 4K cable helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort-enabled monitor or projector. It's ideal for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 4K Video and Digital Audio
This six-foot cable supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, 36-bit Deep Color (12 bits per channel) and per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR). It also supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps. The cable is backward compatible with non-4K displays, so you can use a 1080p monitor if one is available.
Built-In USB-C Cable Connects in Either Direction

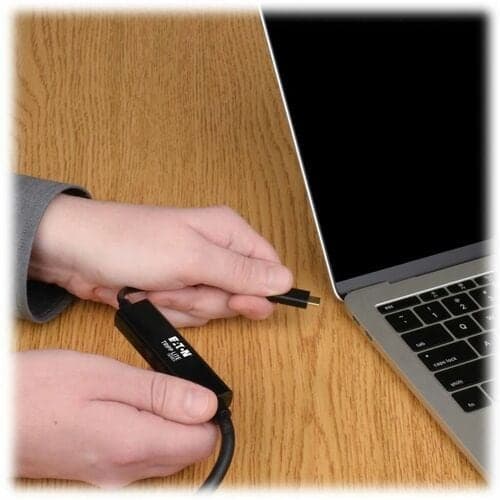

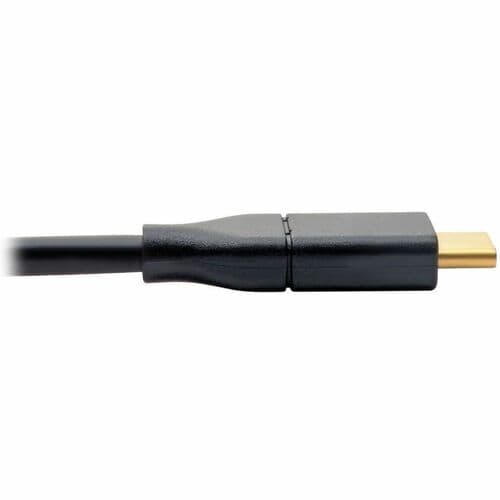

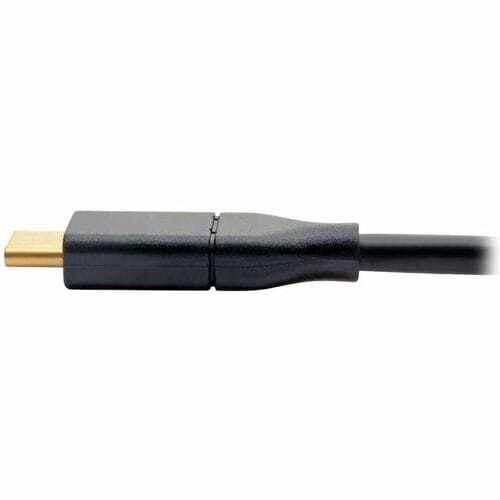

Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Premium Construction for Premium Performance

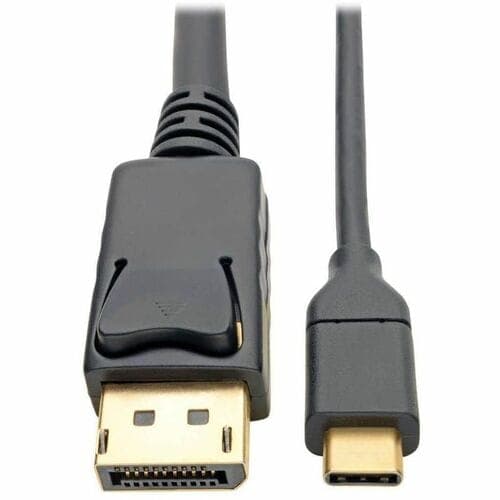

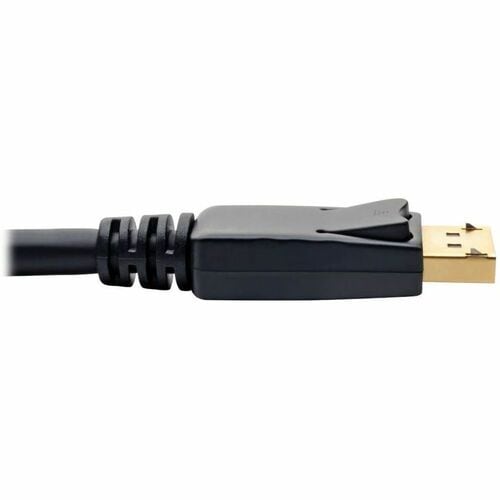

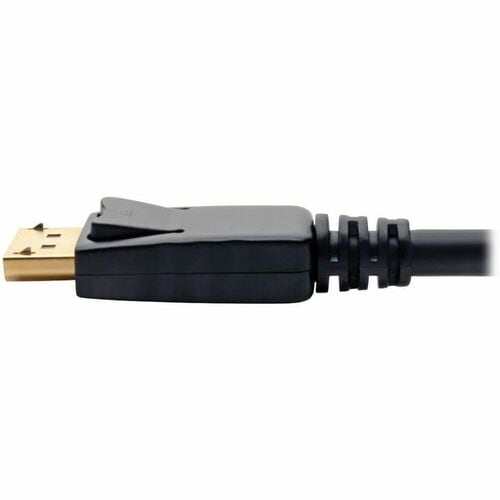

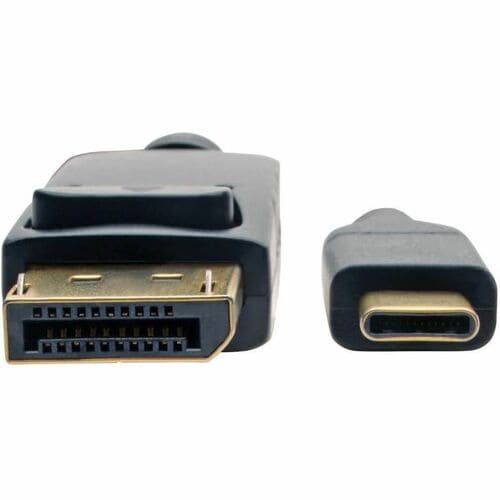

Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Molded gold-plated connectors with corrosion-resistant gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief reduces stress and helps the cable and connectors move freely without cracking.
Ready to Use Right Out of the Package
The plug-and-play USB-C to DisplayPort adapter requires no software, drivers or external power and works with both Windows and Mac operating systems. Just plug the USB-C end into your computer's USB-C or Thunderbolt 3 port, and plug the DisplayPort end into the display's input port for immediate satisfaction. The six-foot cable fits easily into a briefcase or laptop bag for connecting on the go.
3-Year Warranty and Environmentally Responsible Design
The U444-006-DP comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
Tech Specs
| Features | Molded |
|---|---|
| Shielding | Yes |
| Brand Name | Tripp Lite series |
| Cable Type | DisplayPort/USB |
| Cable Length | 6 ft |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Name | USB-C to DisplayPort Cable, 4K @ 60Hz, Thunderbolt 3, 6 ft. |
| Product Type | A/V Cable |
| Product Color | Black |
| Product Model | U444-006-DP |
| Shipping Width | 7" |
Show all 29 specsShow fewer
| Contact Plating | Gold |
|---|---|
| Shipping Height | 9" |
| Device Supported | Audio/Video Device |
| Connector Plating | Gold |
| Country of Origin | Vietnam |
| Data Transfer Rate | 5 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Weight (Approximate) | 0.23 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | U444-006-DP |
| Connector Type on First End | USB 3.1 Type C - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.eaton.com |
| Shipping Weight (Approximate) | 3.84 oz |
| Connector on First End Details | 1 x USB 3.1 Type C - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
