EATON TRIPP LITE SERIES CONNECTIVIT

6FT CAT5 CAT5E PATCH CABLE SNAGLESS MOLDED UTP WHITE RJ45 M/M

SKU: 9L0395VPN: N001-006-WH

6FT CAT5 CAT5E PATCH CABLE SNAGLESS MOLDED UTP WHITE RJ45 M/M

Key Features

  • For exceptional quality, upright compatibility and reliability use this network cable
  • Features Category 5e cable type for your convenience and desired usability
  • Minimized Near-End Crosstalk (NEXT) feature for better usability and increased efficiency
  • Computer device supported according to your requirements with maximum productivity
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

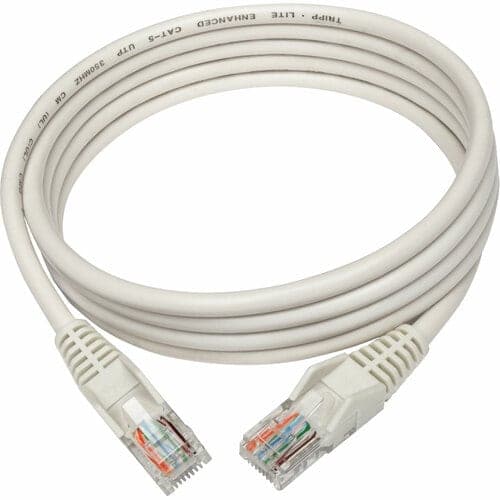

The N001-006-WH Cat5e 350 MHz Snagless Molded UTP Patch Cable (M/M) is recommended for connecting high-speed network components, such as computers, servers, printers, copiers, routers, Blu-ray players and switches, in high-density data centers. Designed for fast transmission and excellent signal quality, this six-foot white cable ensures peak performance throughout your Cat5/5e network.

Manufactured from 26 AWG copper wire that cuts down on interference, the four-pair stranded UTP N001-006-WH delivers speeds up to 350 MHz/1 Gbps. Near-end crosstalk levels are kept to a minimum. The RJ45 male connectors" snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Wrapped in a durable PVC jacket that resists corrosion, the N001-006-WH is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications. It meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (Cat5e draft 11).

Features

An Ideal Solution for High-Speed Cat5/5e Networking

  • Connects high-speed network components, such as computers, servers, printers, copiers, routers, Blu-ray players and switches
  • Designed for 1000Base-T, 10/100Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications
  • Provides high-speed connections up to 350 MHz/1 Gbps
  • Flawless signal delivery with minimal near-end crosstalk levels

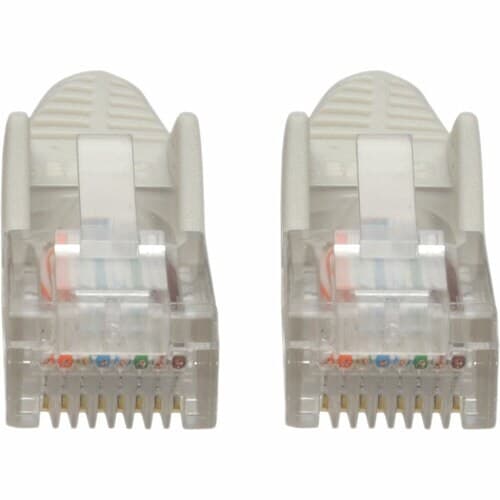

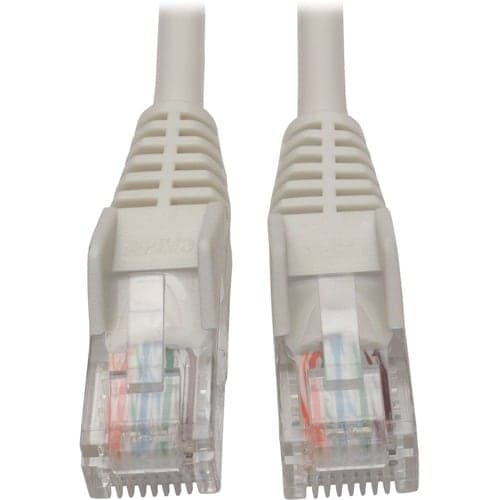

    • Snagless RJ45 Male Connectors

  • Molded snagless boots prevent locking tabs from damage during installation
  • Connectors and cable color-coded white for easy ID in crowded rack or panel

    • Premium Construction Ensures Excellent Performance

  • Manufactured from 26 AWG 4-pair stranded UTP
  • Gold-plated copper contacts for maximum conductivity and minimum data loss
  • Integral strain relief protects cable and connectors from stress and cracking
  • Durable corrosion-resistant PVC jacket
  • Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (Cat5e draft 11)

    • Tech Specs

    6FT CAT5 CAT5E PATCH CABLE SNAGLESS MOLDED UTP WHITE RJ45 M/M specifications
    FeaturesStrain Relief
    Boot TypeSnagless
    Brand NameTripp Lite series
    Cable TypeCategory 5e
    Cable Length6 ft
    Color FamilyWhite
    ManufacturerEaton Corporation
    Product NameCat5e 350 MHz Snagless Molded UTP Patch Cable (RJ45 M/M), White, 6 ft.
    Product TypeNetwork Cable
    Product ColorWhite
    Product ModelN001-006-WH
    Shipping Width7"
    Show all 28 specs
    Contact PlatingGold
    Shipping Height9"
    Device SupportedPhotocopier
    Country of OriginChina
    Data Transfer Rate1 Gbit/s
    American Wire Gauge26 AWG
    Cable CharacteristicPatch Cable
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    Environmentally FriendlyYes
    Manufacturer Part NumberN001-006-WH
    Connector Type on First EndRJ-45 Network - Male
    Connector Type on Second EndRJ-45 Network - Male
    Manufacturer Website Addresshttp://www.eaton.com
    Shipping Weight (Approximate)2.40 oz
    Connector on First End Details1 x RJ-45 Network - Male
    Connector on Second End Details1 x RJ-45 Network - Male
