65FT USB EXTENSION CABLE M/F USB 2.0 HI-SPEED ACTIVE REPEATER

SKU: LL8252VPN: U026-20M

Out of Stock

$151.19$56.37

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends and boosts the signal to any USB device cable without signal loss
Built-in repeater maintains USB signal quality
Ideal for connecting USB devices beyond the 16-ft. USB specification
Full 480Mbps Transfer rate and backward compatible to USB 1.1
Plug and Play. Compatible with all major operating systems

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

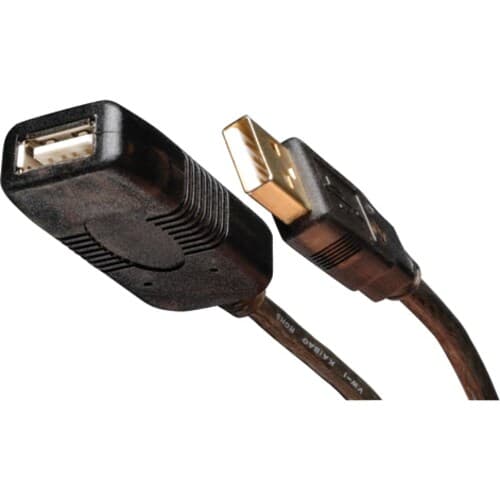

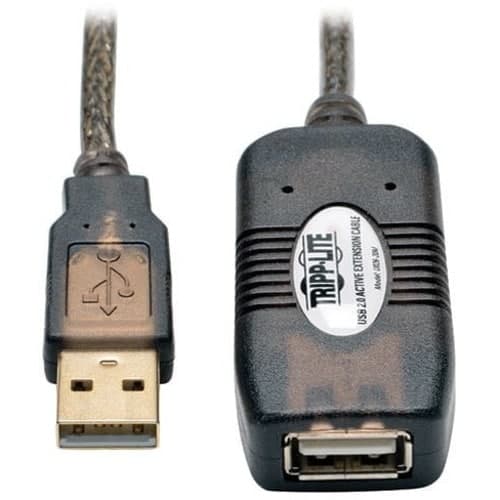

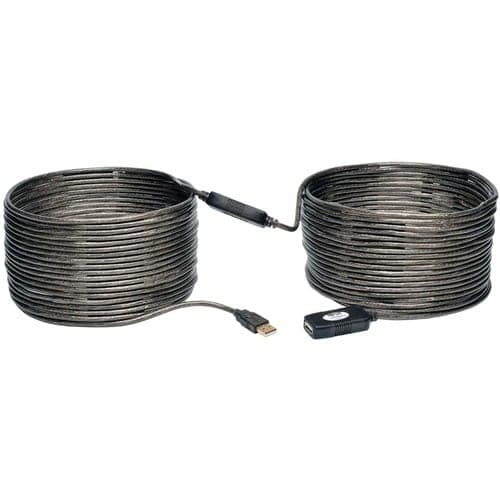

Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).

Features

Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.)
Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality
Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances
RoHS Compliance: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
Plug and Play Convenience: no software to load

Tech Specs

65FT USB EXTENSION CABLE M/F USB 2.0 HI-SPEED ACTIVE REPEATER specifications
Features	Strain Relief
Brand Name	Tripp Lite series
Cable Type	USB
Cable Length	65.60 ft
Color Family	Black
Manufacturer	Eaton Corporation
Product Name	USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.)
Product Type	Data Transfer Cable
Product Color	Black
Product Model	U026-20M
Shipping Width	15.70"
Shipping Height	13.80"

Show all 27 specs

Device Supported	USB Hub
Connector Plating	Gold
Country of Origin	China
Data Transfer Rate	480 Mbit/s
Cable Characteristic	Extension Cable
Additional Information	<ul><li>20 m. (65 ft.) USB2.0 Active Extension Cable, USB-A Male to USB-A Female</li><li>Full 480Mbps Transfer rate, as well as backward compatible to USB 1.1 ( 12Mbps )</li><li>Daisy Chain two cables for a total of 40 Meters ( 131ft )</li><li>Compatible with all major operating systems....Plug-and-Play; no software to load</li><li>The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-20M.</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	U026-20M
Connector Type on First End	USB 2.0 Type A - Male
Connector Type on Second End	USB 2.0 Type A - Female
Manufacturer Website Address	http://www.eaton.com
Shipping Weight (Approximate)	6.60 lb
Connector on First End Details	1 x USB 2.0 Type A - Male
Connector on Second End Details	1 x USB 2.0 Type A - Female
