5SC 750VA TOWER 120V
SKU: TC0561VPN: 5SC750

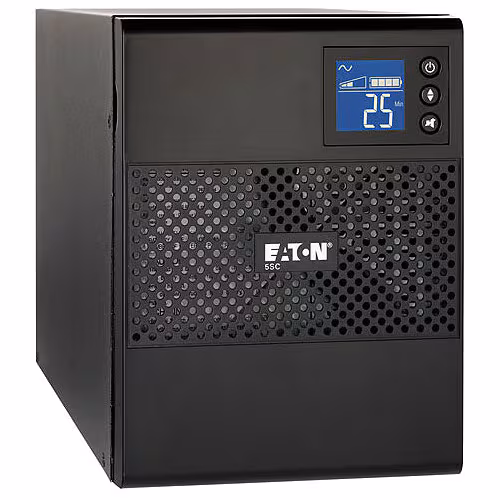

5SC 750VA TOWER 120V
Key Features
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Integrates with Intelligent Power Manager (IPM) for point-to-point power management (USB/serial) or network-based using server as a proxy. View Demo
- Offers user-replaceable batteries
- Extends battery service life by 50% with ABM technology
- Protects you with a three-year warranty, which includes the battery
- Corrects a wide range of input voltage variations through buck and boost operation
- Provides high quality pure-sinewave output capability, protecting any sensitive equipment connected ensuring consistent input voltage to the loads protected
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 13.4" |
| Width | 5.9" |
| Height | 8.2" |
| Brand Name | Eaton |
| Cord Length | 6 ft |
| Form Factor | Tower |
| Serial Port | Yes |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Name | 5SC UPS |
| Product Type | Line-interactive UPS |
Show all 39 specsShow fewer
| Hot Swappable | No |
|---|---|
| Input Voltage | 110 V AC |
| Product Color | Black |
| Output Voltage | 120 V AC |
| Product Family | 5SC |
| Product Series | 5SC |
| Sound Emission | 55 dB |
| Network (RJ-45) | Yes |
| Receptacle Type | NEMA 5-15R |
| Package Contents | <ul><li>5SC UPS</li><li>User manual CD</li><li>Intelligent Power Manager Software CD</li><li>USB cable</li><li>Serial Cable (RJ45 to DB9)</li><li>Important Safety Instructions</li><li>Limited Warranty Details</li></ul> |
| Battery Chemistry | Lead Acid |
| Country of Origin | Philippines |
| Receptacle Detail | 6 x NEMA 5-15R |
| Software Included | Intelligent Power Manager Software |
| Load Capacity (VA) | 750 VA |
| Plug/Connector Type | NEMA 5-15P |
| Load Capacity (Watt) | 525 W |
| Weight (Approximate) | 23.10 lb |
| Battery Characteristics | Maintenance-free, Sealed |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 5SC750 |
| Certifications & Standards | <ul><li>CE</li><li>cULus</li><li>NOM</li><li>IEC 62040-2:2006 Cat C2</li><li>CISPR22 Class A</li><li>FCC Part 15 Class A</li></ul> |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Manufacturer Website Address | http://www.eaton.com |
| Maximum Operating Temperature | 104°F (40°C) |
