5SC 1500G TOWER 208/240V
SKU: TC0566VPN: 5SC1500G

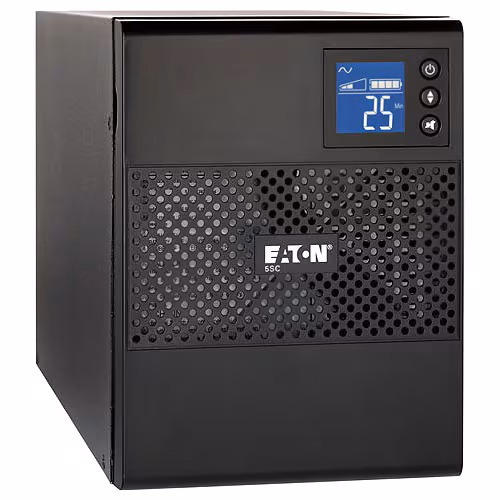

5SC 1500G TOWER 208/240V
Key Features
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Integrates with Intelligent Power Manager (IPM) for point-to-point power management (USB/serial) or network-based using server as a proxy. View Demo
- Offers user-replaceable batteries
- Extends battery service life by 50% with ABM technology
- Protects you with a three-year warranty, which includes the battery
- Corrects a wide range of input voltage variations through buck and boost operation
- Provides high quality pure-sinewave output capability, protecting any sensitive equipment connected ensuring consistent input voltage to the loads protected
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 16.1" |
| Width | 5.9" |
| Height | 8.2" |
| Brand Name | Eaton |
| Form Factor | Tower |
| Serial Port | Yes |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Name | 5SC UPS |
| Product Type | Line-interactive UPS |
| Hot Swappable | No |
Show all 38 specsShow fewer
| Input Voltage | 220 V AC |
|---|---|
| Product Color | Black |
| Output Voltage | 230 V AC |
| Product Family | 5SC |
| Product Series | 5SC |
| Sound Emission | 55 dB |
| Network (RJ-45) | Yes |
| Receptacle Type | IEC 60320 C13 |
| Package Contents | <ul><li>5SC UPS</li><li>User Manual CD</li><li>Intelligent Power Manager Software CD</li><li>USB Cable</li><li>Serial Cable (RJ45 to DB9)</li><li>Important Safety Instructions</li><li>2 x C13 to C14 Jumper Cables</li><li>Limited Warranty Details</li></ul> |
| Battery Chemistry | Lead Acid |
| Country of Origin | China |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Software Included | Intelligent Power Manager Software |
| Load Capacity (VA) | 1500 VA |
| Plug/Connector Type | IEC 60320 C14 |
| Load Capacity (Watt) | 1050 W |
| Weight (Approximate) | 33.50 lb |
| Battery Characteristics | Maintenance-free, Sealed |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 5SC1500G |
| Certifications & Standards | <ul><li>CE</li><li>cTUVus</li><li>C-Tick</li><li>Ghost</li><li>CCC</li><li>IEC 62040-2:2006 Cat C1</li><li>CISPR22 Class B</li><li>FCC part 15 Class B</li></ul> |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Manufacturer Website Address | http://www.eaton.com |
| Maximum Operating Temperature | 104°F (40°C) |
