4X2 DVI MATRIX SWITCH WITH AUDI O & RS-232 CONTROL

SKU: RP6531VPN: AC1125A

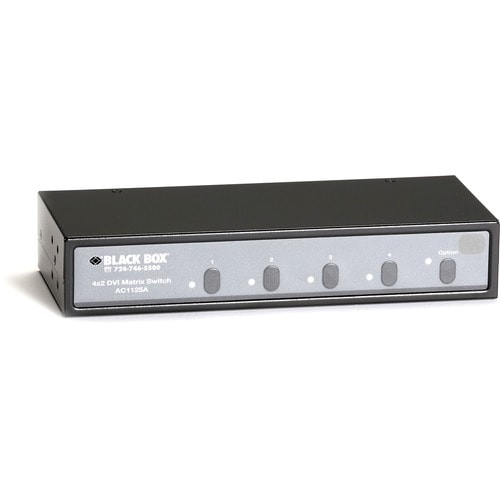

4X2 DVI MATRIX SWITCH WITH AUDI O & RS-232 CONTROL

Key Features

  • Routes 4 different DVI and audio signals to 2 different DVI monitors and speakers.
  • Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Switch using buttons on the front panel, with a PC connected via its RS-232 port, or by using the wireless remote control from up to 16.4 ft. (5 m) away.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Output high-def video and audio from separate sources to two displays. Switches both the video and audio directly. Turn the video and audio on or off at each individual port. Each output provides one video signal and one audio signal. Features Auto Scan and selectable scan time interval. 1U height saves rack space. Rackmount kit is available. System settings are automatically retained. Recover your previous settings after power blackouts.

Tech Specs

4X2 DVI MATRIX SWITCH WITH AUDI O & RS-232 CONTROL specifications
Depth3.8"
Width8.7"
DVI InYes
Height1.6"
DVI OutYes
Brand NameBlack Box
Form FactorRack-mountable
Serial PortYes
ManufacturerBlack Box Corporation
Product Name4x2 DVI Matrix Switch with Audio and RS-232 Control
Product TypeAudio/Video Switchbox
Audio Line InYes
Show all 31 specs
Input Voltage110 V AC
Product ModelAC1125A
Audio Line OutYes
Graphics ModesUXGA
Device SupportedSpeaker
Package Contents<li>4x2 DVI Matrix Switch with Audio and RS-232 Control</li><li> External Power Supply</li><li> Power Cord</li><li> Serial Control Cable</li><li> 1 x Set of Rubber Footpads</li><li> IR Extension Kit including</li><li> Remote Sensor with attached 6-ft. Cable</li><li> Sensor Holder</li><li> Mounting Plate</li><li> 2 x Screws</li>
Country of OriginTaiwan
Number of DVI Inputs4
Weight (Approximate)1.60 lb
Number of DVI Outputs2
Connectivity TechnologyCable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberAC1125A
Maximum Video Resolution1600 x 1200
Certifications & StandardsCE
Manufacturer Website Addresshttp://www.blackbox.com
Number of Displays Supported2
Number of Input Devices Supported4
