ATEN TECHNOLOGIES
4PORT SERIAL EXP BOX FOR VK2100
SKU: 9B1002VPN: VK224
4PORT SERIAL EXP BOX FOR VK2100
Key Features
- Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System
- Up to eight VK224 expansion boxes can be added to a single VK2100 Control Box
- Flexible Deployment: Connects to a VK2100 Control Box via an Ethernet connection
- ID Switch pairs the VK224 with a controller to instantly configure the network settings
- Supports Power over Ethernet (PoE) or DC power supply
- Firmware upgradable through USB or Web interface
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

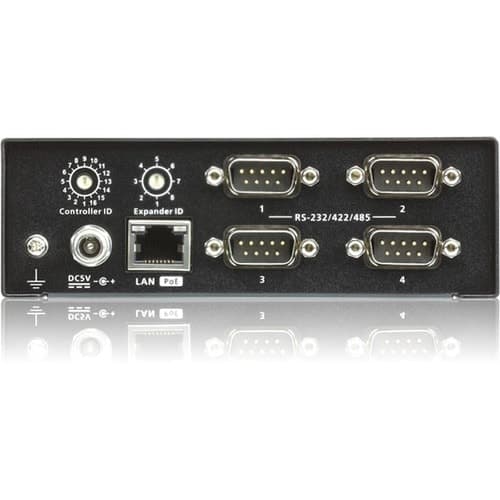

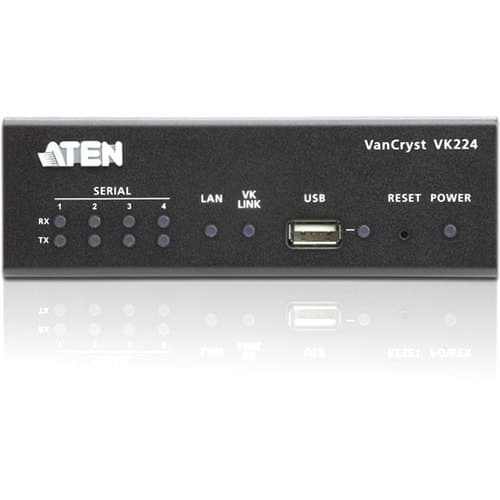

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
Tech Specs
| Width | 3" |
|---|---|
| Height | 1.7" |
| Brand Name | VanCryst |
| Form Factor | Rack-mountable |
| Manufacturer | ATEN Technology, Inc |
| Product Name | 4-Port Serial Expansion Box |
| Product Type | Serial Expansion Box |
| Compatibility | <b>Aten Control Systems:</b><br /> <ul> <li>VK1100</li> <li>VK2100</li> </ul> |
| Product Model | VK224 |
| Package Contents | <ul> <li>4-Port Serial Expansion Box</li> <li>1 x Power Adapter</li> <li>1 x Mounting Kit</li> <li>1 x User Instructions</li> </ul> |
| Product Material | Metal |
| Country of Origin | Taiwan |
Show all 18 specsShow fewer
| Packaged Quantity | 1 |
|---|---|
| Weight (Approximate) | 15.87 oz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | VK224 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
