STARTECH.COM

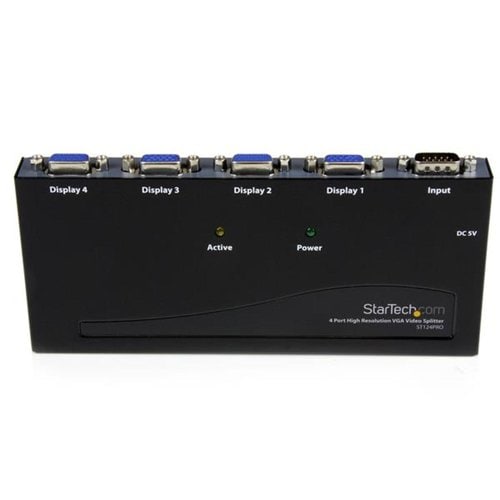

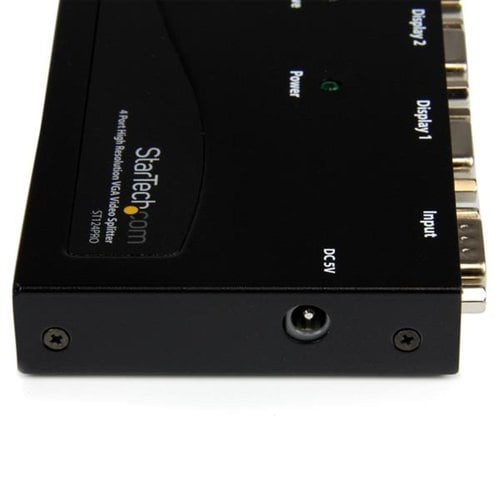

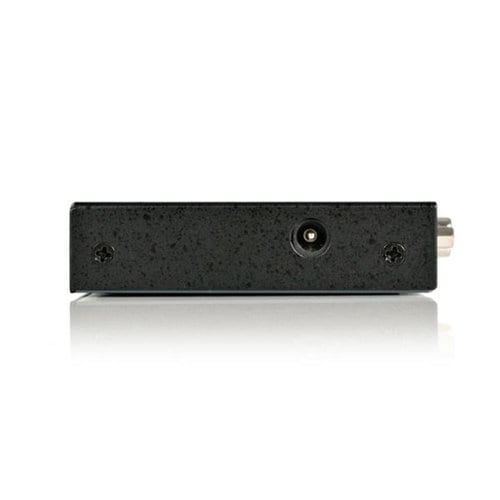

4PORT HIGH RES 300 MHZ SVGA VGA VIDEO SPLITTER
SKU: 006984VPN: ST124PRO
4PORT HIGH RES 300 MHZ SVGA VGA VIDEO SPLITTER
Key Features
- Allows 1 VGA video source to simultaneously display on 4 different monitors
- Supports resolutions up to 2048x1536 @ 80Hz
- High video bandwidth (350 MHz)
- Daisy chainable for almost unlimited expansion
- Maximum VGA cable length of 210ft (65m)
- Uses standard monitor extension cables (See Accessories)
- DDC compatible
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. Male to Female VGA extension cable required (MXT101HQ)
Tech Specs
| Width | 3.1" |
|---|---|
| Height | 0.8" |
| Length | 7.2" |
| VGA In | Yes |
| VGA Out | Yes |
| Brand Name | StarTech.com |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | 4 Port High Resolution VGA Video Splitter - 350 MHz |
| Product Type | Signal Splitter |
| Input Voltage | 120 V AC |
| Product Color | Black |
Show all 30 specsShow fewer
| TAA Compliant | Yes |
|---|---|
| Package Contents | <ul> <li>4 Port High Resolution VGA Video Splitter - 350 MHz</li> <li>4 x Rubber Feet</li> <li>1 x Power Adapter</li> <li>1 x Instruction Manual</li> </ul> |
| Product Material | Steel |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Number of VGA Inputs | 1 |
| Weight (Approximate) | 13.83 oz |
| Number of VGA Outputs | 4 |
| Additional Information | <ul><li>Daisy chainable for almost unlimited expansion</li><li>Uses standard monitor extension cables</li><li>DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)</li></ul> |
| Maximum Video Bandwidth | 350 MHz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ST124PRO |
| Maximum Video Resolution | 2048 x 1536 |
| Certifications & Standards | <ul><li>FCC Part 15 Class A</li><li>CE Mark</li></ul> |
| Maximum Operating Distance | 213.25 ft |
| Environmental Certification | EU RoHS |
| Manufacturer Website Address | http://www.startech.com |
