4 PORT SATA PCIE CARD ADAPTER PCIE SATA EXPANSION CONTROLLER

SKU: 9ZX023VPN: 4P6G-PCIE-SATA-CARD

In Stock

$51.36

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

SATA Controller offers maximum storage productivity with added dependability
Serial ATA/600 controller type for faster, efficient data transfer rates with maximum dependability
Server device support for enhanced storage efficiency and productive data transfer capability
Windows 7 OS support offers higher security with increased encryption options to better accommodate your needs
PCI Express 3.0 x4 host interface for reliable data transfer and enhanced performance
Plug-in Card form factor allows hassle-free and easy usage with increased efficiency
SATA Controller provides a larger storage expansion base capacity for your PC

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

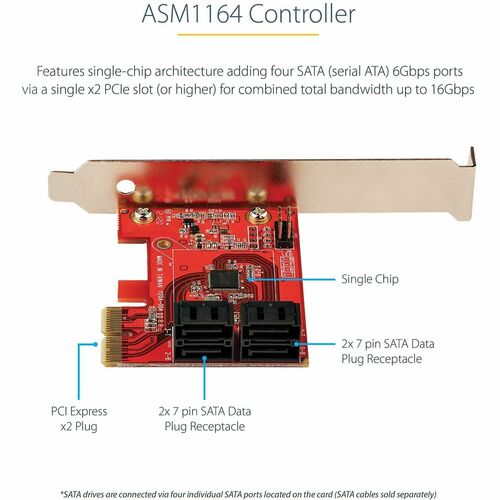

ASM1164 to Deliver 4-Port SATA 6Gbps Performance

Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

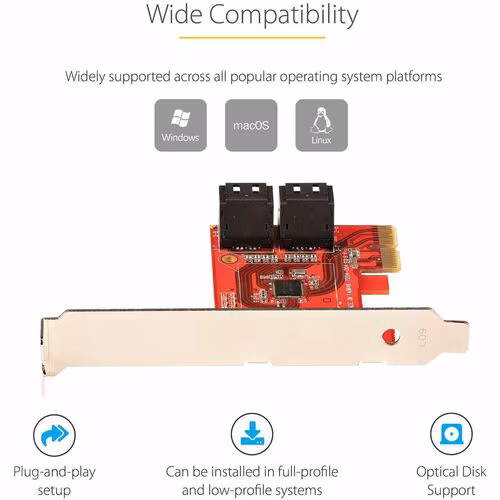

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

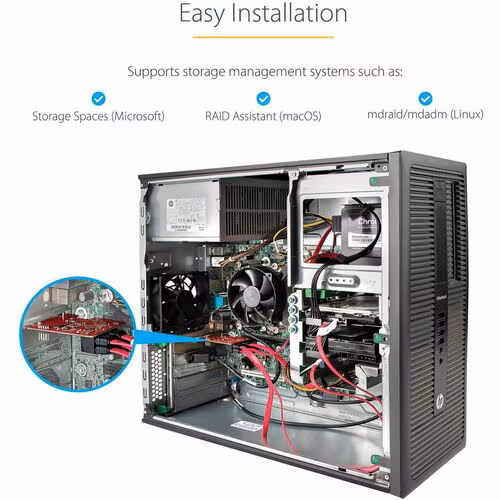

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

Tech Specs

4 PORT SATA PCIE CARD ADAPTER PCIE SATA EXPANSION CONTROLLER specifications
Width	2.2"
Height	0.6"
Length	2.8"
Brand Name	StarTech.com
Form Factor	Plug-in Card
Manufacturer	StarTech.com
Product Name	PCIe SATA Card
Product Type	SATA Controller
Host Interface	PCI Express 3.0 x4
RAID Supported	No
Controller Type	Serial ATA/600
Device Supported	Server

Show all 23 specs

Package Contents	<ul> <li>PCIe SATA Card</li> <li>Full-Profile Bracket (Installed)</li> <li>Low-Profile Bracket</li> <li>Quick-Start Guide</li> </ul>
Country of Origin	Taiwan
Platform Supported	Linux
Weight (Approximate)	2.65 oz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	4P6G-PCIE-SATA-CARD
Operating System Supported	Windows Server 2019
Total Number of SATA Ports	4
Manufacturer Website Address	http://www.startech.com
Number of SATA Ports (Internal)	4
