ADESSO INNOVATION- GYRATION

4 CHL POE+ NVR W/2 TB HDD 1 2TB HDD

SKU: 00HB89VPN: CYBERVIEW N4-2TB

4 CHL POE+ NVR W/2 TB HDD 1 2TB HDD

Key Features

  • Supports Ultra 265/H.265/H.264 video compression formats
  • 4-channel input
  • Compatible with third-party IP cameras supported with ONVIF conformance to: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI and 1-ch VGA output simultaneously
  • Records HDMI at up to 4K(3840x2160) resolution
  • 1 SATA HDD up to 6TB (sold separately)
  • ANR technology enhances the storage reliability when the network is disconnected
  • Supports detection features such as face, intrusion, cross line, audio, defocus, scene change, auto-tracking, object left behind, and object removed. Also offers face search, behavior search, and people counting.
  • Supports cloud-based frmware upgrades
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

4 Channel

Connect up to 4 cameras for complete video surveillance of selected property.

4K Ultra High Definition


Ability to record in 4K Ultra HD image quality for high resolution surveillance.

H.265

Video compression standard for 4K video surveillance.

ONVIF


Standardized interface for effective interoperability of IP-based physical security products.

HDMI & VGA

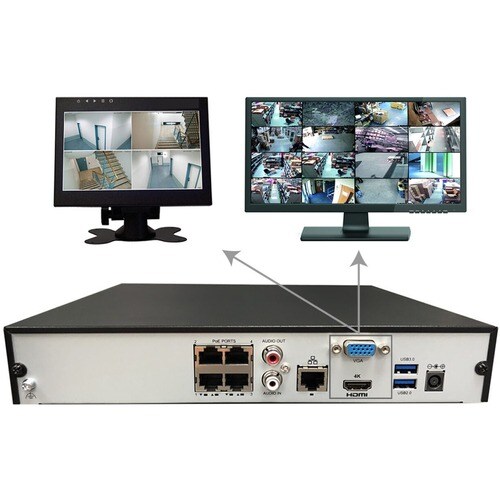

Provides simultaneous delivery of HDMI and VGA output for multiple monitoring needs.

Cloud Upgradeable

Store surveillance footage remotely without worrying about on-site storage capacity.

Key Features:

  • Supports Ultra 265/H.265/H.264 video compression formats
  • 4-channel input
  • Compatible with third-party IP cameras supported with ONVIF conformance to: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI and 1-ch VGA output simultaneously
  • Records HDMI at up to 4K(3840×2160) resolution
  • 1 SATA HDD up to 6TB (sold separately)
  • ANR technology enhances the storage reliability when the network is disconnected
  • Supports detection features such as face, intrusion, cross line, audio, defocus, scene change, auto-tracking, object left behind, and object removed. Also offers face search, behavior search, and people counting. Supports cloud-based firmware upgrades

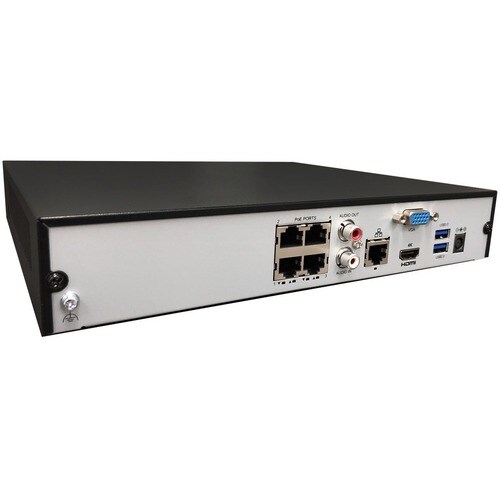

The Gyration CyberView N4 Network Video Recorder (NVR) supports up to four (4) IP cameras and provides up to 4K high-definition recording for your IP video surveillance applications. It is also compatible with Ultra 265, H.265, and H.264 video compression formats. The CyberView N4 is ideal for a variety of circumstances where image details are critical for identification, such as residential areas,
retail stores, businesses, office buildings, hotels, transportation hubs, and many more. The embedded programming allows for centralized management of your IP camera settings, including configuration, information import/export, real-time information display, two-way audio, firmware upgrades, etc.

Tech Specs

4 CHL POE+ NVR W/2 TB HDD 1 2TB HDD specifications
USBYes
HDMIYes
Depth9.4"
Width10.2"
Height1.9"
EthernetYes
Brand NameGyration
NVR Weight2.20 lb
HD RecordingYes
ManufacturerAdesso, Inc
Product Name4-Channel Network Video Recorder With PoE
Product TypeVideo Surveillance Station
Show all 29 specs
Video FormatsH.264
Number of VGA Out1
Power Consumption9 W
Recording Formats4K
Remote ManagementYes
System ComponentsNetwork Video Recorder
Maximum Frame Rate30 fps
Maximum Resolution4K
Hard Drive Capacity2 TB
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCYBERVIEW N4-2TB
Total Number of Channels4
Manufacturer Website Addresshttp://www.adesso.com
Total Number of Audio In Ports1
Total Number of Audio Out Ports1

Datasheets & Resources
