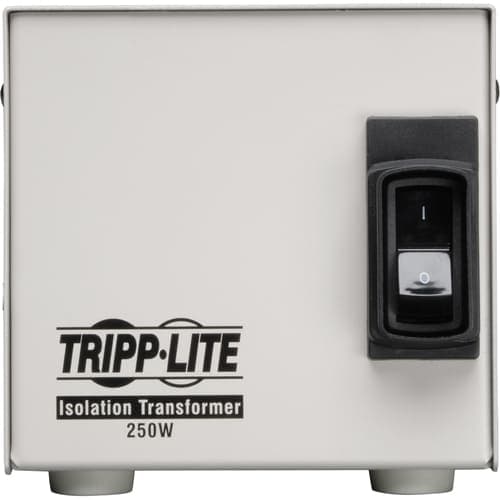

250W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 2 OUT UL60601-1

SKU: C77199VPN: IS250HG

In Stock

$448.24$266.20

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

250W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 2 OUT... Key Features

Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
250 watts, 2 outlets, 6-ft. power cord
Hospital-grade plug and receptacles
Leakage current less than 100 microamps
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

250W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 2 OUT... Overview

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE

250W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 2 OUT... Tech Specs

250W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 2 OUT UL60601-1 specifications
Depth	7.8"
Width	4.8"
Height	4.5"
Brand Name	Tripp Lite series
Form Factor	Tower
Manufacturer	Eaton Corporation
Power Rating	250 VA
Product Name	Isolator IS250HG Isolation Transformer
Product Type	Isolation Transformer
Input Voltage	120 V AC
Product Model	IS250HG
TAA Compliant	Yes

Show all 23 specs

Output Voltage	120 V AC
Package Contents	<ul><li>IS250HG</li><li>IS250HG Isolation Transformer</li><li>Instruction manual with warranty information</li></ul>
Country of Origin	Taiwan
Output Receptacles	NEMA 5-15R
Maximum Line Current	2.10 A
Additional Information	<ul><li>Transformer Type: Medical grade, low impedance transformer-based line isolation transformer</li><li>Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops</li><li>Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode</li><li>Suppression Joule Rating: 680 (510 input/170 output)</li><li>Leakage Current: As low as 100 microamps</li><li>Noise Suppression Rating: 35 to 65 DB</li><li>Total Harmonic Distortion: Less than 1%</li><li>Over Current Protection: 2A circuit breaker</li><li>Cooling Method: Convection</li><li>Efficiency: 96%</li><li>Let-through Voltage (Ring Wave):</li></ul><ul><li>L-N: 20 V</li><li>L-G: 20 V</li><li>N-G: 0.5 V</li></ul><ul><li>Let-through Voltage (Combination Wave):</li></ul><ul><li>L-N: 250 V</li><li>L-G: 250 V</li><li>N-G: 0.5 V</li></ul>
Output Receptacle Type	NEMA 5-15R
Manufacturer Part Number	IS250HG

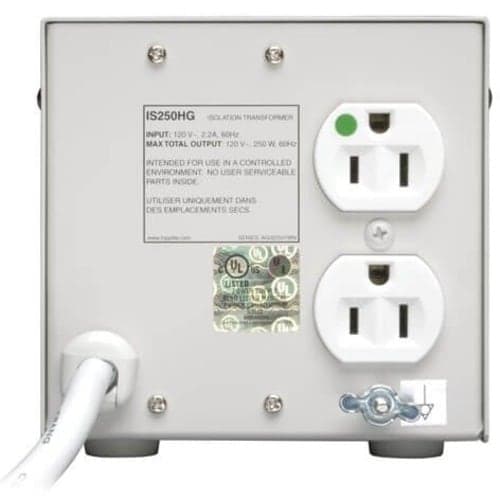

Output Receptacle Detail	2 x NEMA 5-15R
Certifications & Standards	<ul><li>cUL</li><li>UL 2601-1</li><li>UL (UL Series AGIS250YWN)</li></ul>
Manufacturer Website Address	http://www.eaton.com
