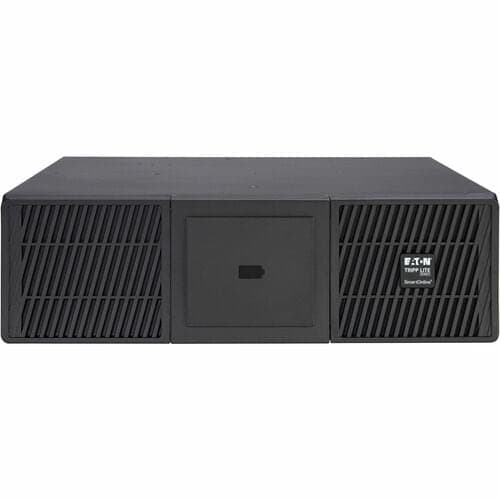

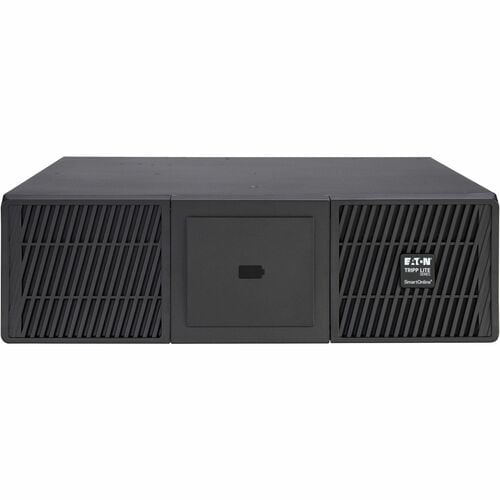

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM TAA

SKU: S44471VPN: BP180RT3UTAA

In Stock

$2,658.12$1,528.74

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM... Key Features

Connects to SU6000RT3UTAA SmartOnline® UPS system to add critical runtime

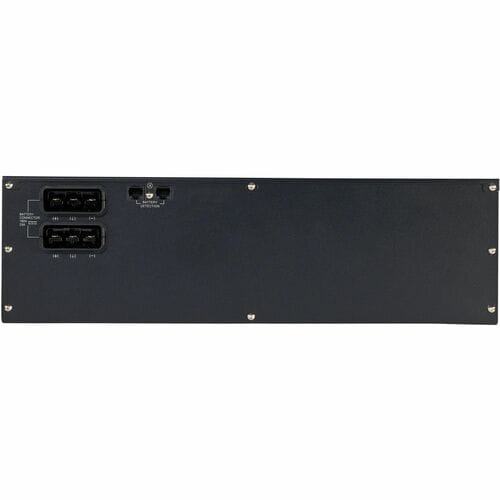

Includes heavy-gauge battery cabling with high-current 180V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime
Supports 3U rack mounting or upright tower installation with included support stands
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM... Overview

Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other network applications requiring TAA compliance.

Features

Backup Battery Module Gives Your Compatible UPS System Extended Runtime

The valve-regulated lead-acid (VRLA) BP180RT3UTAA offers extended battery runtime when used in conjunction with the SU6000RT3UTAA SmartOnline UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Versatile Installation Options

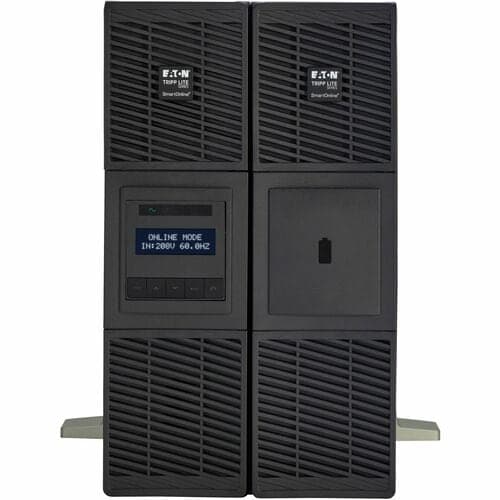

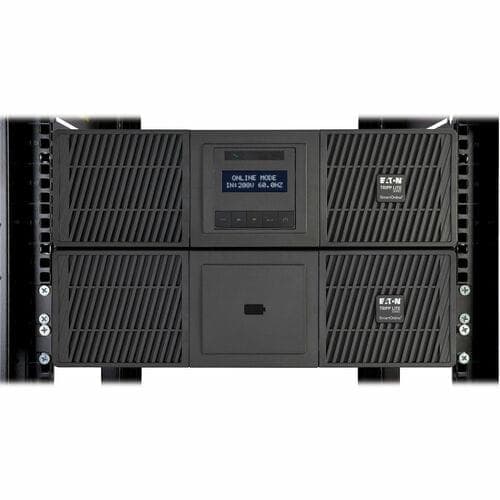

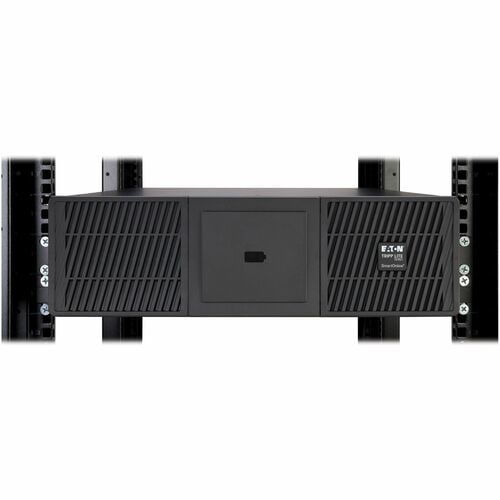

You can mount the hot-swappable BP180RT3UTAA in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands.

TAA-Compliant for GSA Schedule

Purchases The BP180RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM... Tech Specs

180V EXTENDED BATTERY MODULE SMARTONLINE UPS SYSTEMS 3URM TAA specifications
Depth	25.4"
Width	17.3"
Height	5.1"
Brand Name	Tripp Lite series
Energy Star	Yes
Battery Size	Proprietary Battery Size
Manufacturer	Eaton Corporation
Product Name	BP180RT3UTAA Battery Unit
Product Type	Battery Unit
Compatibility	Tripp Lite SU6000RT3UTAA SmartOnline UPS
Hot Swappable	Yes
Product Model	BP180RT3UTAA

Show all 25 specs

TAA Compliant	Yes
Output Voltage	180 V DC
Package Contents	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>BP180RT3UTAA Battery Unit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span> External Battery Cable </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span> Rack-Mounting Hardware </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Tower Support Stands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Quick Start Guide</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	Taiwan
Weight (Approximate)	150 lb
Battery Characteristics	Valve-regulated/User Replaceable
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	BP180RT3UTAA
Certifications & Standards	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>UL 1778</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cTUVus</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC</li></ul>
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
