180V EXTENDED BATTERY MODULE FOR SMART ONLINE UPS 3U RACK/TOWER

SKU: JM6089VPN: BP180RT

In Stock

$1,620.93

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Connects to select expandable SmartOnline UPS systems to add critical runtime

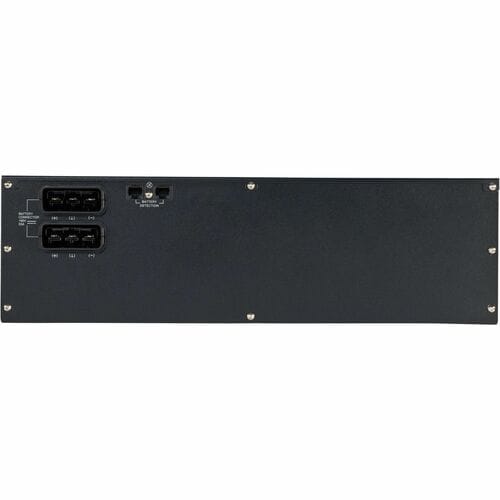

Includes heavy-gauge battery cabling with high-current 180V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime
Supports 3U rack mounting or upright tower installation with included accessories
2-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Backup Battery Module Gives Your Compatible UPS System Extended Runtime

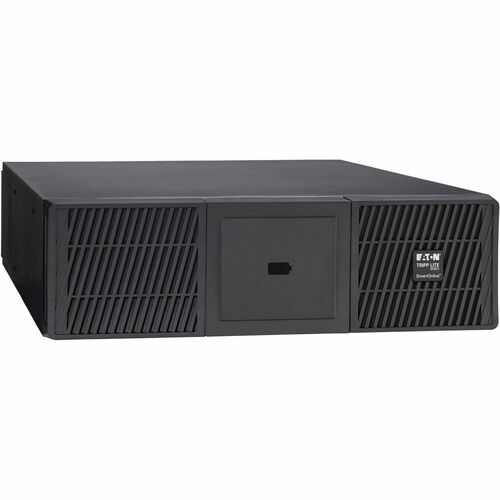

The valve-regulated lead-acid (VRLA) BP180RT offers extended battery runtime when used in conjunction with select 5kVA to 6kVA SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Versatile Installation Options

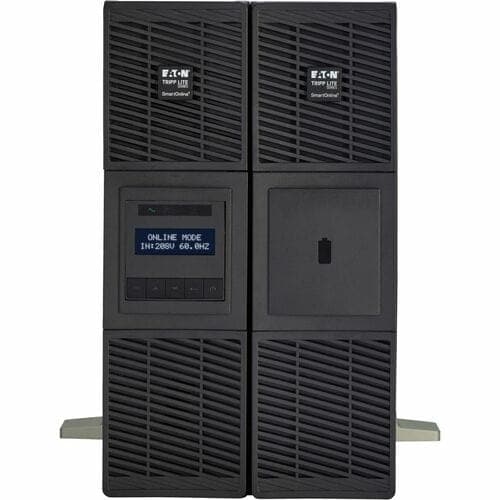

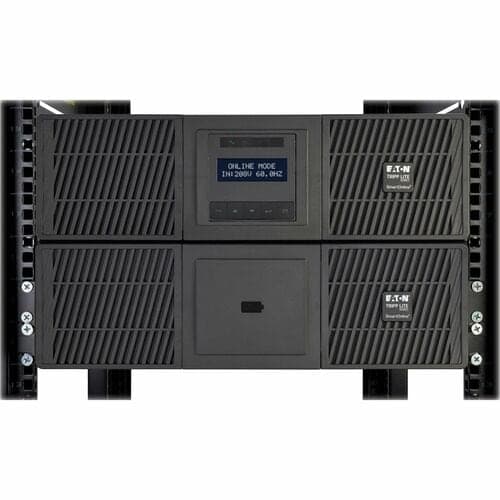

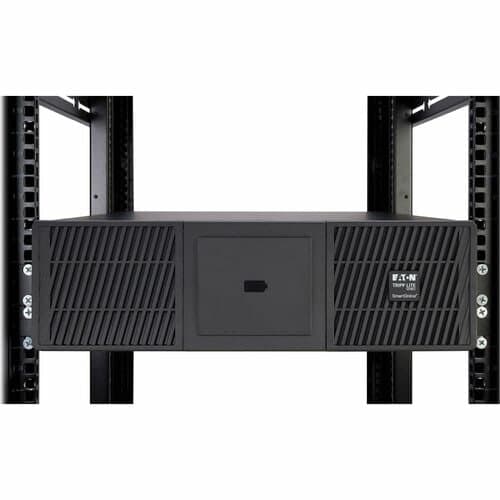

You can mount the hot-swappable BP180RT in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands.

Tech Specs

180V EXTENDED BATTERY MODULE FOR SMART ONLINE UPS 3U RACK/TOWER specifications
Depth	25.4"
Width	17.3"
Height	5.1"
Brand Name	Tripp Lite series
Energy Star	Yes
Battery Size	Proprietary Battery Size
Manufacturer	Eaton Corporation
Product Name	BP180RT UPS Battery Pack
Product Type	UPS Battery Pack
Compatibility	<p><b>Eaton UPS Systems:</b></p><ul><li> SU5000RT</li><li> SU5000RTMB</li><li> SU5000RTF</li><li> SU5000RTFMB </li><li> SU6000RT</li><li> SU6000RTMB</li><li> SU6000RTF</li><li> SU6000RTFMB</li></ul>
Hot Swappable	Yes
Product Model	BP180RT

Show all 25 specs

Output Voltage	180 V DC
Package Contents	<ul><li> 180V Extended Battery Module</li><li> External Battery Cable, 1 ft. (0.3 m)</li><li> Rack-mounting Hardware</li><li> Tower Support Stands</li><li> Quick Start Guide</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	Philippines
Weight (Approximate)	150 lb
Battery Characteristics	Valve-regulated/Sealed
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	BP180RT
Certifications & Standards	<ul><li> cUL </li><li> EN 62040-2</li><li> NOM</li></ul>
Manufacturer Website Address	http://www.eaton.com
Maximum Operating Temperature	219.2°F (104°C)
Minimum Operating Temperature	86°F (30°C)
