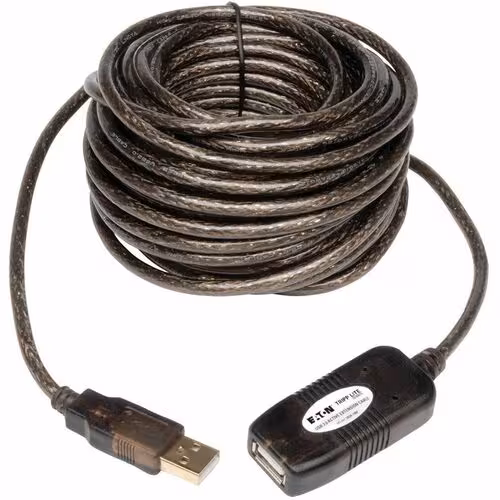

16FT USB EXTENSION CABLE M/F USB 2.0 HI-SPEED ACTIVE USB-A CABLE

SKU: D77685VPN: U026-016

In Stock

$58.79$23.28

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extend a USB 2.0 signal passed the 16-ft. (4.88 m) distance limitation
Works together with standard USB 2.0 cables
Bus powered signal booster
Daisychain up to 5 cables to extend the signal up to 80-ft. (24.38 m) passed the 16-ft. (4.88 m) distance limitation
The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's 16-ft. USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80ft by daisy chaining up to 5 of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard 6' 10' or 15' USB cable to reach the desired distance.

Tech Specs

16FT USB EXTENSION CABLE M/F USB 2.0 HI-SPEED ACTIVE USB-A CABLE specifications
Features	Double Shielded
Conductor	Copper
Shielding	Yes
Brand Name	Tripp Lite series
Cable Type	USB
Cable Length	16 ft
Color Family	Black
Jacket Color	Black
Manufacturer	Eaton Corporation
Product Name	USB 2.0 Active Extension Repeater Cable (A M/F), 16 ft. (4.88 m)
Product Type	Data Transfer Cable
Compatibility	<ul><li>USB Hub</li></ul>

Show all 31 specs

Product Color	Black
Product Model	U026-016
Shipping Width	4.50"
Contact Plating	Gold
Shipping Height	1"
Package Contents	<ul><li>USB 2.0 Extension Cable</li><li>16-ft. USB AA 2.0 Certified Active Extension Cable USB-A F/M</li></ul>
Country of Origin	China
Shielding Material	Tinned Copper Braid
American Wire Gauge	28/22 AWG
Cable Characteristic	Extension Cable
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	U026-016
Connector Type on First End	USB 2.0 Type A - Male
Connector Type on Second End	USB 2.0 Type A - Female
Manufacturer Website Address	http://www.eaton.com
Shipping Weight (Approximate)	6.40 oz
Connector on First End Details	1 x USB 2.0 Type A - Male
Connector on Second End Details	1 x USB 2.0 Type A - Female
