CYBERPOWER

1500VA/900W MINI-TOWER AVR UPS 12 OUTLET LCD SERIAL/USB 3YR WTY

SKU: 9GM096VPN: CP1500AVRLCDTAA

1500VA/900W MINI-TOWER AVR UPS 12 OUTLET LCD SERIAL/USB 3YR WTY

Key Features

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6ft. cord
  • Communication: USB, Serial
  • Data line protection: Ethernet, Coaxial
  • Management software: PowerPanel® Personal
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCDTAA provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and VoIP phone systems. The CP1500AVRLCDTAA uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCDTAA comes with a three-year warranty (including coverage of batteries), a $500,000 Connected Equipment Guarantee, and complies with the U.S. Trade Agreement Act (TAA).

Tech Specs

1500VA/900W MINI-TOWER AVR UPS 12 OUTLET LCD SERIAL/USB 3YR WTY specifications
AVRYes
AlarmBattery Mode

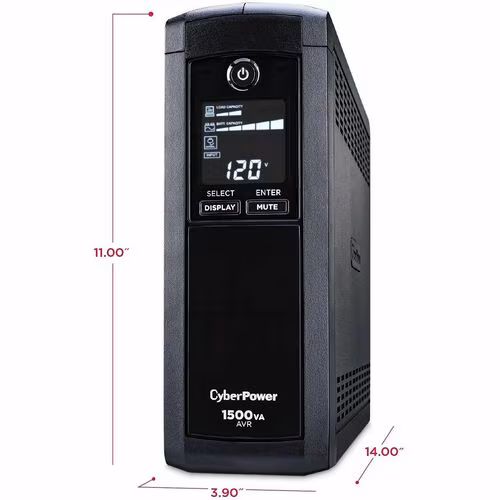

Depth14"
Width3.9"
Height11"
Brand NameCyberPower
Cord Length6 ft
Energy StarYes
Form FactorMini-tower
Serial PortYes
Battery Size12V
Color FamilyBlack
Show all 64 specs
ManufacturerCyberPower Systems, Inc
Product NameCP1500AVRLCDTAA TAA Compliant UPS System
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS Bypass Technology
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1500AVRLCDTAA
TAA CompliantYes
Transfer Time4 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilyTAA Compliant UPS & Hardware
Product SeriesTAA Compliant UPS & Hardware
Input Frequency63 Hz
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Application/UsageDesktop Computer
Battery ChemistryLead Acid
Country of OriginTaiwan
Product ConditionNew

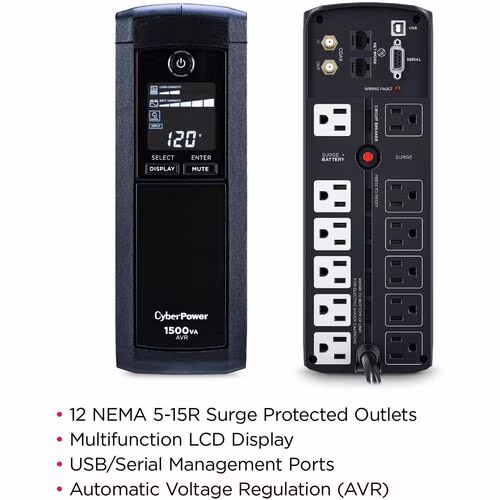

Receptacle Detail12 x NEMA 5-15R
Status Indicators<b>LED Indicators:</b><br /> <ul> <li>Power On</li> </ul>
Load Capacity (VA)1500 VA
Network ManagementUSB
Dataline ProtectionRJ-45
Input Voltage Range90 V AC - 142 V AC
Number of Batteries2
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1500 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)900 W
Weight (Approximate)25 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X2</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 3 min</li><li>Runtime at Half Load : 12 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.9 x 11 x 14 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)</li><li>Weight (kg) : 11.34</li><li>Weight (lb) : 25</li><li>Shipping Dimensions - (WxHxD) (cm) : 20.07 x 37.47 x 44.45 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 7.9 x 14.75 x 17.5 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 200.66 x 374.65 x 444.5 (mm)</li><li>Shipping - Weight (kg) : 11.79</li><li>Shipping - Weight (lb) : 26.0</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 90 VAC - 142 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 6</li><li>Outlets - Surge-Only Protected : 6</li><li>Outlets - Total : 12</li><li>Outlet Type COMPUTED : 12 - NEMA 5-15R</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +10%</li><li>USB Charge Port : No</li><li>VA : 1500 VA</li><li>Watts : 900 W</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778|cUL 107 5th|FCC Class B</li><li>CEG Amount : $500000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1500AVRLCDTAA
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & Standards<ul> <li>UL1778</li> <li>cUL 107 5th</li> <li>FCC Class B</li> </ul>
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)12 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets6
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets6
