14 OUTLET RACKMOUNT PDU W TVSS 3000J 1URM 15FT CORD

SKU: 496655VPN: DRS-1215

In Stock

$111.53

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

14 outlets / 15-ft. cord
3000 joule rating
Adjustable rackmount hardware

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

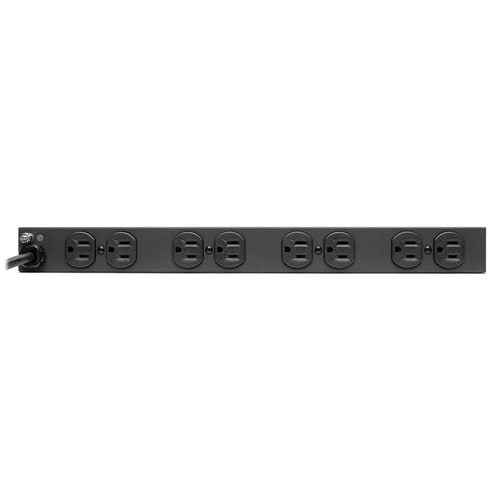

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15-ft. (4.57 m) AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 14 NEMA5-15R (6 front & 8 rear)

ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)

SUPPRESSION: AC: 140V RMS Clamping/3000 joules

FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Features

Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
3000 joules AC surge suppression with EMI/RFI filtering
14 NEMA 5-15R output receptacles (6 front/8 rear)
15-ft. (4.57 m) AC cord with NEMA 5-15P straight-in plug connection
Diagnostic LED confirms suppressor operation
Lighted power switch confirms power on/off status
Snap-in switch guard prevents accidental turn off
15 amp capacity with circuit breaker
120V AC, 50/60Hz electrical compatibility

Tech Specs

14 OUTLET RACKMOUNT PDU W TVSS 3000J 1URM 15FT CORD specifications
Depth	4"
Width	17.5"
Height	1.8"
Brand Name	Tripp Lite series
Form Factor	Rack-mountable
Receptacles	14 x NEMA 5-15R
Color Family	Black
Manufacturer	Eaton Corporation
Product Name	DRS-1215 14 Outlets 120V Surge Suppressor
Product Type	Surge Suppressor/Protector
Compatibility	<ul><li>Ideal for protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio/video, security and sound reinforcement</li></ul>
Input Voltage	120 V AC

Show all 31 specs

Product Color	Black
Output Voltage	120 V AC
Power Handling	1800 VA
Circuit Breaker	Yes
Protection Type	Surge
Package Contents	<ul> <li>DRS-1215 14 Outlets 120V Surge Suppressor</li> <li>Warranty information</li> <li>Instruction manual</li> </ul>
Product Material	Metal
Country of Origin	Vietnam
Plug/Connector Type	NEMA 5-15P
Surge Energy Rating	3000 J
Maximum Line Current	15 A
Weight (Approximate)	4.60 lb
Additional Information	<ul><li>Snap-in switch guard prevents accidental turn off</li></ul>
Power Cord/Cable Length	15 ft
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	DRS-1215
Certifications & Standards	<ul><li>UL1449 (Let through rating 330V)</li><li>cUL</li><li>IEEE 587 category A and B specifications</li></ul>
Manufacturer Website Address	http://www.eaton.com
