EATON TRIPP LITE SERIES CONNECTIVIT

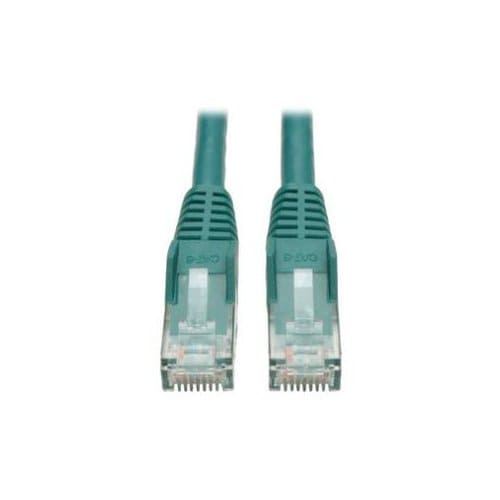

10FT CAT6 PATCH CABLE M/M GREEN GIGABIT MOLDED SNAGLESS PVC RJ45

SKU: 601392VPN: N201-010-GN

10FT CAT6 PATCH CABLE M/M GREEN GIGABIT MOLDED SNAGLESS PVC RJ45

Key Features

  • Meets category 6 cabling standards
  • Premium cabling for category 6, category 5e and category 5 applications
  • Length: 10-ft. Color: green Connectors: RJ45 male
  • Drastically reduce impedance and structural return loss compared to standard 100MHz wire
  • High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum
  • Feature molded connectors with integral strain relief
  • Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
  • PVC 4-pair stranded UTP
  • Deliver stable performance up to 550MHz/1 Gbps communication
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Tech Specs

10FT CAT6 PATCH CABLE M/M GREEN GIGABIT MOLDED SNAGLESS PVC RJ45 specifications
FeaturesStranded
Boot TypeMolded
ConductorCopper
ShieldingNo
Brand NameTripp Lite series
Cable TypeCategory 6
Jacket TypeCM
Cable Length10 ft
Color FamilyGreen
Jacket ColorGreen
ManufacturerEaton Corporation
Product NameCat.6 Patch Network Cable
Show all 38 specs
Product TypeNetwork Cable
Product ColorGreen
Product ModelN201-010-GN
Shipping Width10"
Contact PlatingGold
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height8"
Device SupportedNetwork Device
Material DetailsCopper - Conductor
Package Contents<ul> <li>Cat6 Patch Cable</li> <li>10-ft. Cat6 Green Gigabit Patch Cord Snagless Molded</li> </ul>
Product MaterialCopper
Country of OriginChina
Data Transfer Rate1 Gbit/s
American Wire Gauge24 AWG
Cable CharacteristicPatch Cable
Additional Information<ul><li>Drastically reduce impedance & structural return loss compared to standard 100MHz wire.</li><li>Integral strain relief</li><li>Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.</li></ul>
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberN201-010-GN
Certifications & Standards<ul><li>IEEE 802.3ab</li><li>IEEE 802.5</li><li>ANSI/EIA/TIA 568</li><li>ISO/IEC 11801</li><li>ETL (category 6 draft 11)</li></ul>
Connector Type on First EndRJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)4.80 oz
Connector on First End Details1 x RJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
