ATEN TECHNOLOGIES

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT

SKU: CN7948VPN: CE770

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT Key Features

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT Overview

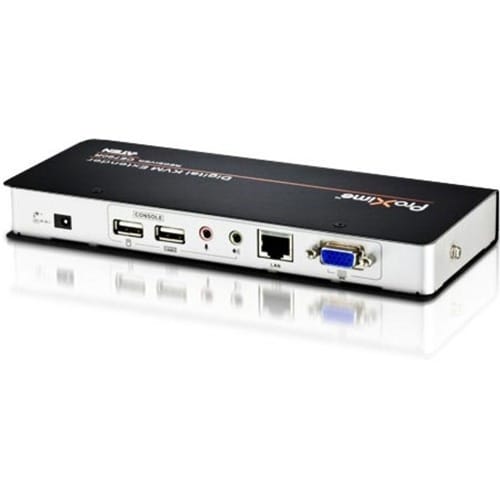

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT Tech Specs

1000FT USB CONSOLE EXTENDER WITH AUDIO SERIAL SUPPORT specifications
USBYes
VGAYes
HeadphoneYes
Brand NameATEN
MicrophoneYes
Form FactorRack-mountable
Graphic ModeWUXGA
ManufacturerATEN Technology, Inc
Product LineProXime
Product NameProxime CE770 KVM Console/Extender
Product TypeKVM Console/Extender
Product ModelCE770
Show all 32 specs
KVM TechnologyAnalog
Product FamilyProXime
Network (RJ-45)Yes
Package Contents<ul><li>CE770 KVM Console/Extender</li><li>2 x Power Adapter</li><li>1 x Rack Mount Kit</li><li>2 x Grounding Wires</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li><li>1 x USB KVM Cable (1.8m)</li></ul>
Country of OriginTaiwan
Number of USB Ports4
Number of VGA Ports2
Proprietary InterfaceYes
Connectivity TechnologyWired
Environmentally FriendlyYes
Manufacturer Part NumberCE770
Maximum Video Resolution1920 x 1200
Maximum Operating Distance984.25 ft
Manufacturer Website Addresshttp://www.aten.com/us/en/
Number of Computers Supported1
Receiver Weight (Approximate)1.06 lb
Number of Local Users Supported1
Number of Network (RJ-45) Ports2
Number of Remote Users Supported1
Transmitter Weight (Approximate)1.08 lb
