BLACK BOX CORPORATION

10/100BT 100BFX MM 5K ST MEDCON US PS

SKU: Z27722VPN: LMC401A

10/100BT 100BFX MM 5K ST MEDCON US PS

Key Features

  • Bring fiber to the desktop conveniently and cost-effectively.
  • Ultra compact, weighing only 2.5 ounces.
  • Tucks unobtrusively behind a PC.
  • Supports distances of up to 5 kilometers over multimode fiber.
  • USB-powered for portability, or use it with the included power adapter.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

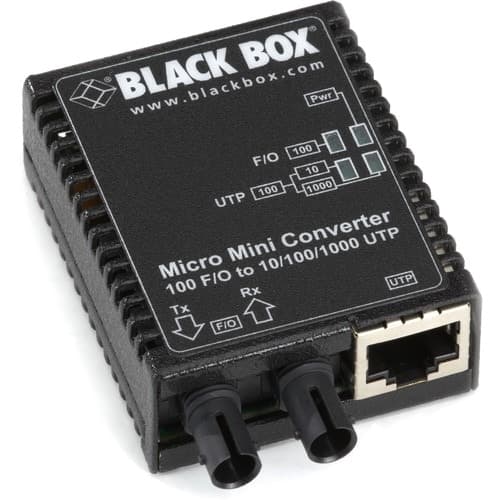

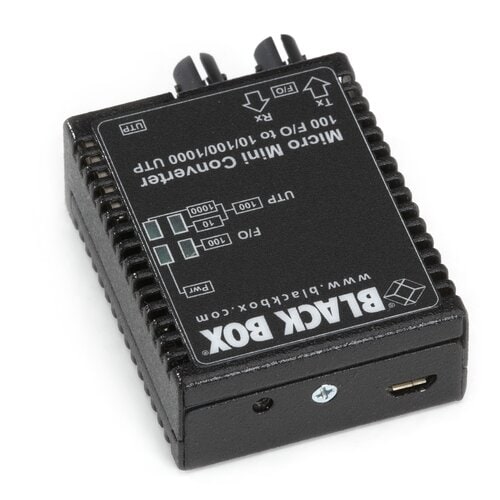

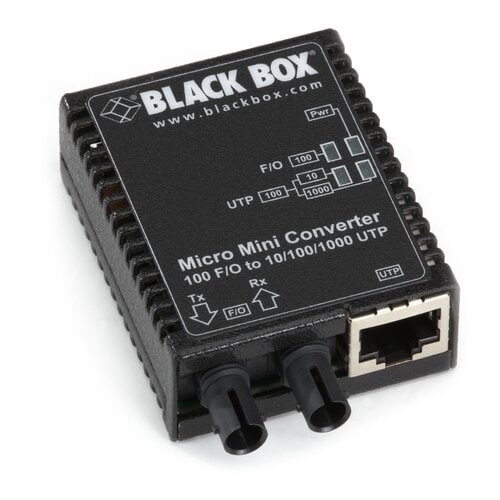

Bring fiber to the desktop and other tight spaces. The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter has an ST connector for connection to multimode fiber. Because it can be powered through a computer's USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port the media converter shuts down automatically when you turn off the computer which saves energy.

Tech Specs

10/100BT 100BFX MM 5K ST MEDCON US PS specifications
USBYes
Depth2.3"
Width1.8"
Height0.8"
Brand NameBlack Box
Form FactorWall Mountable
ManufacturerBlack Box Corporation
Power SourcePower Supply
Product LineMicro Mini
Product NameMicro Mini LMC401A Transcevier Media Converter
Product TypeTransceiver/Media Converter
ST Port TypeDuplex
Show all 32 specs
Product ModelLMC401A
TAA CompliantYes
Product FamilyMicro Mini
Management PortNo
Network (RJ-45)Yes
Package Contents<ul> <li>Micro Mini LMC401A Transcevier Media Converter</li> <li>Power Adapter</li> </ul>
Country of OriginUnited States
Network Technology10/100/1000Base-T
Number of ST Ports1
Ethernet TechnologyFast Ethernet
Fiber Mode SupportedMulti-mode
Media Type SupportedOptical Fiber
Weight (Approximate)2.50 oz
Total Number of Ports1
Environmentally FriendlyYes
Manufacturer Part NumberLMC401A
Maximum Distance Supported5 km
Fiber Optic Cable Wavelength1310 nm
Manufacturer Website Addresshttp://www.blackbox.com
Number of Network (RJ-45) Ports1

Datasheets & Resources
