10/100 FIBER MEDIA CONVERTER ST FAST FIBER TO ETHERNET CONVERTER MM
SKU: PG5606VPN: ET90110ST2
10/100 FIBER MEDIA CONVERTER ST FAST FIBER TO ETHERNET CONVERTER MM
Key Features

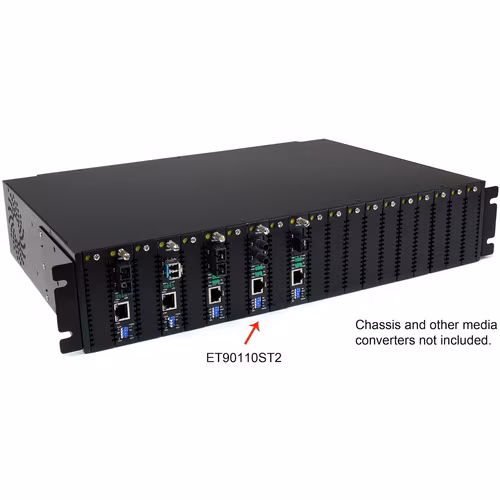

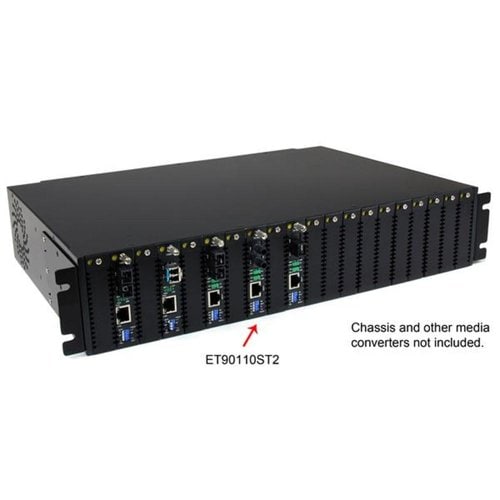

- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Supports a maximum fiber cable length of 2 km
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| DVI | No |
|---|---|
| USB | No |
| Depth | 6.1" |
| Width | 3.4" |
| Height | 0.9" |
| Brand Name | StarTech.com |
| Form Factor | Desktop |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Power Source | AC Adapter |
| Product Name | 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km |
| Product Type | Transceiver/Media Converter |
Show all 42 specsShow fewer
| ST Port Type | Duplex |
|---|---|
| Compatibility | <p>ETCHS2U Rackmount Chassis</p> |
| Digital Audio | No |
| Input Voltage | 12 V DC |
| Parallel Port | No |
| Product Color | Black |
| TAA Compliant | Yes |
| Management Port | No |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>10/100 Mbps Multi Mode Fiber Media Converter ST 2 km</li> <li>1 x Universal Power Adapter (NA/EU/UK/AU)</li> <li>1 x Grounding Screw</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Power Consumption | 19.20 W |
| Network Technology | 10/100Base-TX |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Ethernet Technology | Fast Ethernet |
| Plug/Connector Type | Type M |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 13.70 oz |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ET90110ST2 |
| Certifications & Standards | <ul><li>IEEE 802.3</li><li>IEEE 802.3u</li><li>FC</li><li>FCC</li></ul> |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Wavelength | 1310 nm |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 1 |
