STARTECH.COM

10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER SM

SKU: PG5607VPN: ET90110WDM2

10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER SM

Key Features

  • WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication
  • Kit includes local and remote converter module for a complete solution

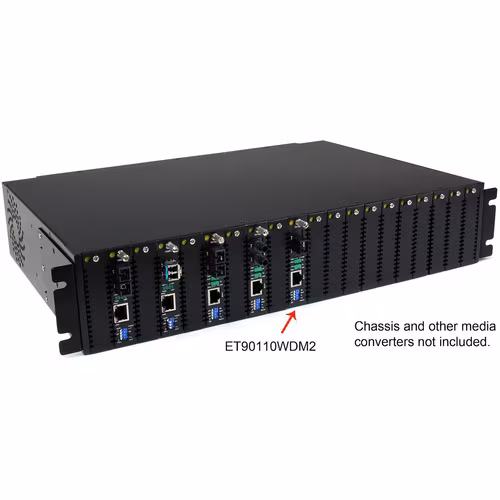

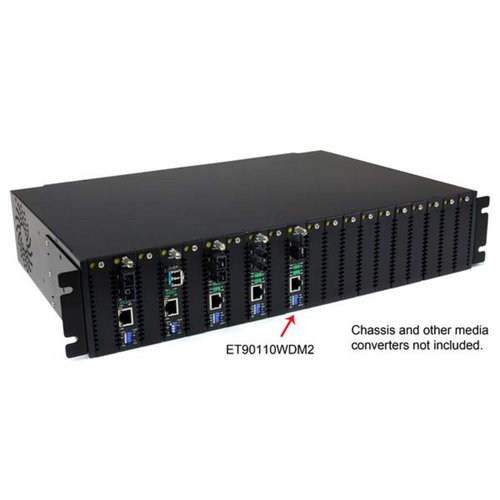

  • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
  • Maximum Fiber Cable Length of 20 Km
  • Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
  • Supports full or half-duplex operation
  • Easy to use and install
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

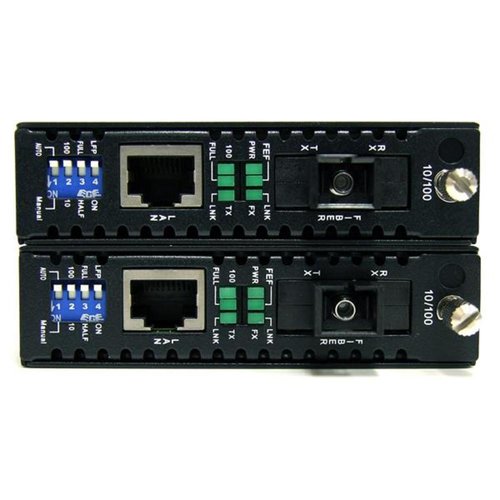

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi). The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling. The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER SM specifications
DVINo
USBNo
Depth6.3"
Width3.5"
Height1"
Brand NameStarTech.com
Form FactorRack-mountable
Color FamilyBlack
ManufacturerStarTech.com
Power SourceAC Adapter
Product Name10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Product TypeTransceiver/Media Converter
Show all 42 specs
SC Port TypeDuplex
Compatibility<p>ETCHS2U Rackmount Chassis</p>
Digital AudioNo
Input Voltage12 V DC
Parallel PortNo
Product ColorBlack
TAA CompliantYes
Management PortNo
Network (RJ-45)Yes
Package Contents<ul> <li>1 x Local Media Converter Unit</li> <li>1 x Remote Media Converter Unit</li> <li>2 x Universal Power Adapters (NA/EU/UK/AU)</li> <li>1 x Grounding Screw</li> <li>1 x Instruction Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Power Consumption19.20 W
Network Technology10/100Base-TX
Number of SC Ports1
Digital Audio/VideoNo
Ethernet TechnologyFast Ethernet
Plug/Connector TypeType M
Fiber Mode SupportedSingle-mode
Media Type SupportedOptical Fiber
Weight (Approximate)2.70 lb
Total Number of Ports2
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberET90110WDM2
Certifications & Standards<ul><li>IEEE 802.3</li><li>IEEE 802.3u</li><li>FC</li><li>FCC</li></ul>
Maximum Distance Supported20 km
Fiber Optic Cable Wavelength1550 nm
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports1
