10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER SM
SKU: PG5605VPN: ET90110SM302

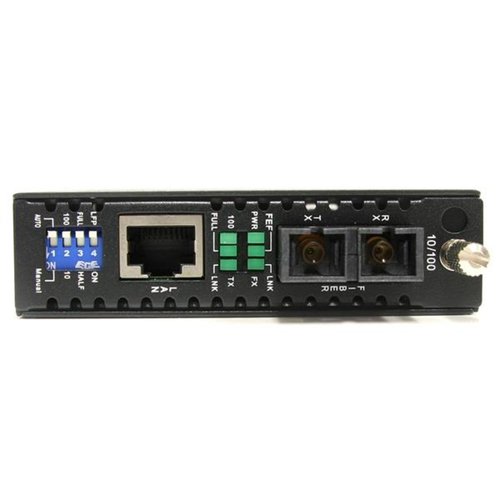

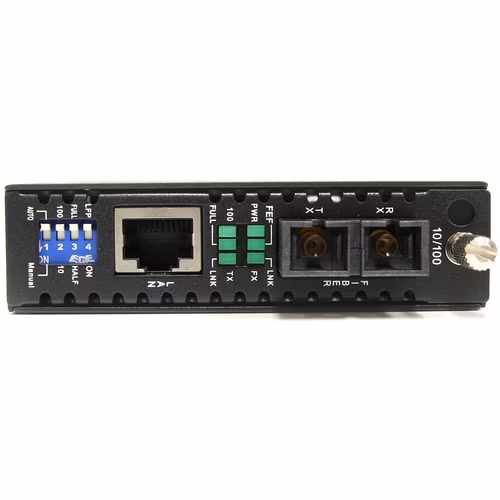

10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER SM
Key Features
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Desktop installation makes it ideal for deployments outside the wiring closet
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

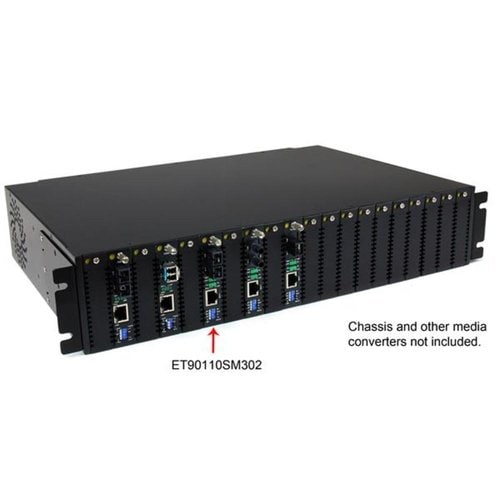

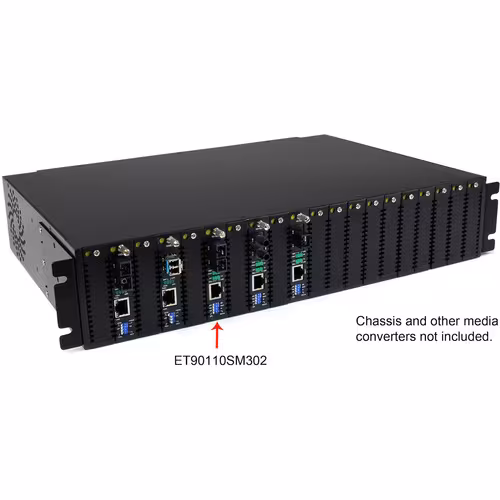

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles). A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| DVI | No |
|---|---|
| USB | No |
| Depth | 6.1" |
| Width | 3.4" |
| Height | 0.9" |
| Brand Name | StarTech.com |
| Form Factor | Desktop |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Power Source | AC Adapter |
| Product Name | 10/100 Mbps Single Mode Fiber Media Converter SC 30 km |
| Product Type | Transceiver/Media Converter |
Show all 42 specsShow fewer
| SC Port Type | Duplex |
|---|---|
| Compatibility | <p>ETCHS2U Rackmount Chassis</p> |
| Digital Audio | No |

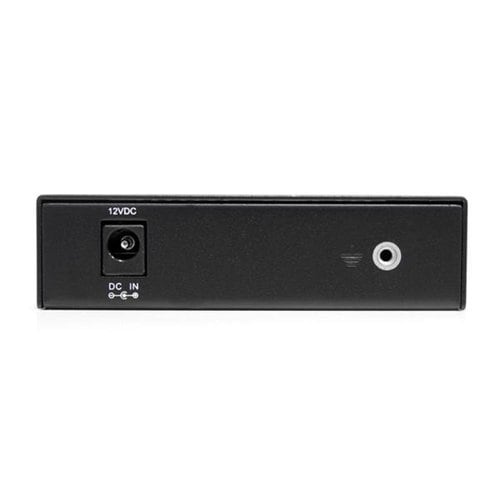

| Input Voltage | 12 V DC |
| Parallel Port | No |
| Product Color | Black |
| TAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>10/100 Mbps Single Mode Fiber Media Converter SC 30 km</li> <li>1 x Universal Power Adapter</li> <li>1 x Grounding Screw</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Power Consumption | 19.20 W |
| Network Technology | 100Base-FX |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Ethernet Technology | Fast Ethernet |
| Plug/Connector Type | Type M |
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 13.80 oz |
| Total Number of Ports | 2 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ET90110SM302 |
| Certifications & Standards | <ul><li>IEEE 802.3</li><li>IEEE 802.3u</li><li>FC</li><li>FCC</li></ul> |
| Maximum Distance Supported | 30 km |
| Environmental Certification | EU RoHS |
| Fiber Optic Cable Wavelength | 1310 nm |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 1 |
