10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER MM
SKU: BH3945VPN: MCM110SC2

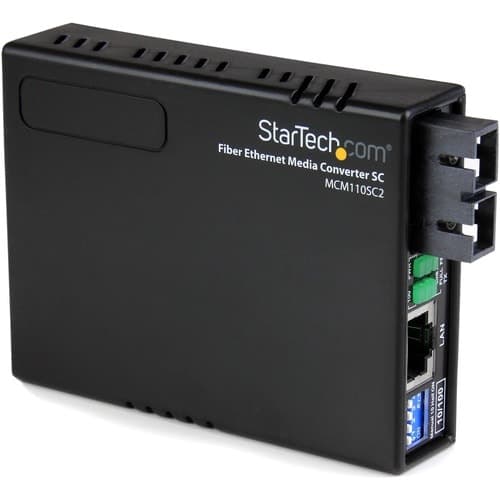

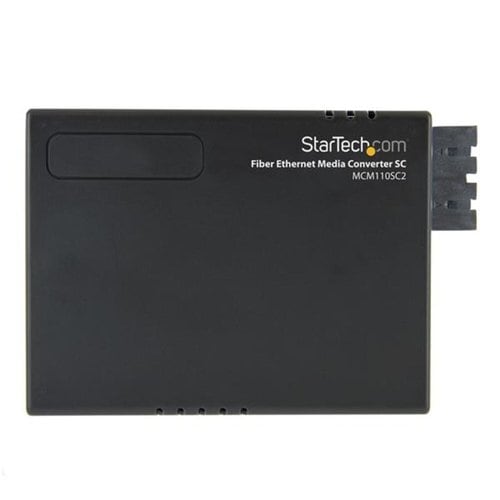

10/100 FIBER MEDIA CONVERTER SC FAST FIBER TO ETHERNET CONVERTER MM
Key Features
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Compatible with most 3com, Cisco, Lucent and Nortel networks
- Compact design
- Supports transparent Q-in-Q double tagged frames
- Supports Link Fault Pass through (LFP)
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports flow control (Pause)
- Provides switch configuration of half/full duplex transfer mode for FX port

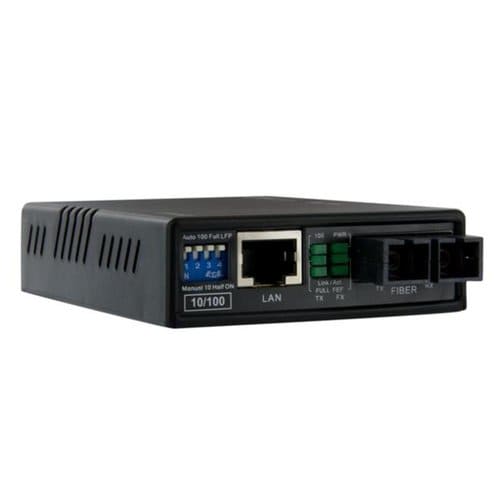

- LED Indicators for simple Ethernet/Fiber network link monitoring
- Forward 9K jumbo packets in converter mode
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone. The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability. This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| Depth | 3.7" |
|---|---|
| Width | 3" |
| Height | 0.8" |
| Brand Name | StarTech.com |
| Form Factor | External |
| Manufacturer | StarTech.com |

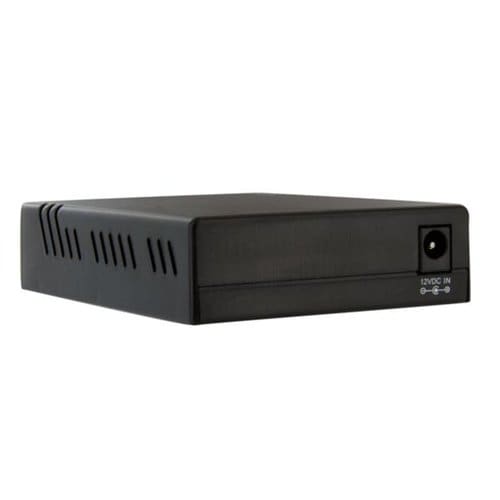

| Power Source | AC Adapter |
| Product Name | 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km |
| Product Type | Transceiver/Media Converter |
| SC Port Type | Duplex |
| TAA Compliant | Yes |
| Network (RJ-45) | Yes |
Show all 31 specsShow fewer
| Country of Origin | Taiwan |
|---|---|
| Packaged Quantity | 1 Each |
| Power Consumption | 2.40 W |
| Network Technology | 10Base-T |
| Number of SC Ports | 1 |
| Ethernet Technology | Fast Ethernet |
| Plug/Connector Type | Type M |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 3 oz |
| Total Number of Ports | 2 |
| Additional Information | <ul><li>Plug Type: M</li><li>Fiber Operating Mode: Half/Full-Duplex</li></ul> |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MCM110SC2 |
| Environmental Certification | EU RoHS |
| Fiber Optic Cable Wavelength | 1310 nm |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 1 |
