LANTRONIX - IOT
10/100/1000B-T TO 100B-FX ION RJ-45 TO 100BASE-X SFP SLOT EMPTY
SKU: DL6204VPN: S2220-1040-NA
10/100/1000B-T TO 100B-FX ION RJ-45 TO 100BASE-X SFP SLOT EMPTY
Key Features
- As a remotely managed device, can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chass
- Advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation
- Offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

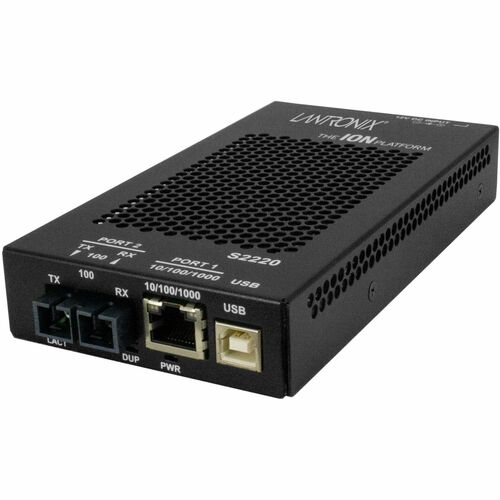

The ION S2220 is a stand-alone managed Network Interface Device NID that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. NDAA Compliant, TAA Compliant
Tech Specs
| USB | Yes |
|---|---|
| Depth | 6.5" |
| Width | 3.3" |
| Height | 1" |
| Brand Name | Lantronix |
| Form Factor | Standalone |
| Manufacturer | Lantronix, Inc |
| Power Source | Power Supply |
| Product Name | S2220-1040 Media Converter |
| Product Type | Transceiver/Media Converter |
| Compatibility | <p>ION Platform Chassis</p> |
| Product Model | S2220-1040 |
Show all 28 specsShow fewer
| TAA Compliant | Yes |
|---|---|
| Product Family | S2220 |
| Product Series | S2220 |
| Network (RJ-45) | Yes |
| Country of Origin | Taiwan |
| Network Technology | 100Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Weight (Approximate) | 2 lb |
| Total Number of Ports | 1 |
| Manufacturer Part Number | S2220-1040-NA |
| Certifications & Standards | EN55022 class A, EN55024, UL60950, CE Mark |
| Manufacturer Website Address | http://www.transition.com |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of Expansion Slots | 1 |
