ATEN TECHNOLOGIES
1-LOCAL 1-REMOTE USB VGA MINI USB KVM EXTENDER CAT5
SKU: LK4987VPN: CE100
1-LOCAL 1-REMOTE USB VGA MINI USB KVM EXTENDER CAT5
Key Features
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality - up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

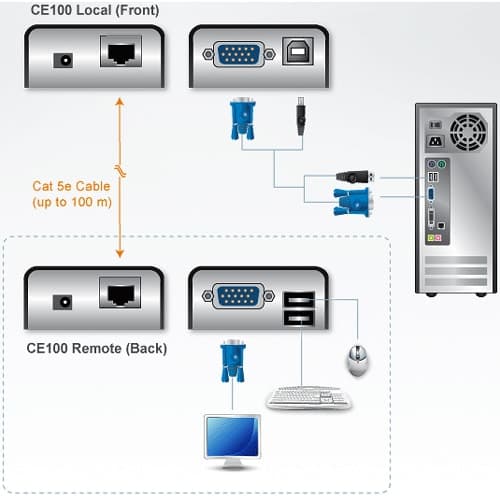

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
Tech Specs
| USB | Yes |
|---|---|
| VGA | Yes |
| Frequency | 60 Hz |
| Brand Name | ATEN |
| Graphic Mode | WUXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Name | KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Input Voltage | 5 V DC |
| Product Model | CE100 |
| KVM Technology | Analog |
| Network (RJ-45) | Yes |
Show all 24 specsShow fewer
| Package Contents | <ul><li>KVM Console/Extender</li><li>1 x USB/VGA Cable</li><li>2 x Grounding Wires</li><li>1 x Power Adapter</li><li>1 x Mounting Kit</li><li>1 x User Guide</li></ul> |
|---|---|
| Country of Origin | China |
| Number of USB Ports | 3 |
| Number of VGA Ports | 2 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE100 |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 330 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
