VISIONTEK

VT4800 TB3/USBC DOCKING STATION

SKU: 7FL512VPN: 901292

VT4800 TB3/USBC DOCKING STATION

Key Features

  • Universal Compatibility for USB-C & TB3
  • Supports up to 2 external displays
  • 2x SuperSpeed USB 3.1 Ports
  • 2x SuperSpeed USB 3.0 Ports
  • 1x USB Type-C Port
  • 1x Thunderbolt™ 3 Port
  • Power Delivery up to 60W
  • Kensington™ Security Lock Slot
  • Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Increase productivity with our plug and play, power delivery docking station, the VisionTek VT4800 Thunderbolt™ 3 USB-C Docking Station with Power Delivery for Windows™ and Mac™ laptop systems. With a single USB-C or TB3 connection, you can connect up to two external monitors, transfer files and data at up to 10Gbps, play audio, charge mobile devices and your system.

  • Universal Compatibility - Windows™ or Mac™, the VT4800 is compatible with USB-C and Thunderbolt™ 3 systems, making this the ideal docking station for mixed system environments.
  • Connect Two External Displays - Increase productivity by expanding your workspace with up to two additional displays. DP 1.4 supports resolutions up to 4096 x 2160 @60Hz. Includes display support for HBR3(8.1GHz) that is backwards compatible with HBR2(5.4GHz) and HBR(2.7GHz). 8K resolution support for single external display connection, perfect for Dell 8K displays.
  • Power Delivery up to 60W - Easily charge any Thunderbolt™ 3 or USB-C compatible laptop, mobile device or peripheral.
  • Thunderbolt™ 3 Titan Ridge - Utilize the fastest port on the market today, making this dock an essential addition for multitasking.
  • 9-in-1 Dock with 5 USB Ports - The VT4800 was designed to be compatible with as many systems as possible by including many of the most commonly needed ports in one dock.

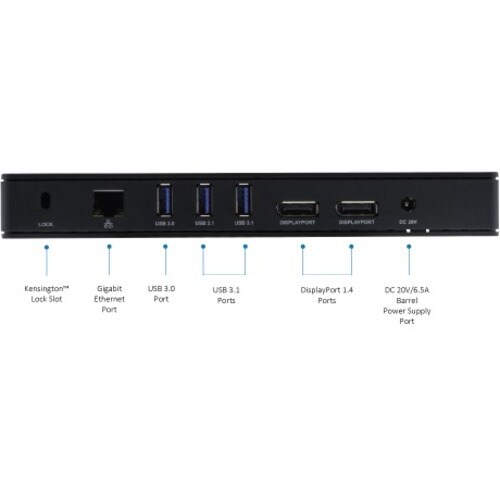

    • 2x DP ports let you connect two external displays to increase your system workspace.
    • 2x USB 3.0 ports let you connect external storage, full size keyboard and mouse, or mobile devices while supporting data transfer rates of 5Gbps.
    • 2x USB 3.1 ports provide even more peripheral connection options and support data transfer rates of 10Gbps.
    • 1x USB-C port offers data transfer rates of up to 10Gbps.
    • 1x Thunderbolt™ 3 port offers up to 60W of Power Delivery and data transfer rates of up to 40Gbps.
    • Combination 3.5mm audio in/out port gives you a single connection option for music or video conference listening.
    • RJ45Ethernet with 10/100/1000 Mbps support keeps you wired to the internet, avoiding Wi-Fi connection or security concerns.

Tech Specs

VT4800 TB3/USBC DOCKING STATION specifications
Depth3.27"
Width8.27"
Height1.28"
Brand NameVisionTek
USB Type-CYes
DisplayPortYes
ThunderboltYes
ManufacturerVisionTek Products, LLC
Package TypeRetail
Product NameVT4800 Docking Station
Product TypeDocking Station
CompatibilityThunderbolt 3 and USB-C Windows and Mac Systems
Show all 32 specs
Product ModelVT4800
Host InterfaceUSB 3.1 Type C
Network (RJ-45)Yes
Device SupportedNotebook
Limited Warranty3 Year
Package Contents<ul> <li>VT4800 Docking Station</li> <li>1 x 130W Power Adapter</li> <li>1 x Thunderbolt™ Cable (27.5"/.7m)</li> <li>1 x User Manual</li> </ul>
Country of OriginChina
Packaged Quantity1
USB Type-C Detail1x USB-C 3.1 Port
Weight (Approximate)10.56 oz
Connectivity TechnologyWired
Number of USB 3.0 Ports2
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Kensington Security SlotYes
Manufacturer Part Number901292
Total Number of USB Ports5
Manufacturer Website Addresshttp://www.visiontek.com
Maximum Power Supply Wattage60 W
Headphone/Microphone Combo PortYes
