VIDEO WALL FRAMING SYSTEM FOR FLAT PANELS UP TP 160LBS

SKU: PR2287VPN: LMV

In Stock

$914.74$489.15

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Makes it quick, convenient, and simple to adjust and reposition connectors in a secure mounting system
Sustains a maximum load capacity of 160 lb
Compatible with the screen size of 63"
Cable Management feature for maximum efficiency and convenience

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

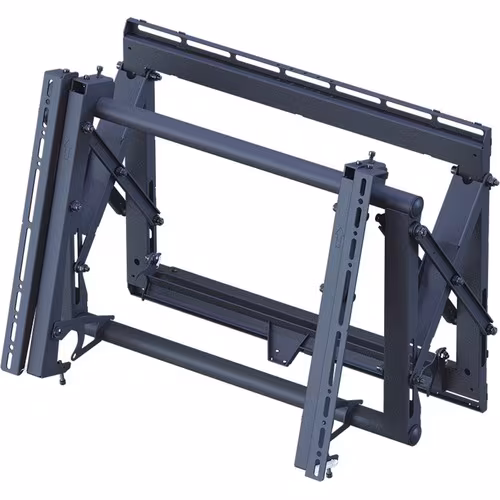

The LMV is a customizable video wall framing system for flat-panels weighing up to 160 lb./72 kg with a mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.

Tech Specs

VIDEO WALL FRAMING SYSTEM FOR FLAT PANELS UP TP 160LBS specifications
Depth	4.88"
Width	28.49"
Height	19"
Features	Tilt
Brand Name	Premier Mounts
Manufacturer	Premier Mounts
Product Name	LMV Video Wall Framing System
Product Type	Mounting Arm
Compatibility	<ul><li>LCD TV</li><li>Plasma TV</li></ul>
Product Color	Black
Product Model	LMV
Device Supported	Flat Panel Display

Show all 26 specs

Mounting Pattern	200 x 200
Package Contents	<ul><li>1 x Wall Plate</li><li>2 x Mounting Bracket</li><li>1 x Security Barrel</li><li>1 x Thread Depth Indicator</li><li>6 x M6 Steel Stud Anchors</li><li>6 x 5/16" Concrete Wedge Anchors</li><li>Mounting Hardware</li></ul>
Country of Origin	Taiwan
Packaged Quantity	1
Weight (Approximate)	45 lb
Maximum Load Capacity	160 lb
VESA Mount Compatible	Yes
Additional Information	<ul><li>Extension: 12.03 inch (306 mm)</li><li>Spring loaded locking mechanism provides quick release from locked position, press in and the mount will push the display forward</li><li>Model-specific spacers are available for most video wall style flat-panel displays to dramatically cut down the installation time</li><li>Scissor design and compact mounting arms allow the LMV to be pushed in and pulled out in a straight, smooth motion</li><li>Patent pending, top-adjustable display mounting brackets provide alignment along the x, y and z axis to ensure displays line up and remain level</li><li>Click-It locking feature makes an audible sound when a display is locked in its home position</li></ul>
Manufacturer Part Number	LMV
Maximum Adjustable Depth	12"
Manufacturer Website Address	http://www.premiermounts.com
Number of Displays Supported	1
Maximum Screen Size Supported	63"
Minimum Screen Size Supported	37"
