EATON TRIPP LITE SERIES PRO AV

USB-C TO VGA GRAPHICS ADAPTER DP ALT MODE DUAL-MONITOR 1080P

SKU: 1R0567VPN: U444-06N-VGA-AM

USB-C TO VGA GRAPHICS ADAPTER DP ALT MODE DUAL-MONITOR 1080P

Key Features

  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Extend video to a second display or duplicate one video on both
  • Supports HD video resolutions up to 1080p (@ 60 Hz)
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • No external power supply or drivers required
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

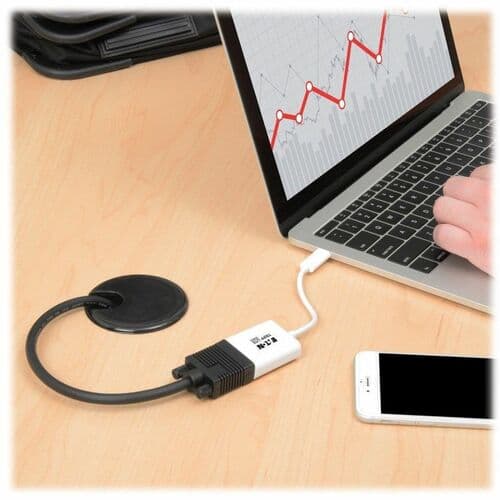

The U444-06N-VGA-AM USB 3.1 Gen 1 USB-C to VGA Adapter (M/F) helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a VGA-enabled television, monitor or projector. It's an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 1080p.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary.

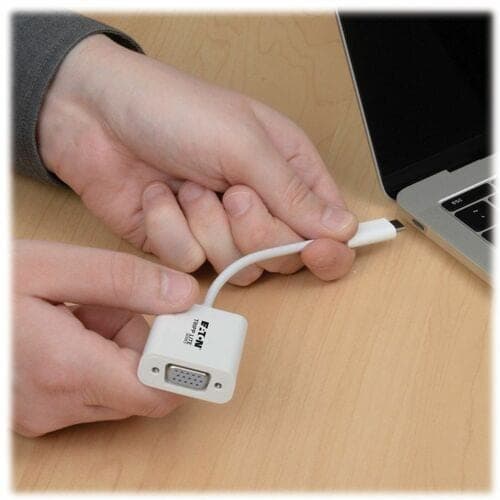

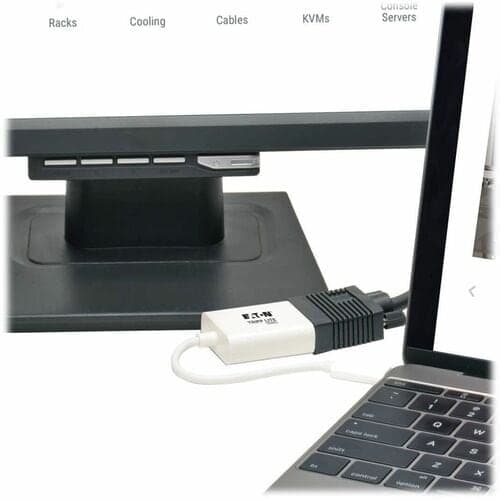

The plug-and-play U444-06N-VGA-AM requires no software, drivers or external power. Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the VGA port to your display using a VGA cable (sold separately).

The U444-06N-VGA-AM supports HD video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 36-bit Deep Color (12 bits per channel) and VGA transfer rates up to 6.75 Gbps (2.25 Gbps per channel). It also supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps.

Tech Specs

USB-C TO VGA GRAPHICS ADAPTER DP ALT MODE DUAL-MONITOR 1080P specifications
FeaturesReversible
ShieldingYes
Brand NameTripp Lite series
Cable TypeUSB/VGA
Cable Length6"
Color FamilyWhite
ManufacturerEaton Corporation
Product NameU444-06N-VGA-AM USB 3.1 Gen 1 USB-C to VGA Adapter (M/F)
Product TypeVideo Cable
Product ColorWhite
Product ModelU444-06N-VGA-AM
Shipping Width4.72"
Show all 30 specs
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height0.79"
Device SupportedVideo Device
Package Contents<ul> <li>U444-06N-VGA-AM USB/VGA Video Cable</li> <li>Quick Start Guide</li> </ul>
Connector PlatingNickel
Country of OriginVietnam
Data Transfer Rate5 Gbit/s
Supported Resolution1920 x 1080
Weight (Approximate)0.06 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberU444-06N-VGA-AM
Connector Type on First EndUSB 3.1 (Gen 1) Type C - Male
Connector Type on Second EndHD-15 - Female
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)1.44 oz
Connector on First End Details1 x USB 3.1 (Gen 1) Type C - Male
Connector on Second End Details1 x 15-pin HD-15 - Female
